M 1227 E (1696819-00) - Simplicity 27" Snow Thrower, 11.5hp Auger Housing Group Parts Diagram

27" Snow Thrower, 11.5hp

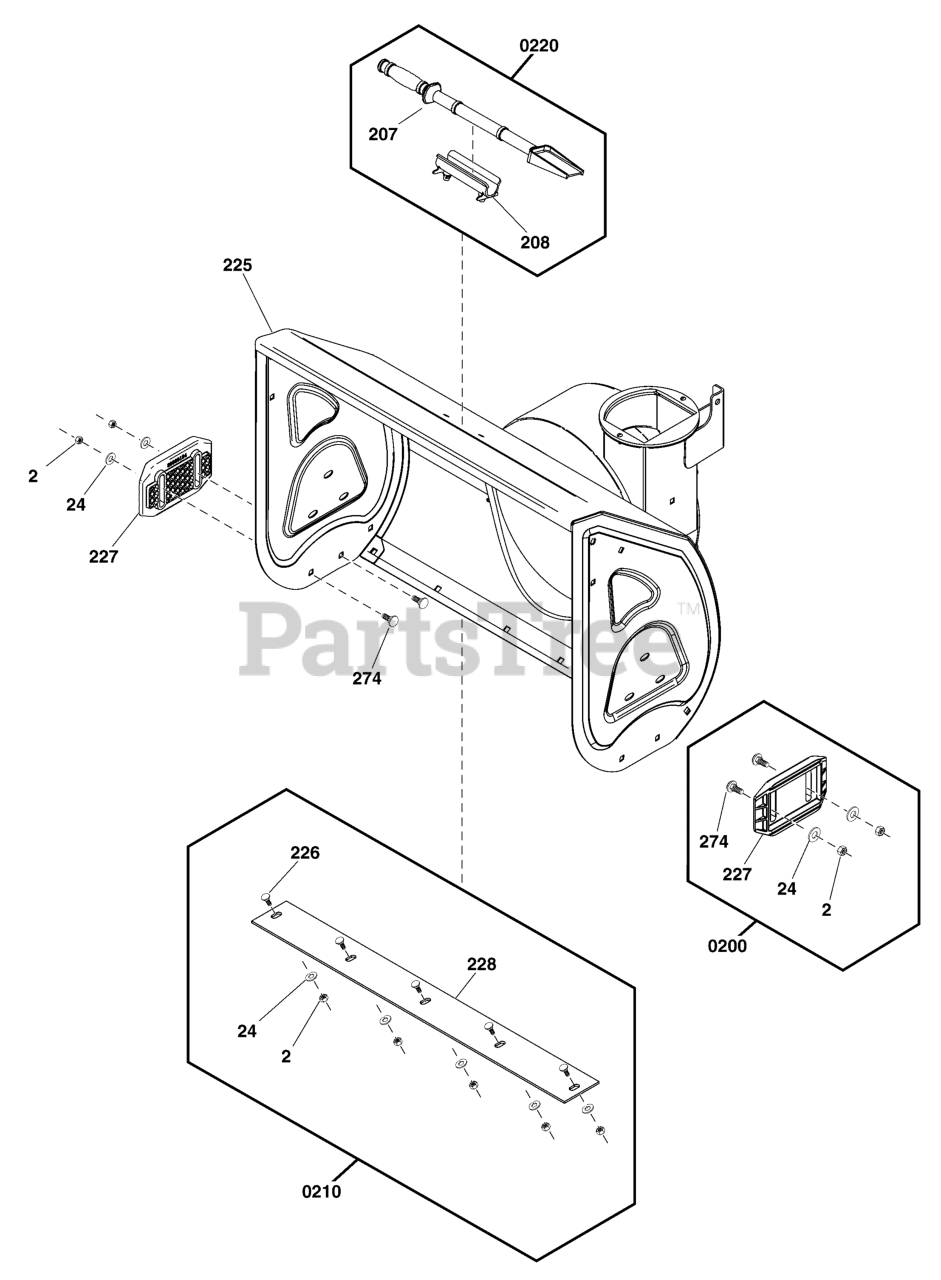

Auger Housing Group Parts Diagram

  • Title

225

AUGER HOUSING, 27", Orange

Note: (Refer to Note:*)

$

$

Not available

0200

Simplicity 84003710

KIT, Skid Shoe

Note: (Incl. Ref. Nos. 2, 24, 227, 274)

$45.99

$

In Stock, Qty 7

0

2

NUT, Lock, M8

$

$

Not available

24

WASHER, 8x22x2, Flat

$

$

Not available

227

SHOE, Skid, Reversible

$

$

Not available

274

BOLT, Carriage, M8 X 25

$

$

Not available

0210

Simplicity 84003859

KIT, Scraper Bar

Note: (Incl. Ref. Nos. 2, 24, 226, 228)

$52.99

$

Usually ships in 2-12 days

0

2

NUT, Lock, M8

$

$

Not available

24

WASHER, 8x22x2, Flat

$

$

Not available

226

BOLT, Carriage, M8 X 18

$

$

Not available

228

BLADE, Scraper, 27"

$

$

Not available

0220

Simplicity 707549

KIT, CLEANOUT BRUSH STICK

Note: (Incl. Ref. Nos. 207, 208)

$28.99

$

Usually ships in 2-12 days

0

207

SHOVEL, Cleanout

$

$

Not available

208

CLAMP, Cleanout

$

$

Not available
