M 1227 E (1696235-01) - Simplicity 27" Snow Thrower, 11.5hp Engine & Frame Group - 11.5TP Parts Diagram

27" Snow Thrower, 11.5hp

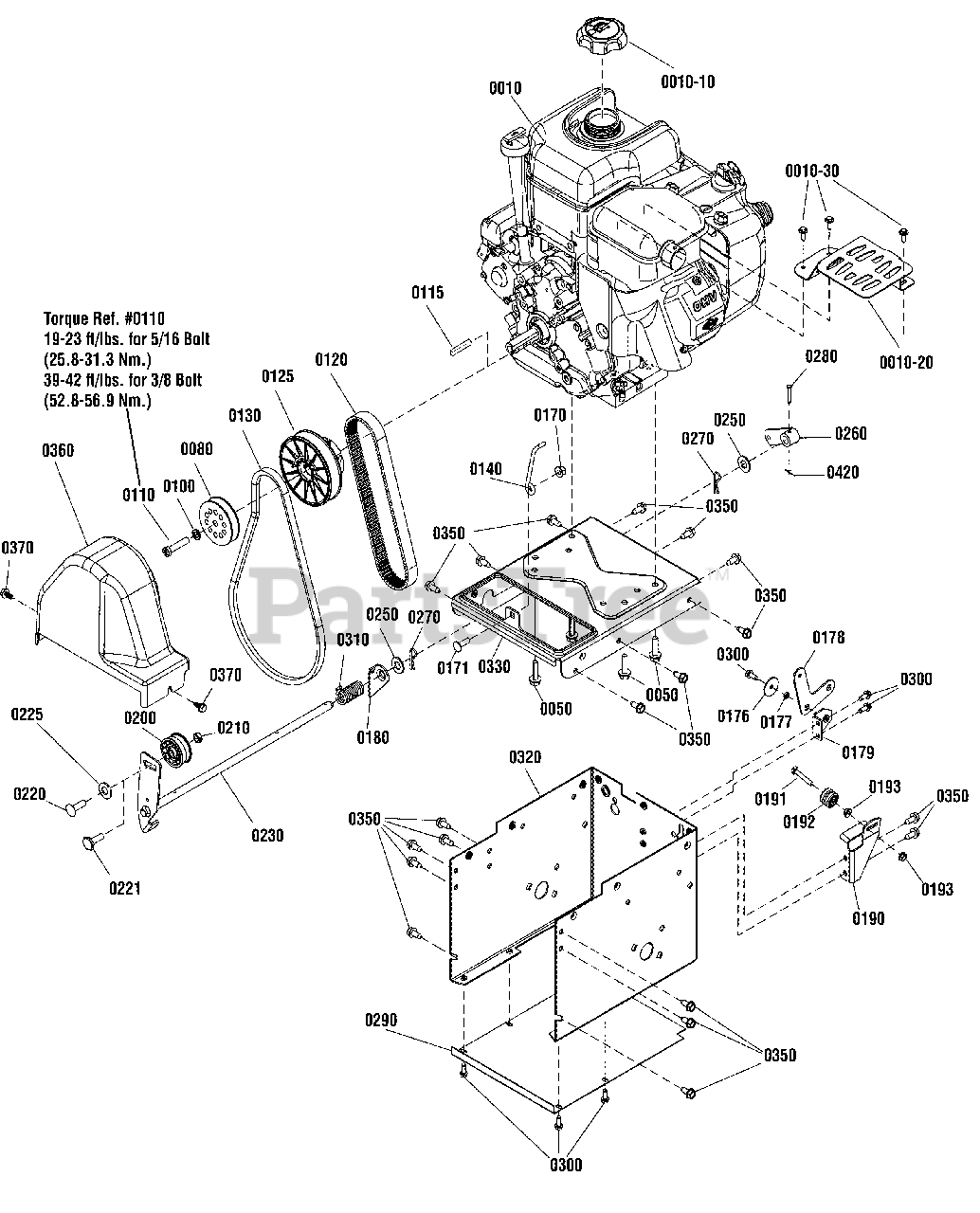

Engine & Frame Group - 11.5TP Parts Diagram

  • Title

0010

Simplicity 15C114-0153-F8

* ENGINE, 11.5TP Briggs & Stratton

Note: (Engine Model: 15C114-0153-F8)

$

$

Not available

0010

Simplicity 15C107-0034-F8

* ENGINE, 11.5TP Briggs & Stratton

Note: (Engine Model: 15C107-0034-F8)

$

$

Not available

0010-10

Simplicity 792647

* CAP, Fuel
(Superseded to 795027)

$10.99

$

In Stock, Qty 20+

0

0010-20

Simplicity 797003

* GUARD, Muffler, Plate

$45.99

$

Usually ships in 2-12 days

0

0010-30

Simplicity 699854

* SCREW, Muffler Guard

$3.99

$

In Stock, Qty 7

0

0050

Simplicity 75246GS

SCREW, Trilobular, 3/8-16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1737509YP

PULLEY ASSEMBLY

$

$

Not available

0100

Simplicity 703116

LOCKWASHER, Split, 5/16

$3.49

$

In Stock, Qty 20+

0

0110

Simplicity 1750393YP

CAPSCREW, Hex Head, 5/16-24 x 1-3/4, G8

$4.49

$

Usually ships in 2-12 days

0

0115

Simplicity 2157427SM

KEY, Parallel, 3/16 x 3/16 x 1-1/4

$5.49

$

In Stock, only 1 left!

0

0120

Simplicity 1737220YP

V-BELT, Multi-Speed

$49.99

$

In Stock, only 3 left!

0

0125

Simplicity 1733968YP

PULLEY ASSEMBLY

$76.99

$

Usually ships in 2-12 days

0

0130

Simplicity 585416MA

BELT, Auger, V4L 38.10 MF 05-10B

$22.99

$

In Stock, Qty 20+

0

0140

Simplicity 1737377YP

STOP, Belt

$11.99

$

In Stock, only 1 left!

0

0170

Simplicity 703222

NUT, Hex KEPS, 5/16-18

$5.99

$

In Stock, only 2 left!

0

0171

Simplicity 1931335SM

BOLT, Carriage, 5/16-18 x 1, G5
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0176

Simplicity 703136

WASHER, Flat, 1/4

$3.99

$

In Stock, only 1 left!

0

0177

Simplicity 703124

SPACER, 1/4 X 3/16

$3.99

$

Usually ships in 2-12 days

0

0178

Simplicity 1737329YP

BELLCRANK

$29.99

$

Usually ships in 2-12 days

0

0179

Simplicity 1737328AYP

BRACKET, Lower

$11.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1737297YP

BRACKET, Support, Auger Idler

$9.49

$

Usually ships in 2-12 days

0

0190

Simplicity 1737347BMYP

BRACKET, Guide Wheel

$13.99

$

Usually ships in 2-12 days

0

0191

Simplicity 703234

CAPSCREW, Hex Head, 1/4-20 x 1-1/2, G5

$4.49

$

In Stock, only 4 left!

0

0192

Simplicity 579860MA

SPOOL CABLE, Auger

$5.99

$

In Stock, Qty 7

0

0193

Simplicity 703233

NUT, Serrated Flange, 1/4-20, G5

$4.49

$

In Stock, Qty 5

0

0200

Simplicity 318372MA

IDLER, Plastic Ball Bearing

$55.99

$

Usually ships in 2-12 days

0

0210

Simplicity 703230

NUT, Centerlock, 3/8-16

$4.99

$

In Stock, Qty 9

0

0220

Simplicity 703227

BOLT, Carriage, 3/8-16 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

0220

Simplicity 703227

BOLT, Carriage, 3/8-16 x 1-1/4

Note: (Use with Ref. 225 Washer)

$4.99

$

Usually ships in 2-12 days

0

0221

Simplicity 1960032SM

SCREW, Hex Head, 3/8-16 x 1-1/4

$5.49

$

In Stock, only 1 left!

0

0225

Simplicity 1670971SM

WASHER, Thrust, 1/2

Note: (Use with Ref. 0220 Bolt)

$4.49

$

In Stock, Qty 6

0

0230

Simplicity 1737296YP

IDLER, Auger
(Superseded to 1756662YP)

$57.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1960027SM

WASHER, Flat, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Simplicity 1733451SM

ARM, Control

$20.99

$

In Stock, only 3 left!

0

0270

Simplicity 703300

PIN, Hair, 3/32

$3.99

$

In Stock, Qty 20+

0

0280

Simplicity 703313

PIN, Clevis

$4.99

$

In Stock, Qty 5

0

0290

Simplicity 1737221BMYP

PANEL, Bottom

$43.99

$

Usually ships in 2-12 days

0

0300

Simplicity 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0310

Simplicity 1737350YP

SPRING, Torsion

$7.99

$

In Stock, only 1 left!

0

0320

Simplicity 1737106CYP

FRAME BOX

$119.99

$

Usually ships in 2-12 days

0

0330

Simplicity 1754138CYP

PLATE, Engine Mount

$42.99

$

Usually ships in 2-12 days

0

0350

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

0360

Simplicity 1750551YP

COVER, Belt

$26.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1751355YP

SCREW, Hex Washer Head, Tap, 1/4-20 x 3/4

$6.49

$

Usually ships in 2-12 days

0

0420

Simplicity 7023590SM

PIN, Cotter, Self Lock, 1/4

$3.99

$

In Stock, Qty 20+

0
