M 115-38 (13BC77LF058) - Murray 38" Lawn Tractor (2018) Hood & Grille Parts Diagram

38" Lawn Tractor

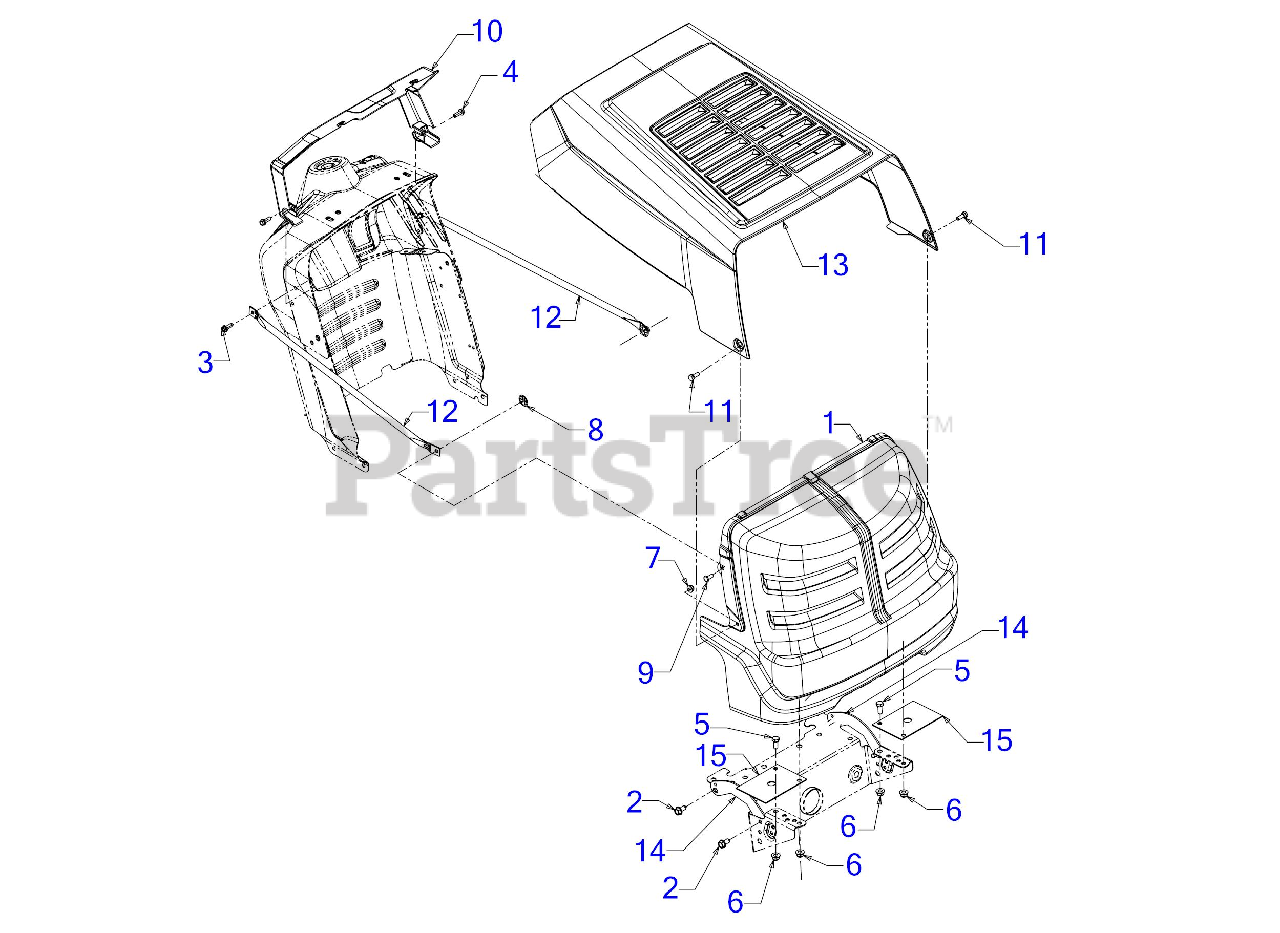

Hood & Grille Parts Diagram

  • Title

1

MTD 931-04472A

GRILLE ASSEMBLY

$81.99

$

Usually ships in 3-6 days

0

1

MTD 726-0201

PUSH NUT

Note: (Not Shown)

$6.99

$

In Stock, only 2 left!

0

1

MTD 938-04015

SHOULDER SCREW

Note: (Not Shown)

$6.49

$

Usually ships in 3-6 days

0

2

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0642

SCREW 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0895

SCREW 1/4-15 x .750

$6.49

$

In Stock, only 4 left!

0

5

MTD 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

8

MTD 926-04012

PUSH ON NUT
(Superseded to 726-04012)

$

$

Not available

9

MTD 728-0162

FLAT HEAD RIVET

$4.99

$

Usually ships in 3-6 days

0

10

MTD 731-05012B

DASH COLLAR

$17.99

$

Usually ships in 3-6 days

0

11

MTD 938-0952A

SHOULDER SCREW

$7.49

$

In Stock, Qty 10

0

12

MTD 749-04220-0637

GRILLE SUPPORT ROD

$26.99

$

Usually ships in 3-6 days

0

13

MTD 783-04608

HOOD- 0 STYLE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-04608-0638

HOOD- 0 STYLE - MTD/TROY-BILT RED (0638)

$274.99

$

Usually ships in 3-6 days

0

MTD 783-04608-0662

HOOD- 0 STYLE - OYSTER GRAY (0662)

$255.99

$

Usually ships in 3-6 days

0

MTD 783-04608-0674

HOOD- 0 STYLE - YARDMAN YELLOW (0674)

$255.99

$

Usually ships in 3-6 days

0

MTD 783-04608-0691

HOOD- 0 STYLE - BLACK JACK (0691)

$255.99

$

Usually ships in 3-6 days

0

MTD 783-04608-0709

HOOD- 0 STYLE - MASTERCRAFT GREEN (0709)

$255.99

$

Usually ships in 3-6 days

0

MTD 783-04608-4062

HOOD- 0 STYLE - COOL GRAY (4062)

$221.99

$

Usually ships in 3-6 days

0

$221.99

$

Usually ships in 3-6 days

0

14

MTD 783-05027-0637

PIVOT SUPPORT BRACKET

$20.99

$

Usually ships in 3-6 days

0

15

MTD 783-06682-0637

SUPPORT BRACKET

$3.99

$

Usually ships in 3-6 days

0
