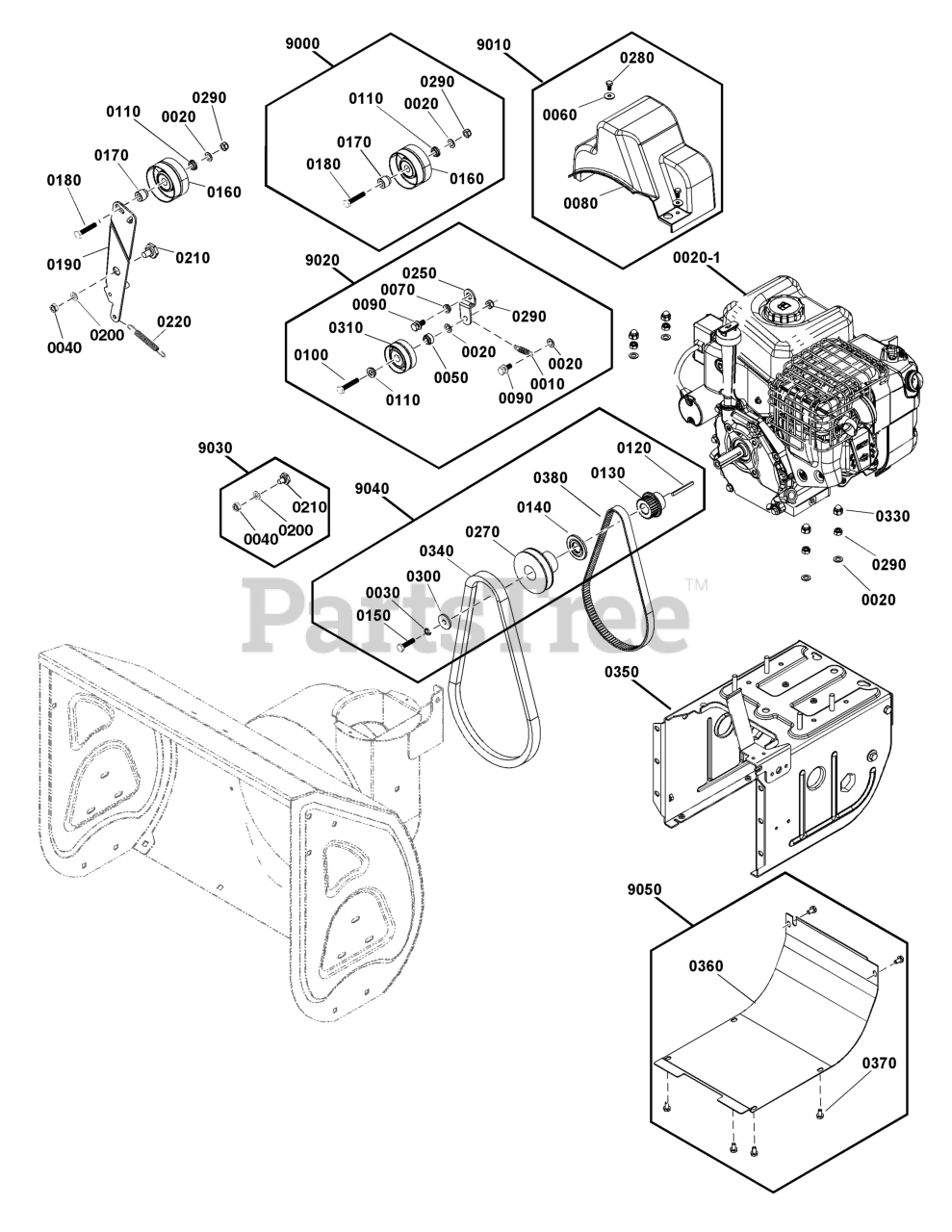

M 1024E (1697440-01) - Snapper 24" Snow Thrower, 9.5hp (2021) Engine & Frame Group Parts Diagram

24" Snow Thrower, 9.5hp

Engine & Frame Group Parts Diagram

  • Title

0020-1

Snapper 13A137-0004-F1

**ENGINE, 9.5 Gross TP Briggs & Stratton

Note: (Engine Model: 13A137-0004-F1) (Refer to Note: *)

$

$

Currently unavailable

0020

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

0190

IDLER, Auger

$

$

Not available

0220

Snapper 84003839

SPRING, Idler Pulley

$4.49

$

Usually ships in 2-12 days

0

0290

NUT, Lock, M8

$

$

Not available

0330

Cap, Nut, M8

$

$

Not available

0350

MOTOR BOX ASSEMBLY, Red

$

$

Not available

9000

Snapper 770807

KIT, Idler Pulley, Tension Plate

Note: (Incl. Ref. Nos. 0020, 0110, 0160, 0170, 0180, 0290)

$37.99

$

Usually ships in 2-12 days

0

0020

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

0110

SPACER, Idler Pulley

$

$

Not available

0160

PULLEY, Idler

$

$

Not available

0170

SPACER, Sleeve, Idler Pulley

$

$

Not available

0180

SCREW, Hex Head, M8 X 45

$

$

Not available

0290

NUT, Lock, M8

$

$

Not available

9010

Snapper 84003838

KIT, Belt Cover

Note: (Incl. Ref. Nos. 0060, 0080, 0280)

$42.99

$

Usually ships in 2-12 days

0

0060

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

0080

COVER, Belt

$

$

Not available

0280

SCREW, Hex Head, M6 X 12

$

$

Not available

9020

Snapper 770795

KIT, Idler Pulley, Traction Drive

Note: (Incl. Ref. Nos. 0010, 0020, 0050, 0070, 0090, 0100, 0110, 0250, 0290, 0310)

$46.99

$

Usually ships in 2-12 days

0

0010

SPRING, Idler

$

$

Not available

0020

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

0050

SPACER, Idler Pulley

$

$

Not available

0070

SPACER, Idler Plate, Small

$

$

Not available

0090

SCREW, Hex Flange Head, M8 X 20

$

$

Not available

0100

SCREW, Hex Head, M8 X 40

$

$

Not available

0110

SPACER, Idler Pulley

$

$

Not available

0250

BRACKET, Idler

$

$

Not available

0290

NUT, Lock, M8

$

$

Not available

0310

PULLEY, Idler

$

$

Not available

9030

Snapper 707565

KIT-HARDWARE, IDLER BRACKET

Note: (Incl. Ref. Nos. 0040, 0200, 0210)

$8.99

$

Usually ships in 2-12 days

0

0040

NUT, Lock, M10

$

$

Not available

0200

WASHER, Flat, 10 X 20 X 2

$

$

Not available

0210

SCREW, Hex Head, M10 X 13

$

$

Not available

9040

Snapper 84003841

KIT, Drive Pulley, Traction Drive

Note: (Incl. Ref. Nos. 0030, 0120, 0130, 0140, 0150, 0270, 0300, 0340, 0380)

$110.99

$

Usually ships in 2-12 days

0

0030

WASHER, Lock, M8

$

$

Not available

0120

Snapper 84004762

KEY, Flat, 5 X 4.7 X 50

$3.49

$

Usually ships in 2-12 days

0

0130

PULLEY, Drive

$

$

Not available

0140

SPACER, Belt Wheel

$

$

Not available

0150

SCREW, Hex Head, M8 X 30

$

$

Not available

0270

PULLEY, Auger

$

$

Not available

0300

WASHER, Flat, 8 X 28 X 3

$

$

Not available

0340

Snapper 707584

BELT, Auger Drive

$41.99

$

In Stock, Qty 11

0

0380

Snapper 707585

BELT, Traction Drive

$22.99

$

In Stock, Qty 16

0

9050

Snapper 707542

KIT, Bottom Cover

Note: (Incl. Ref. Nos. 0360, 0370)

$51.99

$

Usually ships in 2-12 days

0

0360

COVER, Bottom, Red

$

$

Not available

0370

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

--

Snapper 6219MA

CORD, Electric, 10FT. 110V

Note: ( Not Illustrated )

$40.99

$

In Stock, only 2 left!

0
