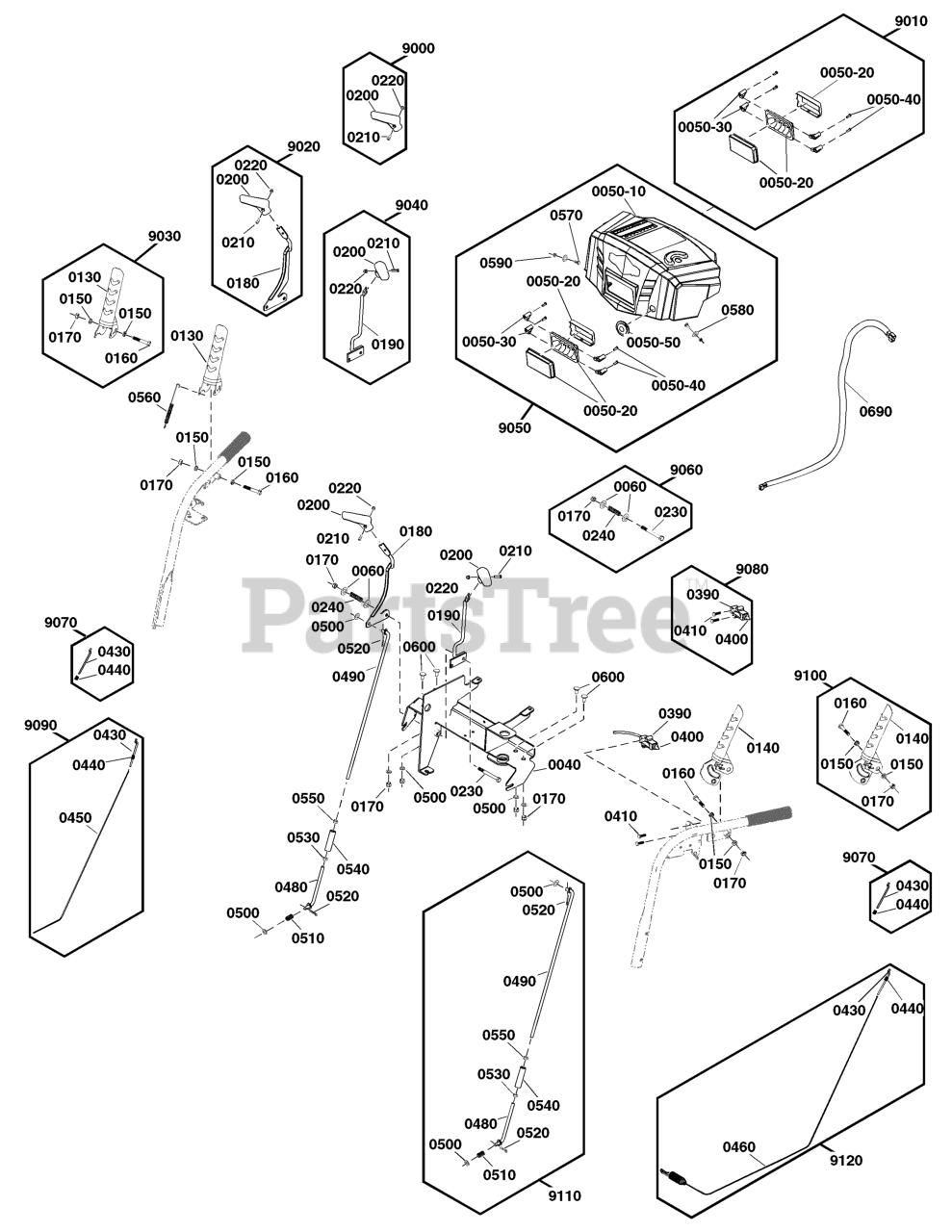

M 1024E (1697440-01) - Snapper 24" Snow Thrower, 9.5hp (2021) Controls Group Parts Diagram

24" Snow Thrower, 9.5hp

Controls Group Parts Diagram

  • Title

0040

PANEL, Dash

$

$

Not available

0560

Snapper 707877

SPRING, Handle

$12.99

$

Usually ships in 2-12 days

0

0600

BOLT, Carriage, M8 X 16

$

$

Not available

0690

Snapper 707637

HARNESS, Wiring

$118.99

$

Usually ships in 2-12 days

0

9000

Snapper 84003852

KIT, Knob, Lever

Note: (Incl. Ref. Nos. 0200, 0210, 0220)

$12.99

$

Usually ships in 2-12 days

0

0200

KNOB, Slot Speed

$

$

Not available

0210

SCREW, Phillips Head, M5

$

$

Not available

0220

NUT, Acorn, M5

$

$

Not available

9010

Snapper 84003849

KIT, Headlight

Note: (Incl. Ref. Nos.0050-20, 0050-30, 0050-40)

$52.99

$

Usually ships in 2-12 days

0

0050-20

ASSEMBLY, Light

$

$

Not available

0050-30

CLAMP, Light

$

$

Not available

0050-40

SCREW, Phillips Head, ST4, 2 X 14

$

$

Not available

9020

Snapper 84003853

KIT, Lever, Speed

Note: (Incl. Ref. Nos. 0180, 0200, 0210, 0220)

$27.99

$

Usually ships in 2-12 days

0

0180

LEVER ASSEMBLY, Speed

$

$

Not available

0200

KNOB, Slot Speed

$

$

Not available

0210

SCREW, Phillips Head, M5

$

$

Not available

0220

NUT, Acorn, M5

$

$

Not available

9030

Snapper 770771

KIT, Right Hand Lever (Traction Drive)

Note: (Incl. Ref. Nos. 0130, 0150, 0160, 0170)

$29.99

$

Usually ships in 2-12 days

0

0130

LEVER, Clutch, Right

$

$

Not available

0150

SPACER, Idler Plate, Small

$

$

Not available

0160

SCREW, Hex Head, M8 X 60

$

$

Not available

0170

NUT, Lock, M8

$

$

Not available

9040

Snapper 84003854

KIT, Lever, Discharge Chute

Note: (Incl. Ref. Nos. 0190, 0200, 0210, 0220)

$24.99

$

Usually ships in 2-12 days

0

0190

LEVER ASSEMBLY, Deflector

$

$

Not available

0200

KNOB, Slot Speed

$

$

Not available

0210

SCREW, Phillips Head, M5

$

$

Not available

0220

NUT, Acorn, M5

$

$

Not available

9050

Snapper 770072

KIT, Dash Panel, Briggs

Note: (Incl. Ref. Nos. 0570, 0580, 0590, 0050-10, 0050-20, 0050-30, 0050-40, 0050-50)

$102.99

$

In Stock, only 1 left!

0

0570

BOLT, Carriage, M6X16

$

$

Not available

0580

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

0590

NUT, Lock, M6

$

$

Not available

0050-10

PANEL, Dash, B&S

$

$

Not available

0050-20

ASSEMBLY, Light

$

$

Not available

0050-30

CLAMP, Light

$

$

Not available

0050-40

SCREW, Phillips, Self-Tapping

$

$

Not available

0050-50

BUSHING, Rotation Rod, Dash

$

$

Not available

9060

Snapper 707507

KIT, Hardware, Speed & Discharge

Note: (Incl. Ref. Nos. 0060, 0170, 0230, 0240)

$9.99

$

Usually ships in 2-12 days

0

0060

WASHER, 8x22x2, Flat

$

$

Not available

0170

NUT, Lock, M8

$

$

Not available

0230

SCREW, Hex Head, M8 X 70

$

$

Not available

0240

SPRING, Lever Assembly

$

$

Not available

9070

Snapper 770785

KIT, Cable, Hardware

Note: (Incl. Ref. Nos. 0430, 0440)

$9.99

$

Usually ships in 2-12 days

0

0430

ROD, Cable

$

$

Not available

0440

NUT, Copper

$

$

Not available

9080

Snapper 707521

KIT, Free Hand Control Assembly

Note: (Incl. Ref. Nos. 0390, 0400, 0410)

$31.99

$

Usually ships in 2-12 days

0

0390

BODY, Free Hand Control

$

$

Not available

0400

CABLE, Free Hand Control

$

$

Not available

0410

SCREW, Hex Head, W/ Lock Washer, M6 X 20

$

$

Not available

9090

Snapper 84003855

KIT, Cable, Traction Drive

Note: (Incl. Ref. Nos. 0430, 0440, 0450)

$63.99

$

In Stock, only 1 left!

0

0430

ROD, Cable

$

$

Not available

0440

NUT, Copper

$

$

Not available

0450

CABLE, Traction Drive

$

$

Not available

9100

Snapper 770772

KIT, Left Hand Lever (Auger Drive)

Note: (Incl. Ref. Nos. 0140, 0150, 0160, 0170)

$29.99

$

Usually ships in 2-12 days

0

0140

LEVER, Clutch, Left

$

$

Not available

0150

SPACER, Idler Plate, Small

$

$

Not available

0160

SCREW, Hex Head, M8 X 60

$

$

Not available

0170

NUT, Lock, M8

$

$

Not available

9110

Snapper 770787

KIT, Traction Drive Rod

Note: (Incl. Ref. Nos. 0480, 0490, 0500, 0510, 0520, 0530, 0540, 0550)

$39.99

$

Usually ships in 2-12 days

0

0480

ROD, Speed Select, Lower

$

$

Not available

0490

ROD, Speed Select, Upper

$

$

Not available

0500

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

0510

SPRING, Speed Select

$

$

Not available

0520

PIN, Hair, Cotter

$

$

Not available

0530

NUT, Hex, M8

$

$

Not available

0540

SLEEVE, Adjustment, M8

$

$

Not available

0550

NUT, Hex, M8

$

$

Not available

9120

Snapper 84003856

KIT, Cable, Auger Drive

Note: (Incl. Ref. Nos. 0430, 0440, 0460)

$57.99

$

In Stock, only 3 left!

0

0430

ROD, Cable

$

$

Not available

0440

NUT, Copper

$

$

Not available

0460

CABLE, Auger Drive

$

$

Not available
