M 1024E (1696617-04) - Snapper 24" Snow Thrower, 9.5hp (2019) Engine & Frame Group Parts Diagram

24" Snow Thrower, 9.5hp

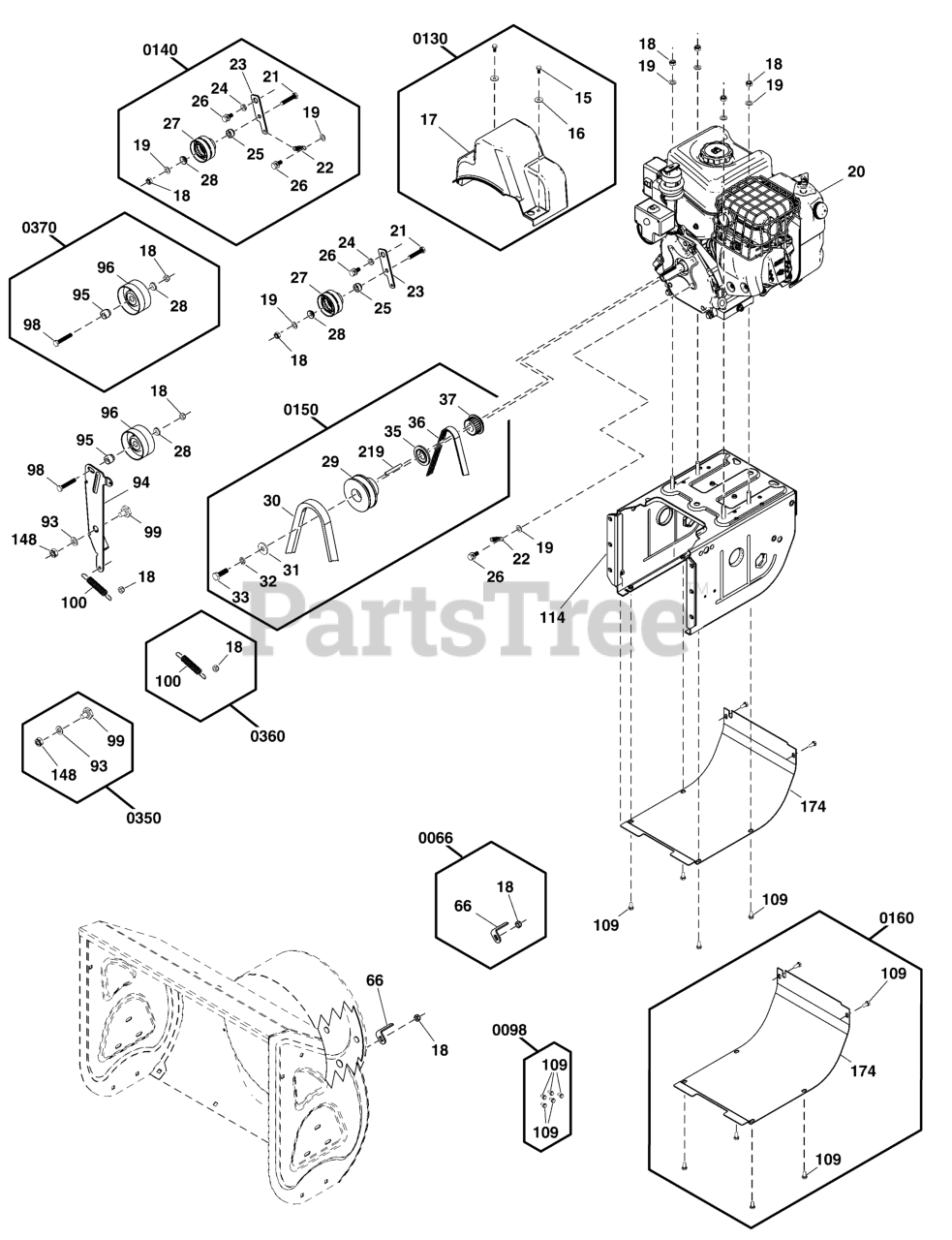

Engine & Frame Group Parts Diagram

  • Title

20

Snapper 13A137-0010-F1

*ENGINE, Briggs & Stratton

Note: (Engine Model: 13A137-0010-F1) (Refer to Note: *)

$

$

Currently unavailable

94

Snapper 770804

IDLER, Auger

$40.99

$

Usually ships in 2-12 days

0

114

MOTOR BOX ASSEMBLY, Red

Note: (Refer to Note: **)

$

$

Not available

0066

Snapper 84003843

KIT, Belt Guide

Note: (Incl. Ref. No. 18, 66)

$8.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

66

GUIDE, Belt

$

$

Not available

0098

Snapper 771904

KIT, Hardware

Note: (Incl. Ref. No. 109)

$6.99

$

Usually ships in 2-12 days

0

109

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

0130

Snapper 84003838

KIT, Belt Cover

Note: (Incl. Ref. Nos. 15, 16, 17)

$42.99

$

Usually ships in 2-12 days

0

15

SCREW, Hex Head, M6 X 12

$

$

Not available

16

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

17

COVER, Belt

$

$

Not available

0140

Snapper 770795

KIT, Idler Pulley, Traction Drive

Note: (Incl. Ref. Nos. 18, 19, 21, 22, 23, 24, 25, 26, 27, 28)

$46.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

19

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

21

SCREW, Hex Head, M8 X 40

$

$

Not available

22

SPRING, Idler

$

$

Not available

23

BRACKET, Idler

$

$

Not available

24

SPACER, Idler Plate, Small

$

$

Not available

25

SPACER, Idler Pulley

$

$

Not available

26

SCREW, Hex Flange Head, M8 X 20

$

$

Not available

27

PULLEY, Idler

$

$

Not available

28

SPACER, Idler Pulley

$

$

Not available

0150

Snapper 84003841

KIT, Idler Pulley, Traction Drive

Note: (Incl. Ref. Nos. 29, 30, 31, 32, 33, 35, 36, 37, 219)

$110.99

$

Usually ships in 2-12 days

0

29

PULLEY, Auger

$

$

Not available

30

Snapper 707584

BELT, Auger Drive

$41.99

$

In Stock, Qty 11

0

31

WASHER, Flat, 8 X 28 X 3

$

$

Not available

32

WASHER, Lock, M8

$

$

Not available

33

SCREW, Hex Head, M8 X 30

$

$

Not available

35

SPACER, Belt Wheel

$

$

Not available

36

Snapper 707585

BELT, Traction Drive

$22.99

$

In Stock, Qty 16

0

37

PULLEY, Drive

$

$

Not available

219

KEY, Flat, 5 X 4.7 X 50

$

$

Not available

0160

Snapper 84003840

KIT, Bottom Cover

Note: (Incl. Ref. Nos. 109, 174)

$51.99

$

Usually ships in 2-12 days

0

109

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

174

COVER, Bottom

$

$

Not available

0350

Snapper 707565

KIT-HARDWARE, IDLER BRACKET

Note: (Incl. Ref. Nos. 93, 99, 148)

$8.99

$

Usually ships in 2-12 days

0

93

WASHER, Flat, 10 X 20 X 2

$

$

Not available

99

SCREW, Hex Head, M10 X 13

$

$

Not available

148

NUT, Lock, M10

$

$

Not available

0360

Snapper 84003839

SPRING, Idler Pulley

Note: (Incl. Ref. Nos. 18, 100)

$4.49

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

100

SPRING, Idler

$

$

Not available

0370

Snapper 770807

KIT, Idler Pulley, Tension Plate

Note: (Incl. Ref. Nos. 18, 19, 28, 95, 96, 98)

$37.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

19

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

28

SPACER, Idler Pulley

$

$

Not available

95

SPACER, Sleeve, Idler Pulley

$

$

Not available

96

PULLEY, Idler

$

$

Not available

98

SCREW, Hex Head, M8 X 45

$

$

Not available
