M 1024E (1696617-04) - Snapper 24" Snow Thrower, 9.5hp (2019) Discharge Chute Group Parts Diagram

24" Snow Thrower, 9.5hp

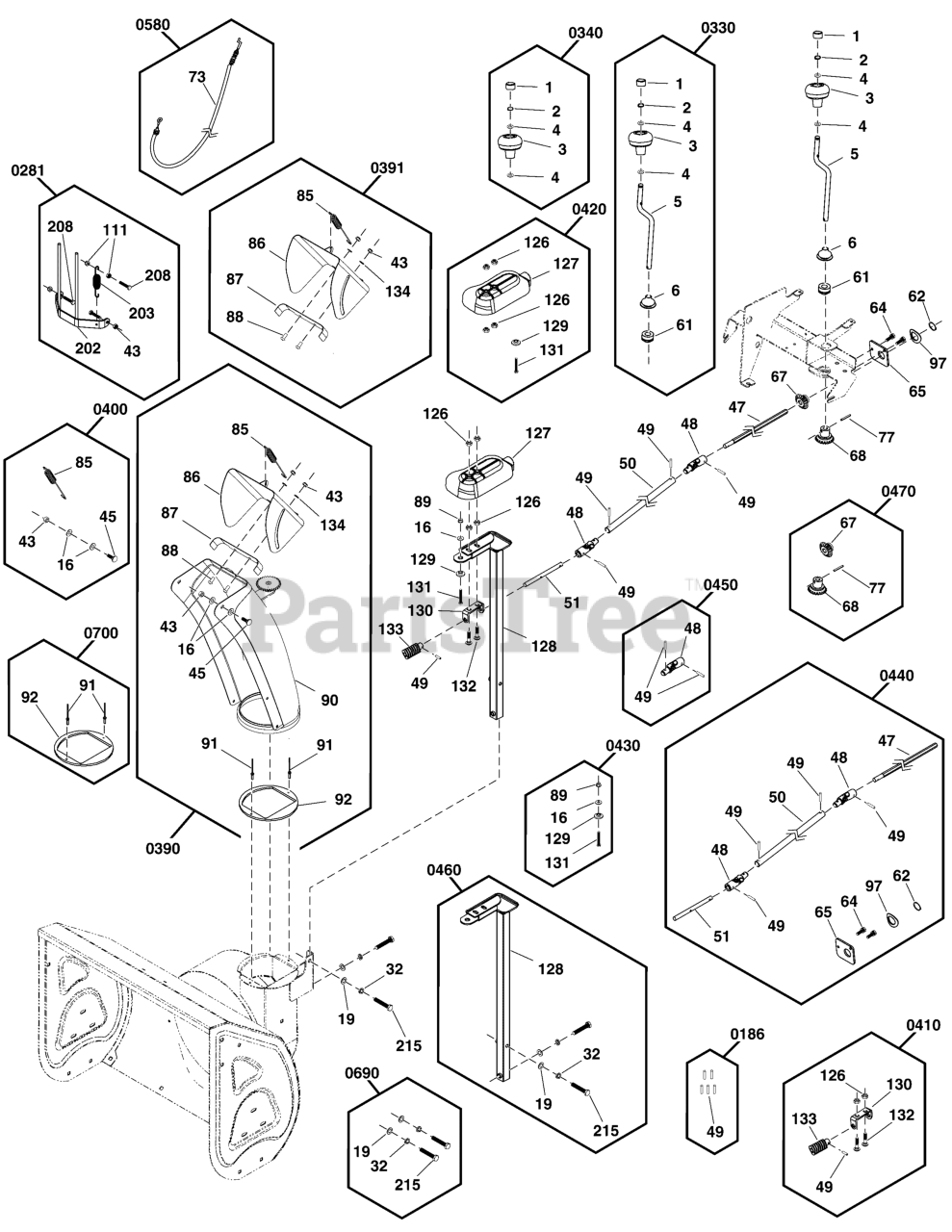

Discharge Chute Group Parts Diagram

  • Title

0186

Snapper 771921

KIT, Spring Pin, 4 X 20

Note: (Incl. Ref. No. 49)

$6.99

$

Usually ships in 2-12 days

0

49

PIN, 4 X 20, Spring

$

$

Not available

0281

Snapper 84003650

KIT, Chute Guard

Note: (Incl. Ref. Nos. 43, 111, 202, 203, 208)

$29.99

$

Usually ships in 2-12 days

0

43

NUT, Lock, M6

$

$

Not available

111

NUT, HEX FLANGE HEAD, M6

$

$

Not available

202

GUARD, Chute

$

$

Not available

203

SPRING, Extension

$

$

Not available

208

SCREW, Hex Head, M6X16

$

$

Not available

0330

Snapper 707503

KIT, Chute Rotation

Note: (Incl. Ref. Nos. 1, 2, 3, 4, 5, 6, 61)

$28.99

$

Usually ships in 2-12 days

0

1

KNOB, Cover

$

$

Not available

2

RING, External Retaining, 10

$

$

Not available

3

KNOB, Chute Rotator

$

$

Not available

4

WASHER, Flat, 10 X 20 X 1

$

$

Not available

5

ROD, Chute Rotation

$

$

Not available

6

BUSHING, Chute Rotation

$

$

Not available

61

BUSHING, Rotation Rod

$

$

Not available

0340

Snapper 707502

KIT, Chute Knob

Note: (Incl. Ref. Nos. 1, 2, 3, 4)

$11.99

$

Usually ships in 2-12 days

0

1

KNOB, Cover

$

$

Not available

2

RING, External Retaining, 10

$

$

Not available

3

KNOB, Chute Rotator

$

$

Not available

4

WASHER, Flat, 10 X 20 X 1

$

$

Not available

0390

Snapper 84003715

KIT, Chute Assembly

Note: (Incl. Ref. Nos. 16, 43, 45, 85, 86, 87, 88, 90, 91, 92, 134)

$79.99

$

In Stock, only 1 left!

0

16

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

43

NUT, Lock, M6

$

$

Not available

45

SCREW, Shoulder, M6 X 10

$

$

Not available

85

SPRING, Extension

$

$

Not available

86

DEFLECTOR, Chute

$

$

Not available

87

GASKET, Chute Deflector

$

$

Not available

88

BOLT, Button Head Socket, M6 X 13

$

$

Not available

90

CHUTE

$

$

Not available

91

RIVET, 4 X 13

$

$

Not available

92

ADAPTER, Chute Ring

$

$

Not available

134

WASHER, 6x12x.7, Flat

$

$

Not available

0391

Snapper 84003714

KIT, Chute Deflector

Note: (Incl. Ref. Nos. 43, 85, 86, 87, 88, 134)

$39.99

$

Usually ships in 2-12 days

0

43

NUT, Lock, M6

$

$

Not available

85

SPRING, Extension

$

$

Not available

86

DEFLECTOR, Chute

$

$

Not available

87

GASKET, Chute Deflector

$

$

Not available

88

BOLT, Button Head Socket, M6 X 13

$

$

Not available

134

WASHER, 6x12x.7, Flat

$

$

Not available

0400

Snapper 707563

KIT, Spring, Chute

Note: (Incl. Ref. Nos. 16, 43, 45, 85)

$10.99

$

Usually ships in 2-12 days

0

16

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

43

NUT, Lock, M6

$

$

Not available

45

SCREW, Shoulder, M6 X 10

$

$

Not available

85

SPRING, Extension

$

$

Not available

0410

Snapper 707543

KIT, Worm Gear Hardware, Chute

Note: (Incl. Ref. Nos. 49, 126, 130, 132, 133)

$34.99

$

Usually ships in 2-12 days

0

49

PIN, 4 X 20, Spring

$

$

Not available

126

NUT, Hex Flange Head, M8

$

$

Not available

130

BRACKET, Chute Rotation, Worm

$

$

Not available

132

BOLT, Carriage, M8 X 30

$

$

Not available

133

GEAR, Chute Rotation, Worm

$

$

Not available

0420

Snapper 707544

KIT, Cover, Chute Rotation

Note: (Incl. Ref. Nos. 126, 127, 129, 131)

$34.99

$

Usually ships in 2-12 days

0

126

NUT, Hex Flange Head, M8

$

$

Not available

127

COVER, Chute Rotation

$

$

Not available

129

SPACER, Chute Rotation Bracket

$

$

Not available

131

SCREW, Hex Head, M6 X 45

$

$

Not available

0430

Snapper 771893

KIT, Bracket, Chute Rotation Hardware

Note: (Incl. Ref. Nos. 16, 89, 129, 131)

$7.49

$

Usually ships in 2-12 days

0

16

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

89

NUT, Lock, Hex Flange Head, M6

$

$

Not available

129

SPACER, Chute Rotation Bracket

$

$

Not available

131

SCREW, Hex Head, M6 X 45

$

$

Not available

0440

Snapper 84003717

KIT, Chute Rotation Rod

Note: (Incl. Ref. Nos. 47, 48, 49, 50, 51, 62, 64, 65, 97)

$82.99

$

Usually ships in 2-12 days

0

47

ROD, Chute Rotation, Driven

$

$

Not available

48

UNIVERSAL JOINT

$

$

Not available

49

PIN, 4 X 20, Spring

$

$

Not available

50

ROD, Chute Rotation, Connecting

$

$

Not available

51

ROD, Chute Rotation, Worm

$

$

Not available

62

RING, External Retaining, 20

$

$

Not available

64

SCREW, Hex Washer Head, M6 X 12

$

$

Not available

65

PLATE, Rotation Rod, Bevel Gear

$

$

Not available

97

WASHER, Wave, 20

$

$

Not available

0450

Snapper 707524

KIT, Cardan Joint

Note: (Incl. Ref. Nos. 48, 49)

$67.99

$

Usually ships in 2-12 days

0

48

UNIVERSAL JOINT

$

$

Not available

49

PIN, 4 X 20, Spring

$

$

Not available

0460

Snapper 84003716

KIT, Chute Rotation Bracket

Note: (Incl. Ref. Nos. 19, 32, 128, 215)

$60.99

$

Usually ships in 2-12 days

0

19

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

32

WASHER, Lock, M8

$

$

Not available

128

BRACKET, Chute Rotation Upper

$

$

Not available

215

SCREW, Hex Head, M8 X 45

$

$

Not available

0470

Snapper 770774

KIT, Bevel Gear, Chute Rotation

Note: (Incl. Ref. Nos. 67, 68, 77)

$20.99

$

Usually ships in 2-12 days

0

67

GEAR, Bevel

$

$

Not available

68

GEAR, Bevel

$

$

Not available

77

PIN, Spring, 4 X 28

$

$

Not available

0580

Snapper 771734

KIT, Cable-Chute Deflector

Note: (Incl. Ref. No. 73)

$37.99

$

In Stock, only 2 left!

0

73

CABLE, Deflector Control

$

$

Not available

0690

Snapper 771996

KIT, Bracket, Chute Rotation Hardware

Note: (Incl. Ref. Nos. 19, 32, 215)

$12.99

$

Usually ships in 2-12 days

0

19

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

32

WASHER, Lock, M8

$

$

Not available

215

SCREW, Hex Head, M8 X 45

$

$

Not available

0700

Snapper 84002905

KIT, Hardware, Chute Rotation

Note: (Incl. Ref. Nos. 91, 92)

$9.49

$

Usually ships in 2-12 days

0

91

RIVET, 4 X 13

$

$

Not available

92

ADAPTER, Chute Ring

$

$

Not available
