M 1024E (1696617-04) - Snapper 24" Snow Thrower, 9.5hp (2019) Controls Group Parts Diagram

24" Snow Thrower, 9.5hp

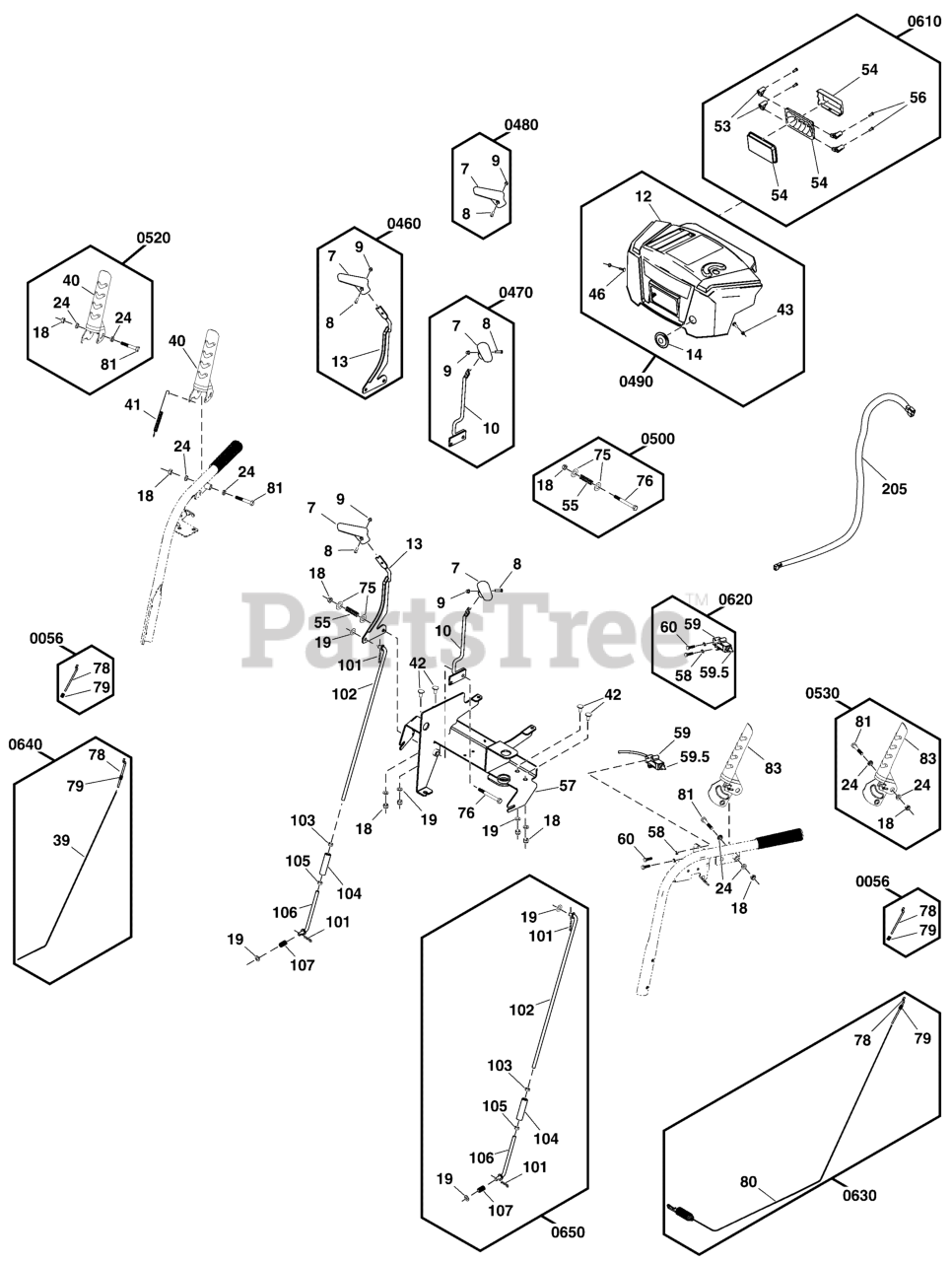

Controls Group Parts Diagram

  • Title

41

Snapper 707877

SPRING, Handle

$12.99

$

Usually ships in 2-12 days

0

42

BOLT, Carriage, M8 X 18

$

$

Not available

57

PANEL, Dash

$

$

Not available

205

Snapper 707637

HARNESS, Wiring

$118.99

$

Usually ships in 2-12 days

0

0056

Snapper 770785

KIT, Cable, Hardware

Note: (Incl. Ref. Nos. 78, 79)

$9.99

$

Usually ships in 2-12 days

0

78

ROD, Cable

$

$

Not available

79

NUT, Copper

$

$

Not available

0460

Snapper 84003853

KIT, Lever, Speed

Note: (Incl. Ref. Nos. 7, 8, 9, 13)

$27.99

$

Usually ships in 2-12 days

0

7

KNOB, Slot Speed

$

$

Not available

8

SCREW, Phillips Head, M5

$

$

Not available

9

NUT, Acorn, M5

$

$

Not available

13

LEVER ASSEMBLY, Speed

$

$

Not available

0470

Snapper 84003854

KIT, Lever, Discharge Chute

Note: (Incl. Ref. Nos. 7, 8, 9, 10)

$24.99

$

Usually ships in 2-12 days

0

7

KNOB, Slot Speed

$

$

Not available

8

SCREW, Phillips Head, M5

$

$

Not available

9

NUT, Acorn, M5

$

$

Not available

10

LEVER ASSEMBLY, Deflector

$

$

Not available

0480

Snapper 84003852

KIT, Knob, Lever

Note: (Incl. Ref. Nos. 7, 8, 9)

$12.99

$

Usually ships in 2-12 days

0

7

KNOB, Slot Speed

$

$

Not available

8

SCREW, Phillips Head, M5

$

$

Not available

9

NUT, Acorn, M5

$

$

Not available

0490

Snapper 84003850

ASSEMBLY, Dash

Note: (Incl. Ref. Nos. 12, 14, 43, 46)

$80.99

$

Usually ships in 2-12 days

0

12

PANEL, Red

$

$

Not available

14

BUSHING, Rotation Rod, Dash

$

$

Not available

43

NUT, Lock, M6

$

$

Not available

46

BOLT, Carriage, M6X16

$

$

Not available

0500

Snapper 707507

KIT, Hardware, Speed & Discharge

Note: (Incl. Ref. Nos. 18, 55, 75, 76)

$9.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

55

SPRING, Lever Assembly

$

$

Not available

75

WASHER, 8x22x2, Flat

$

$

Not available

76

SCREW, Hex Head, M8 X 70

$

$

Not available

0520

Snapper 770771

KIT, Right Hand Lever (Traction Drive)

Note: (Incl. Ref. Nos. 18, 24, 40, 81)

$29.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

24

SPACER, Idler Plate, Small

$

$

Not available

40

LEVER, Clutch, Right

$

$

Not available

81

SCREW, Hex Head, M8 X 60

$

$

Not available

0530

Snapper 770772

KIT, Left Hand Lever (Auger Drive)

Note: (Incl. Ref. Nos. 18, 24, 81, 83)

$29.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

24

SPACER, Idler Plate, Small

$

$

Not available

81

SCREW, Hex Head, M8 X 60

$

$

Not available

83

LEVER, Clutch, Left

$

$

Not available

0610

Snapper 84003849

KIT, Headlight

Note: (Incl. Ref. Nos. 53, 54, 56)

$52.99

$

Usually ships in 2-12 days

0

53

CLAMP, Light

$

$

Not available

54

ASSEMBLY, Light

$

$

Not available

56

SCREW, Phillips Head, ST4, 2 X 14

$

$

Not available

0620

Snapper 707521

KIT, Free Hand Control Assembly

Note: (Incl. Ref. Nos. 58, 59, 59.5, 60)

$31.99

$

Usually ships in 2-12 days

0

58

WASHER, M6, Split Lock, MC

$

$

Not available

59

BODY, Free Hand Control

$

$

Not available

59.5

CABLE, Free Hand Control

$

$

Not available

60

SCREW, Hex Head, M6 X 20

$

$

Not available

0630

Snapper 84003856

KIT, Cable, Auger Drive

Note: (Incl. Ref. Nos. 78, 79, 80)

$57.99

$

In Stock, only 3 left!

0

78

ROD, Cable

$

$

Not available

79

NUT, Copper

$

$

Not available

80

CABLE, Auger Drive

$

$

Not available

0640

Snapper 84003855

KIT, Cable, Traction Drive

Note: (Incl. Ref. Nos. 39, 78, 79)

$63.99

$

In Stock, only 1 left!

0

39

CABLE, Traction Drive

$

$

Not available

78

ROD, Cable

$

$

Not available

79

NUT, Copper

$

$

Not available

0650

Snapper 770787

KIT, Traction Drive Rod

Note: (Incl. Ref. Nos. 19, 101, 102, 103, 104, 105, 106, 107)

$39.99

$

Usually ships in 2-12 days

0

19

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

101

PIN, Hair, Cotter

$

$

Not available

102

ROD, Speed Select, Upper

$

$

Not available

103

NUT, Hex, M8

$

$

Not available

104

SLEEVE, Adjustment, M8

$

$

Not available

105

NUT, Hex, M8

$

$

Not available

106

ROD, Speed Select, Lower

$

$

Not available

107

SPRING, Speed Select

$

$

Not available
