M 1024 E (1696811-00) - Simplicity 24" Snow Thrower, 11.5hp Auger Housing Group Parts Diagram

24" Snow Thrower, 11.5hp

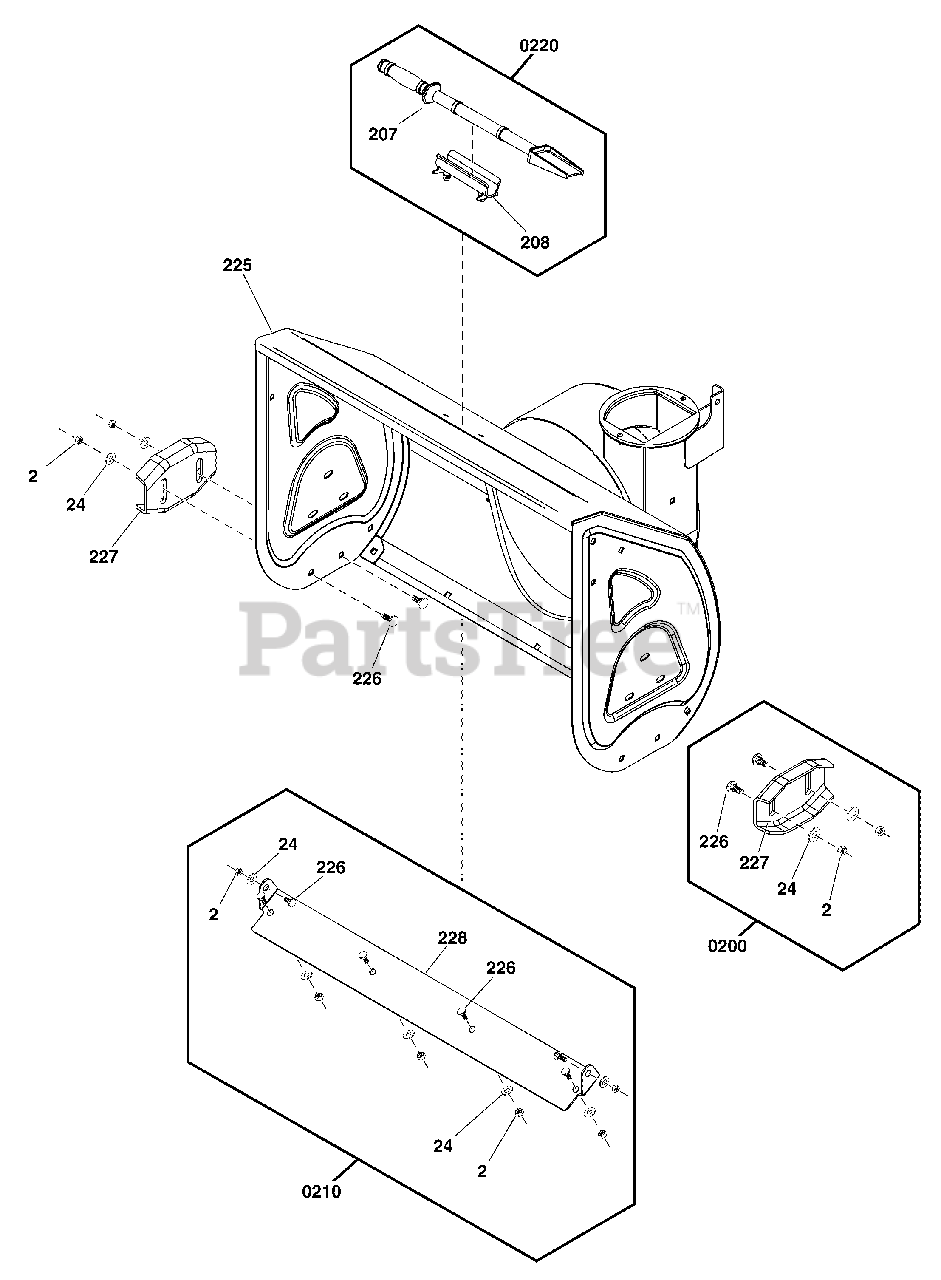

Auger Housing Group Parts Diagram

  • Title
225

AUGER HOUSING, 24", Orange

Note: (Refer to Note:*)

$

$

Not available

0200

Simplicity 707550

KIT, SKID SHOE
(Superseded to 84003710)

Note: (Incl. Ref. Nos. 2, 24, 226, 227)

$45.99

$

In Stock, Qty 7

0

2

NUT, Lock, M8

$

$

Not available

24

WASHER, 8x22x2, Flat

$

$

Not available

226

BOLT, Carriage, M8 X 18

$

$

Not available

227

SKID, Height Adjust

$

$

Not available

0210

Simplicity 771971

KIT, Scraper Bar

Note: (Incl. Ref. Nos. 2, 24, 226, 228)

$48.99

$

Usually ships in 2-12 days

0

2

NUT, Lock, M8

$

$

Not available

24

WASHER, 8x22x2, Flat

$

$

Not available

226

BOLT, Carriage, M8 X 18

$

$

Not available

228

BLADE, Scraper, 24"

$

$

Not available

0220

Simplicity 707549

KIT, CLEANOUT BRUSH STICK

Note: (Incl. Ref. Nos. 207, 208)

$28.99

$

Usually ships in 2-12 days

0

207

SHOVEL, Cleanout

$

$

Not available

208

CLAMP, Cleanout

$

$

Not available
