M 1024 E (1696645-02) - Simplicity 24" Snow Thrower, 9.5hp Handles & Controls Group - Remote Parts Diagram

24" Snow Thrower, 9.5hp

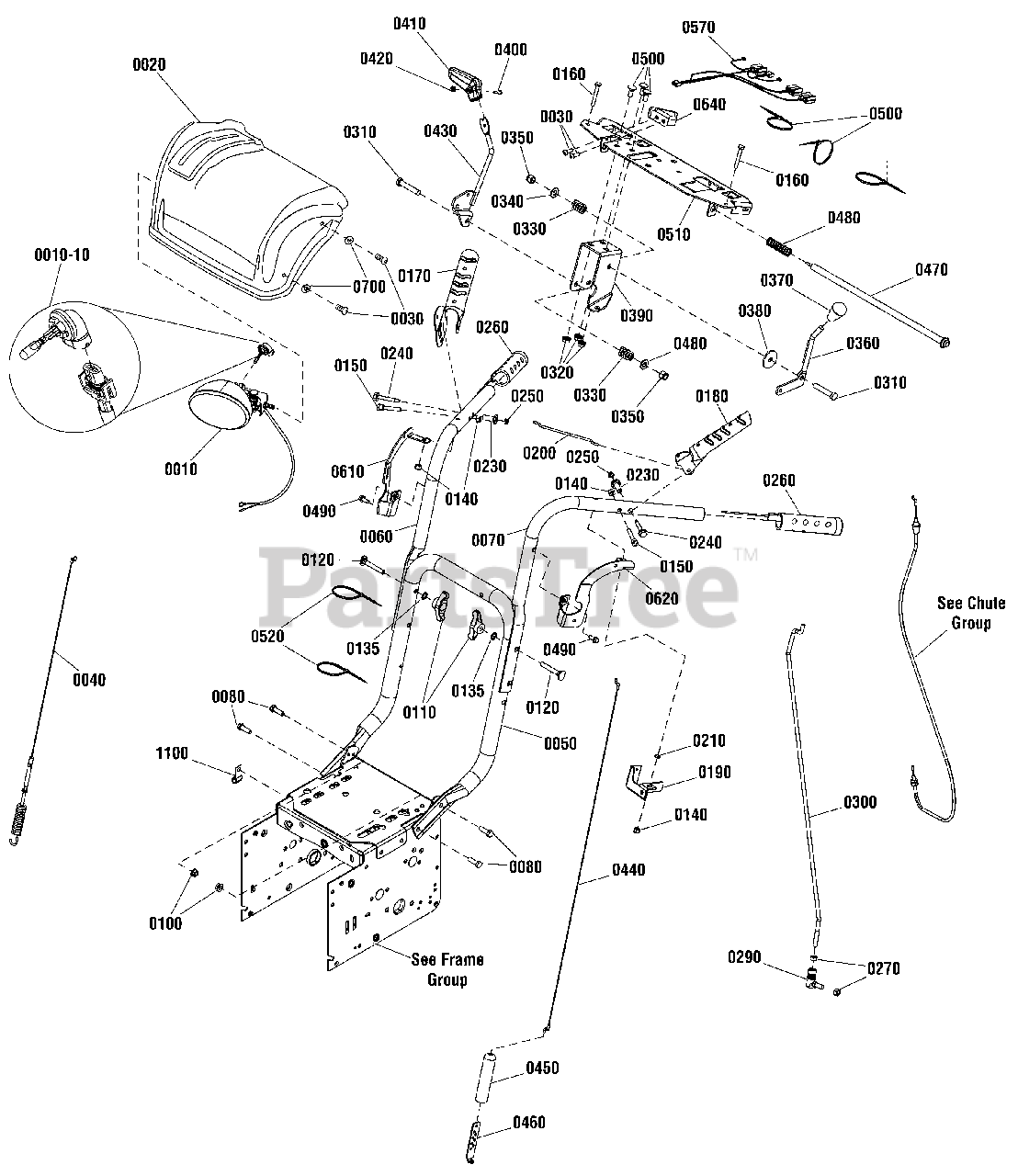

Handles & Controls Group - Remote Parts Diagram

  • Title

0010

Simplicity 1737965YP

HEADLIGHT ASSEMBLY
(Superseded to 1688087)

Note: (Includes Ref. No. 0010-10)

$

$

Not available

0010-10

* BULB, Headlight, Halogen, 881-12V 27W

$

$

Not available

0020

Simplicity 1750683CYP

COVER, Panel

$136.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1960556SM

SCREW, Pan Head Torx Taptite, 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

0040

Simplicity 703221

CABLE AND SPRING ASSEMBLY, Auger Drive, Right

$24.99

$

In Stock, Qty 6

0

0050

Simplicity 1737274AYP

HANDLE, Lower

$107.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1734587ASM

HANDLE, Upper, RH

$51.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1734586ASM

HANDLE, Upper, LH

$55.99

$

In Stock, only 1 left!

0

0080

Simplicity 1737687YP

CAPSCREW, Hex Head, 5/16-18 x 3/4 G5

$6.49

$

Usually ships in 2-12 days

0

0100

Simplicity 703222

NUT, Hex Kep, 5/16-18

$5.99

$

In Stock, only 2 left!

0

0110

Simplicity 703065

KNOB, Wing, 5/16-18

$6.99

$

In Stock, Qty 20+

0

0120

Simplicity 703168

BOLT, Carriage, Curved Head, 5/16-18 x 2-1/4

$3.99

$

In Stock, only 4 left!

0

0135

Simplicity 703587

WASHER, Internal Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

0140

Simplicity 703232

NUT, Hex Lock ESNA Light, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0150

Simplicity 703045

BOLT, Shoulder, Hex Head, 1/4-20 x 1-3/4, G5

$3.49

$

Usually ships in 2-12 days

0

0160

Simplicity 703588

CAPSCREW, Hex Head, 1/4-20 x 1-3/4

$3.99

$

In Stock, only 1 left!

0

0170

Simplicity 1739783AYP

LEVER, Clutch, Right

$28.99

$

In Stock, only 1 left!

0

0180

Simplicity 1739782AYP

LEVER, Clutch, Left

$

$

Not available

0190

Simplicity 1733505BMYP

BRACKET, Pivot, Free Hand

$14.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1736360YP

ROD, Hold Down

$11.99

$

Usually ships in 2-12 days

0

0210

Simplicity 703124

SPACER, 1/4 x .118, G5

$3.99

$

Usually ships in 2-12 days

0

0230

Simplicity 703223

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0240

Simplicity 1753529YP

SCREW, Hex Washer Head, Shoulder 1/4-20

$3.99

$

Usually ships in 2-12 days

0

0250

Simplicity 703412

NUT, Nylock, 10 x 24

$4.49

$

In Stock, only 2 left!

0

0260

Simplicity 1726317SM

GRIP

$8.49

$

In Stock, only 1 left!

0

0270

Simplicity 703331

NUT, 5/16-24, Hex, GR5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0290

Simplicity 703224

BALL JOINT

$21.99

$

In Stock, only 2 left!

0

0300

Simplicity 704085

ROD, Speed Control

$22.99

$

Usually ships in 2-12 days

0

0310

Simplicity 703589

CAPSCREW, Hex Head, 3/8-16 x 2, G5

$4.49

$

In Stock, only 1 left!

0

0320

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0330

Simplicity 50786MA

SPRING

$5.49

$

Usually ships in 2-12 days

0

0340

Simplicity 703590

WASHER, Flat

$3.99

$

In Stock, Qty 10

0

0350

Simplicity 703117

NUT, 3/8-16, Nylock, GR5, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0360

Simplicity 1736192YP

LEVER, Deflector Control

$13.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1732470SM

KNOB

$19.99

$

In Stock, Qty 8

0

0380

Simplicity 703591

WASHER, Flat

$5.49

$

In Stock, Qty 20+

0

0390

Simplicity 1737684YP

BRACKET, Controls

$16.99

$

Usually ships in 2-12 days

0

0400

Simplicity 1960589SM

SCREW, Round Head Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0410

Simplicity 1733192SM

KNOB, Slot Speed

$8.49

$

Usually ships in 2-12 days

0

0420

Simplicity 703412

NUT, Nylock, #10-24

$4.49

$

In Stock, only 2 left!

0

0430

Simplicity 703047

LEVER, Speed

$56.99

$

Usually ships in 2-12 days

0

0440

Simplicity 1502113MA

CABLE, Drive

$22.99

$

In Stock, Qty 20+

0

0450

Simplicity 308146MA

BOOT, Spring End Cover

$6.49

$

In Stock, only 2 left!

0

0460

Simplicity 313441MA

BRACKET, Cable Adjust

$

$

Not available

0470

Simplicity 1736363YP

ROD & SPRING ASSEMBLY

$33.99

$

Usually ships in 2-12 days

0

0480

Simplicity 2108360SM

SPRING, Compression

$5.49

$

In Stock, only 1 left!

0

0490

Simplicity 703054

SCREW, Hex Washer Head, Thread Roll, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0500

Simplicity 703225

BOLT, Carriage, 5/16-18 X 3/4,GR5

$3.99

$

In Stock, Qty 20+

0

0510

Simplicity 1739500BMYP

SUPPORT, Dash

$54.99

$

Usually ships in 2-12 days

0

0520

Simplicity 703586

TIE. Self Locking

$4.99

$

Usually ships in 2-12 days

0

0570

Simplicity 708159

HARNESS, Wiring with Remote Rectifier

Note: (Used before Serial No. 2017341929)

$56.99

$

Usually ships in 2-12 days

0

0570

Simplicity 709958

HARNESS, Wiring with Remote Rectifier

Note: (Used after Serial No. 2017341929)

$70.99

$

Usually ships in 2-12 days

0

0610

Simplicity 1750522BMYP

BRACKET, Mounting, RH

$13.99

$

Usually ships in 2-12 days

0

0620

Simplicity 1750521BMYP

BRACKET, Mounting, LH

$19.99

$

Usually ships in 2-12 days

0

0640

Simplicity 1739483AYP

POD, Chute Rotation, RH

$35.99

$

Usually ships in 2-12 days

0

0700

Simplicity 703332

WASHER, Flat

$4.49

$

In Stock, Qty 20+

0

1100

Simplicity 7012652YP

CLIP, Wire, 7/16

$3.99

$

Usually ships in 2-12 days

0
