M 1024 E (1696645-02) - Simplicity 24" Snow Thrower, 9.5hp Chute & Rotation Group - Remote Parts Diagram

24" Snow Thrower, 9.5hp

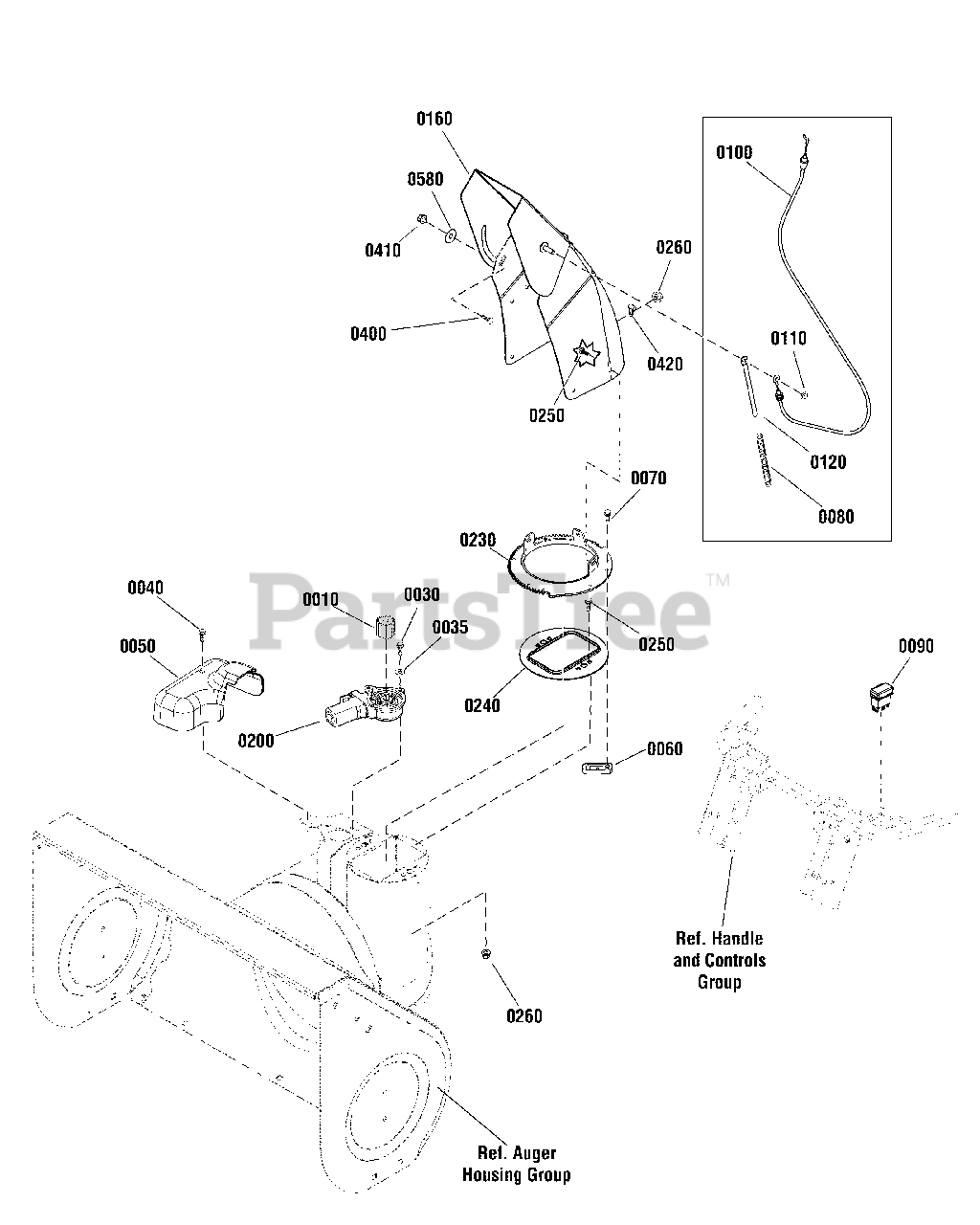

Chute & Rotation Group - Remote Parts Diagram

  • Title

0010

Simplicity 1728967SM

PINION, 1-1/4 Lg

$17.99

$

In Stock, only 4 left!

0

0030

Simplicity 1739621YP

SCREW, Torx Button Head, M5 x .8 x .14

$4.49

$

In Stock, Qty 13

0

0035

Simplicity 7091552SM

WASHER, Flat, 7/32 x 1/2 OD

$3.99

$

In Stock, Qty 14

0

0040

Simplicity 703466

CAPSCREW, Hex Washer, Self-Tapping, 1/4-20 x 3/8

$3.99

$

In Stock, Qty 10

0

0050

Simplicity 1752877YP

COVER, Electric Chute Rotation

$16.99

$

In Stock, only 1 left!

0

0060

Simplicity 7011938SM

RETAINER, Spout

$

$

Not available

0070

Simplicity 703062

CAPSCREW, Hex Washer, 10-14 x 5/8

$4.49

$

Usually ships in 2-12 days

0

0080

Simplicity 703135

SPRING, Compression, 9/16 OD X 6-1/16 Lg

$3.99

$

Usually ships in 2-12 days

0

0090

Simplicity 709954

SWITCH, Chute Rotation

$46.99

$

In Stock, Qty 6

0

0100

Simplicity 1750623YP

CABLE, Deflector Control

$49.99

$

In Stock, Qty 5

0

0110

Simplicity 704028

PUSHNUT, 5/16 Dia. 5/8 OD

$5.49

$

In Stock, only 3 left!

0

0120

Simplicity 1734708ASM

ROD, 5/16 Dia., 5.88 Lg

$13.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1706085SM

DECAL, Hinge, Orange

Note: (Not shown)

$13.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1752840CYP

CHUTE ASSEMBLY

$148.99

$

Usually ships in 2-12 days

0

0200

Simplicity 708703

MOTOR, Actuator

$86.99

$

In Stock, Qty 7

0

0230

Simplicity 1737465BMYP

GEAR, Chute

$

$

Not available

0240

Simplicity 1737411YP

ADAPTER, Chute Ring

$19.99

$

Usually ships in 2-12 days

0

0250

Simplicity 703440

BOLT, Carriage, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 8

0

0260

Simplicity 703061

NUT, Hex Flange, 1/4-20, ESNA

$3.49

$

In Stock, Qty 11

0

0400

Simplicity 703185

BOLT, Carriage, 5/16-18 x 3/4, G5

$3.49

$

In Stock, Qty 12

0

0410

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0420

Simplicity 703174

CLIP

$4.49

$

Usually ships in 2-12 days

0

0580

Simplicity 2860210SM

WASHER, Nylon, 3/8

$4.49

$

In Stock, only 2 left!

0
