M 10/30 (309029x11G) - Hayter Heritage 30" Rear-Engine Riding Mower, Canada (2009) Motion Drive Parts Diagram

Heritage 30" Rear-Engine Riding Mower, Canada

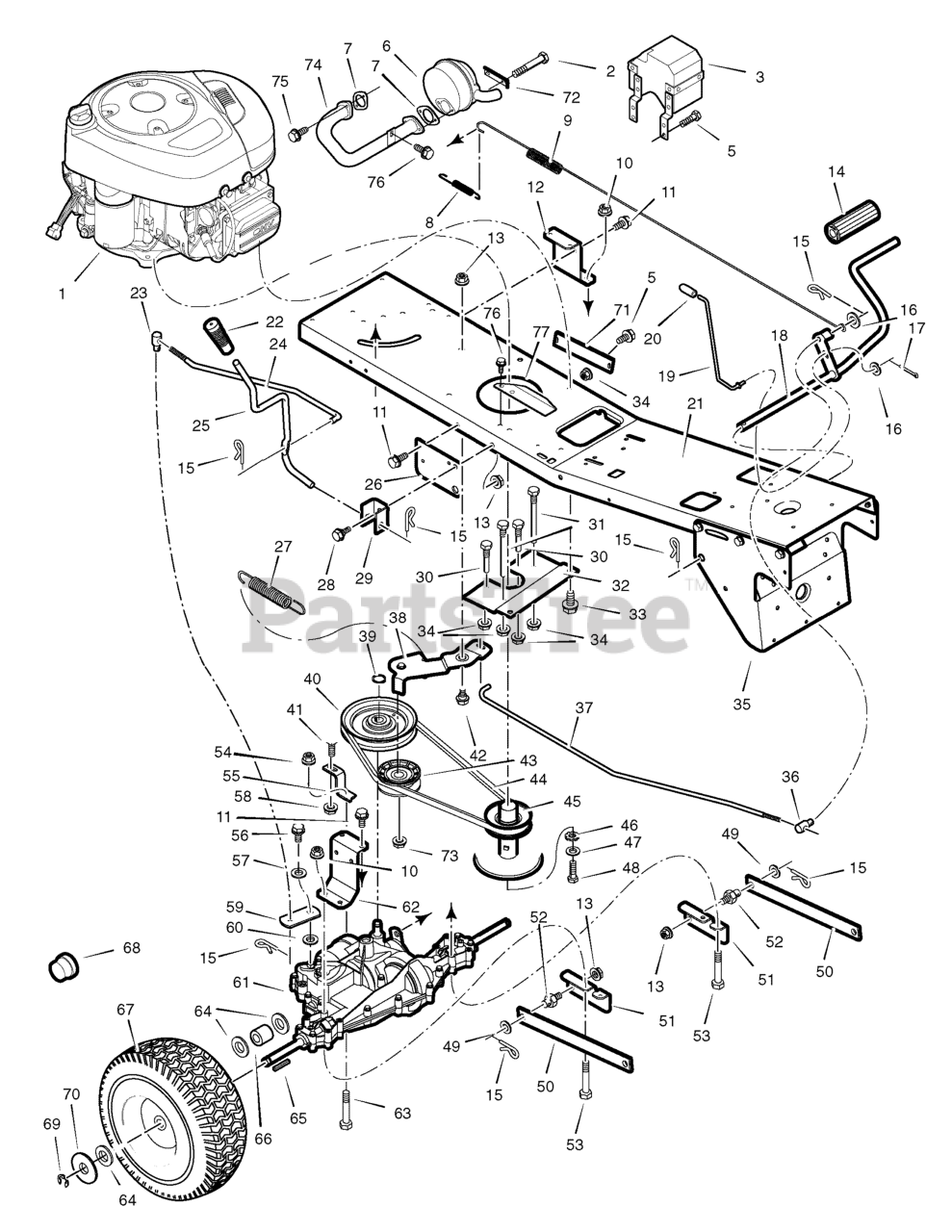

Motion Drive Parts Diagram

  • Title
1

Murray 215807-0135-B1

ENGINE, Briggs & Stratton *

Note: (2158070135B1)

$

$

Currently unavailable

2

Murray MU01X134MA

BOLT, Hex

$

$

Currently unavailable

3

Murray MU1401375MA

SHIELD ASSEMBLY, Heat

$

$

Currently unavailable

$

$

Currently unavailable

6

$

$

Currently unavailable

7

Murray MU692236

GASKET, Muffler

$

$

Currently unavailable

8

Murray MU165X75MA

SPRING, Extension

$

$

Currently unavailable

9

Murray MU165X148MA

SPRING, Extension

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

12

Murray MU1401268E701MA

BRACKET, Left Transaxle

$

$

Currently unavailable

13

Murray MU015X84MA

NUT, Flange

$

$

Currently unavailable

14

Murray MU021544MA

COVER, Pedal

$

$

Currently unavailable

15

Murray MU0031X4MA

PIN, Hair

$

$

Currently unavailable

16

$

$

Currently unavailable

17

Murray MU030X20MA

PIN, Cotter

$

$

Currently unavailable

18

Murray MU1401127E701MA

PEDAL ASSEMBLY

$

$

Currently unavailable

19

Murray MU1401112MA

ROD, Parking Brake

$

$

Currently unavailable

20

Murray MU091079MA

GRIP, Parking Brake Rod

$

$

Currently unavailable

$

$

Currently unavailable

22

Murray MU092697MA

GRIP, Shift Lever

$

$

Currently unavailable

23

Murray MU1401148ZMA

NUT, Adjusting

$

$

Currently unavailable

24

Murray MU1401122MA

LINK, Shift

$

$

Currently unavailable

25

Murray MU1401111MA

LEVER, Shift

$

$

Currently unavailable

26

Murray MU1401032E701MA

BRACKET, Lift Pivot

$

$

Currently unavailable

27

Murray MU165X147MA

SPRING, Extension

$

$

Currently unavailable

28

Murray MU009X39MA

BOLT, Shoulder

$

$

Currently unavailable

29

Murray MU1401043E701MA

BRACKET, Pivot

$

$

Currently unavailable

30

Murray MU1401104MA

GUIDE, Belt -Short

$

$

Currently unavailable

31

Murray MU1401105MA

GUIDE, Belt -Long

$

$

Currently unavailable

32

Murray MU1401057E701MA

PLATE, Belt Guide

$

$

Currently unavailable

$

$

Currently unavailable

34

Murray MU015X79MA

NUT, Flange

$

$

Currently unavailable

35

Murray MU885036ZYP

BRACKET, Support

$

$

Currently unavailable

36

Murray MU094815ZMA

NUT, Adjusting

$

$

Currently unavailable

37

Murray MU1401078MA

ROD, Clutch

$

$

Currently unavailable

38

Murray MU1401128E701MA

ARM ASSEMBLY, Clutch

$

$

Currently unavailable

39

Murray MU0011X7MA

RING, Retainer

$

$

Currently unavailable

40

Murray MU1401077MA

PULLEY, Drive

$

$

Currently unavailable

41

Murray MU002X53MA

BOLT, Carriage

$

$

Currently unavailable

42

Murray MU009X39MA

BOLT, Shoulder

$

$

Currently unavailable

43

Murray MU1401252MA

PULLEY, Idler

$

$

Currently unavailable

44

Murray MU37X110MA

BELT, Motion Drive

$

$

Currently unavailable

45

Murray MU1401066MA

PULLEY, Split Stack

$

$

Currently unavailable

46

Murray MU019X35MA

WASHER, Star

$

$

Currently unavailable

47

$

$

Currently unavailable

48

Murray MU01X140MA

BOLT, Hex

$

$

Currently unavailable

49

$

$

Currently unavailable

50

$

$

Currently unavailable

51

Murray MU1401039E701MA

BRACKET, Rear Hanger

$

$

Currently unavailable

52

Murray MU094067MA

PIN, Threaded Shoulder

$

$

Currently unavailable

53

Murray MU01X155MA

BOLT, Hex

$

$

Currently unavailable

54

Murray MU015X88MA

NUT, Flange

$

$

Currently unavailable

55

Murray MU1401051E701MA

BRACKET, Torque Reactor

$

$

Currently unavailable

$

$

Currently unavailable

57

Murray MU017X38MA

WASHER, Shift Yoke

$

$

Currently unavailable

$

$

Currently unavailable

59

Murray MU1401351ZMA

YOKE, Shift

$

$

Currently unavailable

60

$

$

Currently unavailable

61

TRANSAXLE, Peerless **

$

$

Not available

62

Murray MU1401042E701MA

BRACKET, Right Transaxle

$

$

Currently unavailable

$

$

Currently unavailable

64

$

$

Currently unavailable

65

Murray MU056534MA

KEY, Square

$

$

Currently unavailable

66

Murray MU1401103MA

SPACER, Rear Wheel

$

$

Currently unavailable

67

Murray MU1401120MA

WHEEL, Rear -15"

$

$

Currently unavailable

68

$

$

Currently unavailable

69

$

$

Currently unavailable

70

$

$

Currently unavailable

71

Murray MU1401260E701MA

PLATE, Reinforcement

$

$

Currently unavailable

72

Murray MU092378MA

LOCK, Screw

$

$

Currently unavailable

$

$

Currently unavailable

74

Murray MU1401357MA

TUBE, Exhaust

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

77

Murray MU1401396MA

SHIELD, Heat

$

$

Currently unavailable
