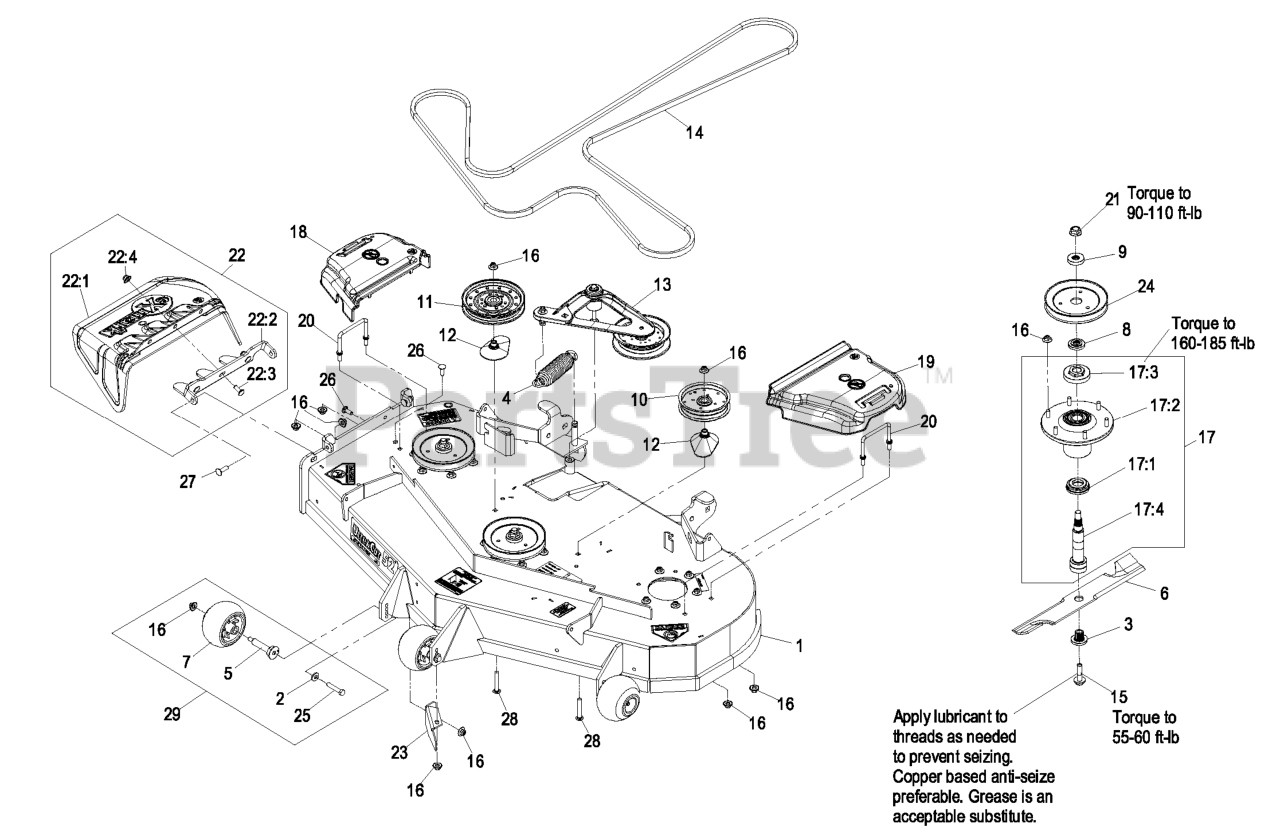

LZZ34KC606 - Exmark 60" Lazer Z Z-Series Zero-Turn Mower, 34hp Kohler (SN: 850000 - 919999) (2010) 52" Deck Group Parts Diagram

60" Lazer Z Z-Series Zero-Turn Mower, 34hp Kohler

52" Deck Group Parts Diagram

  • Title

1

Exmark 109-9149

ASM,DECK W/ DECALS 52

$4085.99

$

Usually ships in 3-6 days

0

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

3

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

4

Exmark 116-0133

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 9

0

5

Exmark 109-9851

126-2928
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 7

0

6

Exmark 103-6402

103-6402-S
(Superseded to 103-6402-S)

$30.99

$

In Stock, Qty 20+

0

Exmark 103-6392

103-6392-S
(Superseded to 103-6392-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK526.

$30.99

$

In Stock, Qty 20+

0

Exmark 103-6387

103-6387-S
(Superseded to 103-6387-S)

$31.99

$

In Stock, Qty 11

0

Exmark 103-6382

103-6382-S
(Superseded to 103-6382-S)

$36.99

$

In Stock, only 4 left!

0

Exmark 103-6397

116-5175-S
(Superseded to 116-5175-S)

$30.99

$

In Stock, only 1 left!

0

7

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 5

0

8

Exmark 103-9522

SPACER,SPLINED STEPPED

$6.99

$

In Stock, Qty 9

0

9

Exmark 103-9523

SPACER,SPLINED

$8.49

$

In Stock, only 2 left!

0

10

Exmark 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 7

0

11

Exmark 1-633109

126-7685
(Superseded to 126-7685)

$62.99

$

In Stock, Qty 8

0

12

Exmark 109-2872

SPACER-PULLEY

$22.99

$

In Stock, only 3 left!

0

13

Exmark 109-2883

116-3755
(Superseded to 116-3755)

$254.99

$

In Stock, only 1 left!

0

14

Exmark 109-4994

BELT,V-B X 186.00"
(Superseded to 135-5776-SL)

$152.99

$

In Stock, Qty 16

0

15

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

16

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

17

Exmark 109-6917

ASM,SPINDLE HOUSING

$521.99

$

In Stock, Qty 7

0

17:1

Exmark 103-9504

GUARD,BOTTOM

$11.99

$

In Stock, only 2 left!

0

17:2

Exmark 103-9539

ASM,CUTTER HOUSING

$374.99

$

In Stock, only 2 left!

0

17:3

Exmark 109-0916

NUT, SPINDLE 7/8-14

$24.99

$

In Stock, only 1 left!

0

17:4

Exmark 109-6881

SPINDLE,DOUBLE SPLINE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles and bearings. DO NOT use a copper or nickel based anti-seize.

$129.99

$

In Stock, only 1 left!

0

18

Exmark 109-6935

COVER-BELT, RH

$38.99

$

In Stock, only 1 left!

0

19

Exmark 109-6936

COVER-BELT, LH

$38.99

$

In Stock, only 1 left!

0

20

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

21

Exmark 109-7033

NUT-FLANGE, CENTERLOCK

$2.99

$

In Stock, Qty 20+

0

22

Exmark 109-7188

ASM,DISCHARGE CHUTE

$104.99

$

In Stock, only 2 left!

0

22:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 7

0

22:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$51.99

$

In Stock, only 1 left!

0

22:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

22:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

23

Exmark 109-9915-01

BAFFLE,DISCHARGE 52/60

$33.99

$

Usually ships in 3-6 days

0

24

Exmark 116-0185

SHEAVE,BLADE DRIVE

$59.99

$

Usually ships in 3-6 days

0

25

Exmark 3211-46

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

27

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

28

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, only 3 left!

0

29

Exmark 109-2098

116-9981
(Superseded to 116-9981)

$52.99

$

In Stock, Qty 20+

0

30

Exmark 109-9645

Asm, Deck Complete

$

$

Currently unavailable
