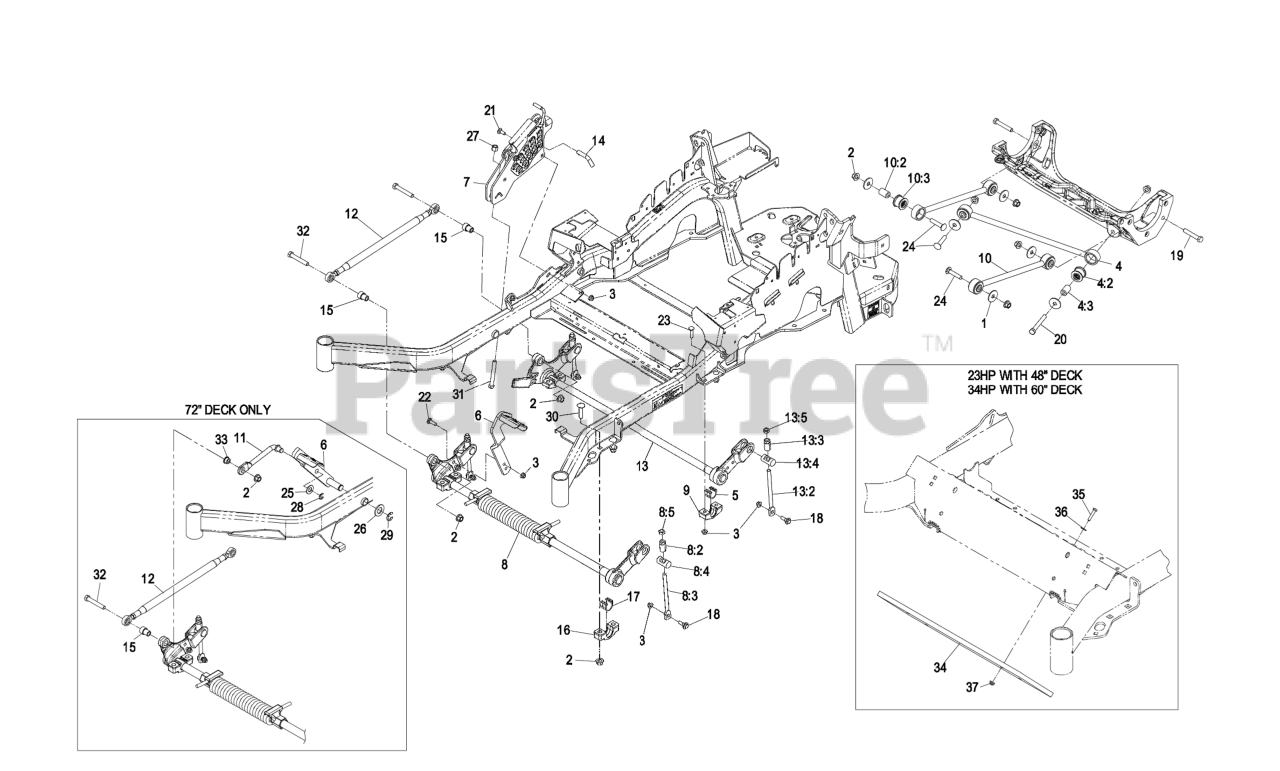

LZZ34KA726 - Exmark 72" Lazer Z Z-Series Zero-Turn Mower, 34hp Kawasaki (SN: 790000 - 849999) (2009) Deck Support Group Parts Diagram

72" Lazer Z Z-Series Zero-Turn Mower, 34hp Kawasaki

Deck Support Group Parts Diagram

  • Title

1

Exmark 86-1990

WASHER-THRUST

$3.99

$

In Stock, only 3 left!

0

2

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 109-5013

PANHARD ROD ASM

$142.99

$

In Stock, Qty 6

0

4:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 15

0

4:3

Exmark 109-5010

SPACER

$12.99

$

In Stock, Qty 6

0

5

Exmark 109-7173

BEARING-CROSS SHAFT, REAR

$5.49

$

In Stock, Qty 6

0

6

Exmark 109-7202-01

LEVER-FOOT

$

$

Not available

Exmark 109-8737-01

116-1919-01
(Superseded to 116-1919-01)

$99.99

$

Usually ships in 3-6 days

0

7

Exmark 109-7438

HOC ASM

$273.99

$

In Stock, only 1 left!

0

8

Exmark 116-0356

FRONT DECK LIFT ASM

$863.99

$

Usually ships in 3-6 days

0

Exmark 116-0358

116-1651
(Superseded to 116-1651)

$848.99

$

Usually ships in 3-6 days

0

8:2

Exmark 109-7840

ADJUSTER-LIFT, DECK

$7.99

$

In Stock, Qty 10

0

8:3

Exmark 109-8007

LINK-ADJUSTER, DECK LIFT

$15.99

$

In Stock, Qty 11

0

8:4

Exmark 109-8353

TRUNNION

$14.99

$

In Stock, Qty 6

0

8:5

Exmark 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

9

Exmark 116-0818-03

132-4719
(Superseded to 132-4719)

$44.99

$

In Stock, only 3 left!

0

10

Exmark 109-7952

DECK STRUT ASM

$144.99

$

In Stock, only 2 left!

0

10:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 15

0

10:3

Exmark 109-5010

SPACER

$12.99

$

In Stock, Qty 6

0

11

Exmark 109-8004

LINK-LEVER, FOOT

$101.99

$

Usually ships in 3-6 days

0

12

Exmark 116-0806

SIDE LINK ASM

$185.99

$

Usually ships in 3-6 days

0

13

Exmark 116-0362

116-2257
(Superseded to 116-2257)

$

$

Not available

13:2

Exmark 109-8007

LINK-ADJUSTER, DECK LIFT

$15.99

$

In Stock, Qty 11

0

13:3

Exmark 109-7840

ADJUSTER-LIFT, DECK

$7.99

$

In Stock, Qty 10

0

13:4

Exmark 109-8353

TRUNNION

$14.99

$

In Stock, Qty 6

0

13:5

Exmark 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

14

Exmark 109-8757

PIN-HOC

$8.99

$

In Stock, only 3 left!

0

15

Exmark 116-0795

BUSHING-FLANGE

$11.99

$

Usually ships in 3-6 days

0

16

Exmark 109-9409

SUPPORT-CROSS SHAFT, BEARING

$14.99

$

In Stock, only 4 left!

0

17

Exmark 109-9410

BEARING-CROSS SHAFT, FRON

$5.49

$

In Stock, Qty 13

0

18

Exmark 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 11

0

19

Exmark 325-12

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

20

Exmark 325-17

SCREW-HH

$5.99

$

In Stock, only 1 left!

0

21

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

22

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

23

Exmark 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

24

Exmark 3233-34

SCREW-CARR

$9.49

$

In Stock, only 3 left!

0

25

Exmark 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

26

Exmark 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

27

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

28

Exmark 32120-19

E-RING

$2.99

$

In Stock, Qty 14

0

29

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 7

0

30

Exmark 3233-37

SCREW-CARR, SHORT NECK

$5.49

$

Usually ships in 3-6 days

0

31

Exmark 116-0559

BOLT-TAP

$6.49

$

Usually ships in 3-6 days

0

32

Exmark 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

33

Exmark 116-0796

BUSHING-FLANGE

$12.99

$

Usually ships in 3-6 days

0

34

Exmark 116-0827-01

WEIGHT,TOE BOARD

$271.99

$

Usually ships in 3-6 days

0

35

Exmark 321-8

SCREW-HH

$3.99

$

In Stock, Qty 9

0

36

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
