LZZ29KA606LP - Exmark 60" Lazer Z Z-Series Zero-Turn Mower, Kawasaki Propane (SN: 850000 - 919999) (2010) LZAS-LP - 60" Deck Group Parts Diagram

60" Lazer Z Z-Series Zero-Turn Mower, Kawasaki Propane

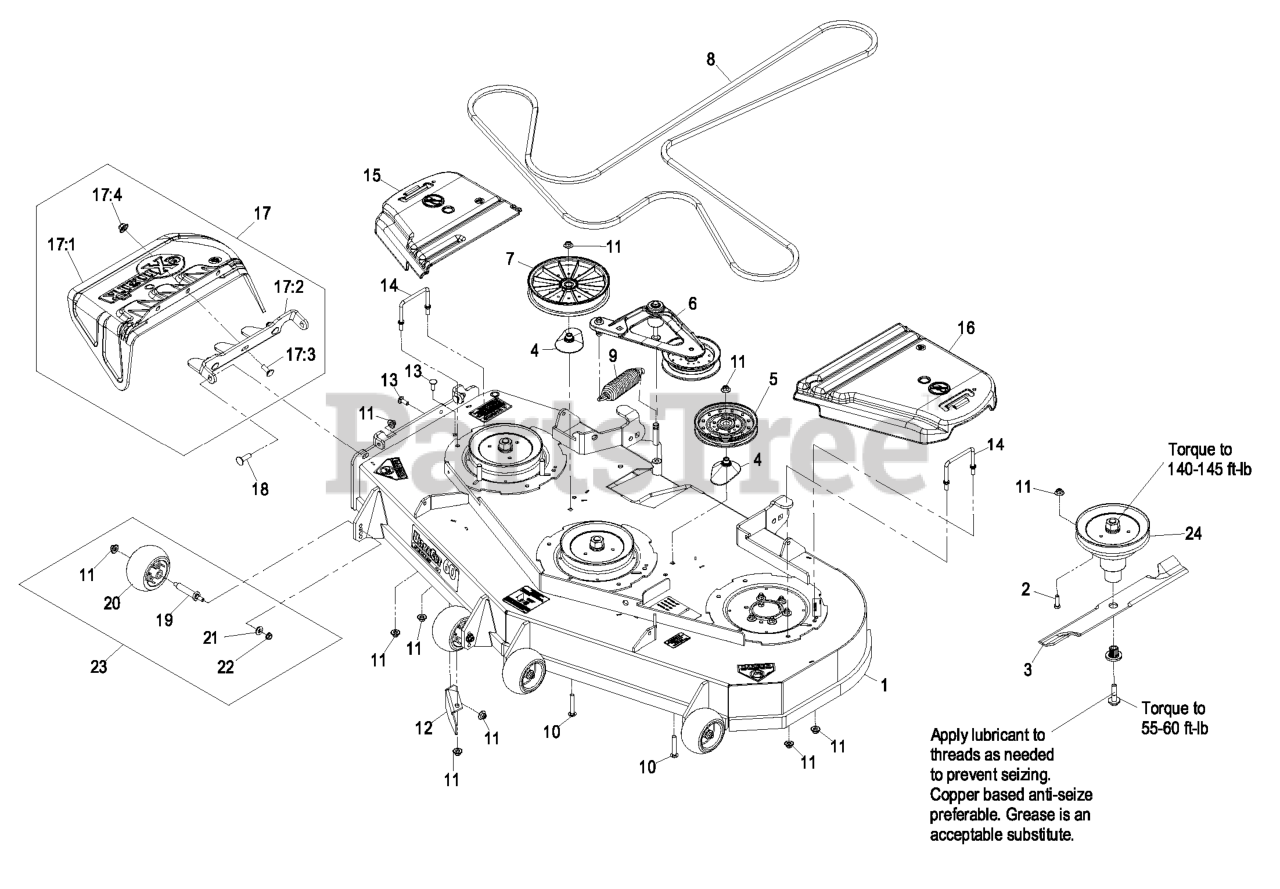

LZAS-LP - 60" Deck Group Parts Diagram

  • Title

1

Exmark 109-9013

DECK W/ DECALS ASM-604

$

$

Not available

2

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

3

Exmark 103-6403

103-6403-S
(Superseded to 103-6403-S)

$31.99

$

In Stock, Qty 20+

0

Exmark 103-6393

103-6393-S
(Superseded to 103-6393-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK604.

$30.99

$

In Stock, Qty 20+

0

Exmark 103-6388

103-6388-S
(Superseded to 103-6388-S)

$37.99

$

In Stock, Qty 20+

0

Exmark 103-6383

103-6383-S
(Superseded to 103-6383-S)

$34.99

$

In Stock, Qty 5

0

Exmark 103-6398

116-5174-S
(Superseded to 116-5174-S)

$30.99

$

In Stock, only 1 left!

0

4

Exmark 109-2872

SPACER-PULLEY

$22.99

$

In Stock, only 4 left!

0

5

Exmark 1-633109

126-7685
(Superseded to 126-7685)

$62.99

$

In Stock, Qty 12

0

6

Exmark 109-2883

116-3755
(Superseded to 116-3755)

$254.99

$

In Stock, only 1 left!

0

7

Exmark 109-0996

PULLEY,IDLER 8"FLAT

$69.99

$

In Stock, Qty 10

0

8

Exmark 109-8073

BELT,V-5V-198.75
(Superseded to 135-5774-SL)

$169.99

$

Usually ships in 3-6 days

0

9

Exmark 116-0133

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 9

0

10

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, only 4 left!

0

11

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

12

Exmark 109-9915-01

BAFFLE,DISCHARGE 52/60

$33.99

$

Usually ships in 3-6 days

0

13

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

14

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

15

Exmark 116-0094

COVER-BELT, RH

$86.99

$

In Stock, only 4 left!

0

16

Exmark 109-6938

COVER-BELT, LH

$96.99

$

In Stock, only 2 left!

0

17

Exmark 109-7188

ASM,DISCHARGE CHUTE

$104.99

$

In Stock, only 2 left!

0

17:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 7

0

17:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$51.99

$

In Stock, only 1 left!

0

17:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

17:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

18

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

19

Exmark 99-2842

126-2928
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 7

0

20

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 16

0

21

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

22

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Exmark 103-4051

116-9981
(Superseded to 116-9981)

$52.99

$

In Stock, Qty 20+

0

24

Exmark 109-9019

KIT,CUTTER HOUSING 60

$266.99

$

In Stock, Qty 5

0

25

Exmark 109-9646

Asm, Deck Complete 604

$

$

Currently unavailable
