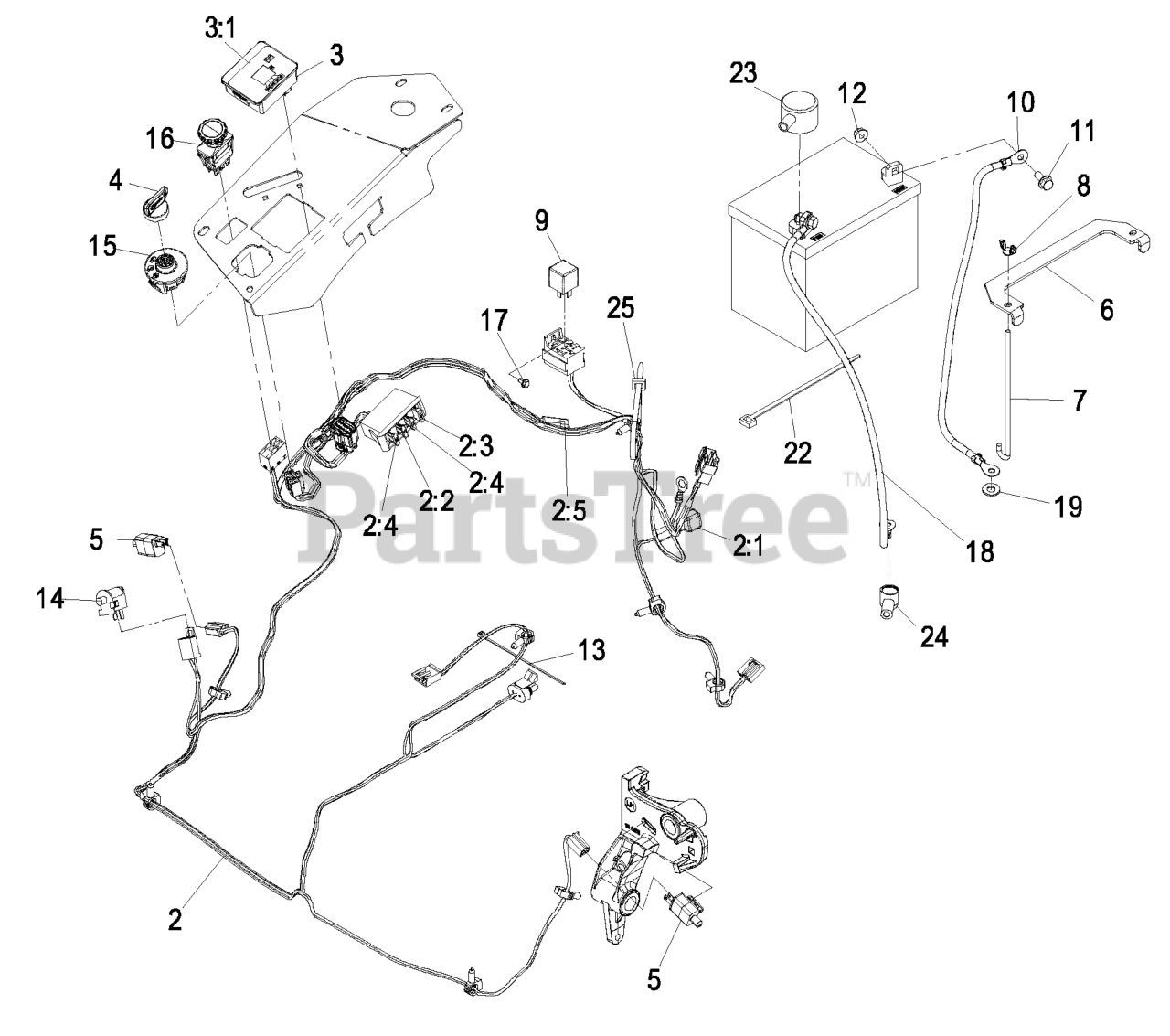

LZZ29KA606LP - Exmark 60" Lazer Z Z-Series Zero-Turn Mower, Kawasaki Propane (SN: 850000 - 919999) (2010) Electrical Group Parts Diagram

60" Lazer Z Z-Series Zero-Turn Mower, Kawasaki Propane

Electrical Group Parts Diagram

  • Title

2

Exmark 115-2796

116-6009
(Superseded to 116-6009)

Note: Use dielectric grease on all wiring harness connectors.

$274.99

$

In Stock, Qty 10

0

2:1

Exmark 103-3895

DIODE

$68.99

$

In Stock, only 3 left!

0

2:2

Exmark 218-578

FUSE-BLADE, 10 AMP

$3.49

$

In Stock, Qty 6

0

2:3

Exmark 109355

FUSE-BLADE, 15 AMP

$3.99

$

In Stock, Qty 10

0

2:4

Exmark 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 14

0

2:5

Exmark 116-0053

CAP-PLUG

$42.99

$

Usually ships in 3-6 days

0

3

Exmark 116-1356

Asm, Fuel/Hour Meter

$

$

Currently unavailable

3:1

Exmark 116-3446

DECAL-METER, HOUR

$63.99

$

Usually ships in 3-6 days

0

4

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

Exmark 63-8360

Key, Ignition

$5.99

$

In Stock, Qty 20+

0

5

Exmark 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

6

Exmark 116-0042-03

STRAP-TIE DOWN, BATTERY

$23.99

$

In Stock, only 1 left!

0

7

Exmark 1-633651

BOLT-HOLDDOWN

$8.49

$

In Stock, Qty 6

0

8

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

9

Exmark 1-643275

RELAY

$25.99

$

In Stock, Qty 20+

0

10

Exmark 114-1218

CABLE-BATTERY, NEGATIVE

$25.99

$

In Stock, only 4 left!

0

11

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

12

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

14

Exmark 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

15

Exmark 117-2221

137-4100
(Superseded to 137-4100)

$29.99

$

In Stock, Qty 20+

0

16

Exmark 116-0124

SWITCH-PTO, 10 AMP
(Superseded to 135-3653)

$72.99

$

In Stock, Qty 20+

0

17

Exmark 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

18

Exmark 115-3864

CABLE-BATTERY, POSITIVE

$33.99

$

In Stock, Qty 7

0

19

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

23

Exmark 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 2 left!

0

24

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 1 left!

0
