Exmark LZX993EBV726X1 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Briggs & Stratton (SN: 413950474 & Above) (Rev A) (2023) Engine Assembly Parts Lookup with Diagrams

1

Engine-Vanguard

Note: Not serviced separately

$

Not available 

1:1

Exmark 142-6842

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

1:2

Exmark 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

1:3

Exmark 142-6844

SENSOR-O2

$131.99

$

Usually ships in 3-6 days

1:4

Exmark 142-7451

FILTER-FUEL

$10.99

$

Usually ships in 3-6 days

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

3

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

4

Exmark 142-5876

MUFFLER

$352.99

$

Usually ships in 3-6 days

5

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

6

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

7

Exmark 110-0824

R-CLAMP

$5.49

$

Usually ships in 3-6 days

8

Exmark 126-4185

CLUTCH KIT

$711.99

$

In Stock, only 1 left!

9

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 8

10

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

11

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

$5.49

$

In Stock, Qty 6

12

Exmark 3231-42

SCREW-CARR

$2.99

$

In Stock, Qty 20+

13

Exmark 116-3319

SPACER

$25.99

$

Usually ships in 3-6 days

14

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

15

Exmark 93-5108

GROMMET-RUBBER

$16.99

$

Usually ships in 3-6 days

16

Exmark 116-3317-01

LINK-ANCHOR, CLUTCH

$15.99

$

Usually ships in 3-6 days

17

Exmark 116-3318

SPACER

$19.99

$

In Stock, only 3 left!

18

Exmark 116-3331-01

BELT-GUIDE

$27.99

$

In Stock, only 1 left!

19

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

20

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

21

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

22

Exmark 109-0275

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

23

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

24

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

25

Exmark 116-1972

ASM,THROTTLE CABLE

$46.99

$

In Stock, Qty 11

26

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

27

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

28

Exmark 142-6608-03

MOUNT-TANK, OIL

$50.99

$

Usually ships in 3-6 days

29

Exmark 142-6275

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

30

Exmark 142-6840

RESERVOIR-OIL

$771.99

$

In Stock, only 1 left!

30:1

Exmark 142-7452

OIL DIPSTICK ASM

$23.99

$

Usually ships in 3-6 days

30:2

Exmark 142-7453

OIL TANK CAP ASM

$30.99

$

Usually ships in 3-6 days

31

Exmark 142-6841

FILTER-OIL

$39.99

$

In Stock, only 2 left!

32

Exmark 103-6602

VALVE-OIL DRAIN

$86.99

$

Usually ships in 3-6 days

33

Exmark 142-6009

ISOLATOR-TANK

$22.99

$

Usually ships in 3-6 days

34

Exmark 1-213069

WASHER

$2.99

$

In Stock, only 2 left!

35

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

36

Exmark 142-7420

HOSE-SUPPLY

$22.99

$

Usually ships in 3-6 days

37

Exmark 142-7421

HOSE-SCAVENGE

$63.99

$

Usually ships in 3-6 days

38

Exmark 142-6393

HOSE-VENT

$24.99

$

Usually ships in 3-6 days

39

Exmark 142-6731-03

GUARD-HOSE

$25.99

$

Usually ships in 3-6 days

40

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 7

41

Exmark 120-1959

CLAMP

$3.49

$

Usually ships in 3-6 days

42

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

43

Exmark 142-7806

DECAL-OIL GUARD

$4.49

$

Usually ships in 3-6 days

44

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

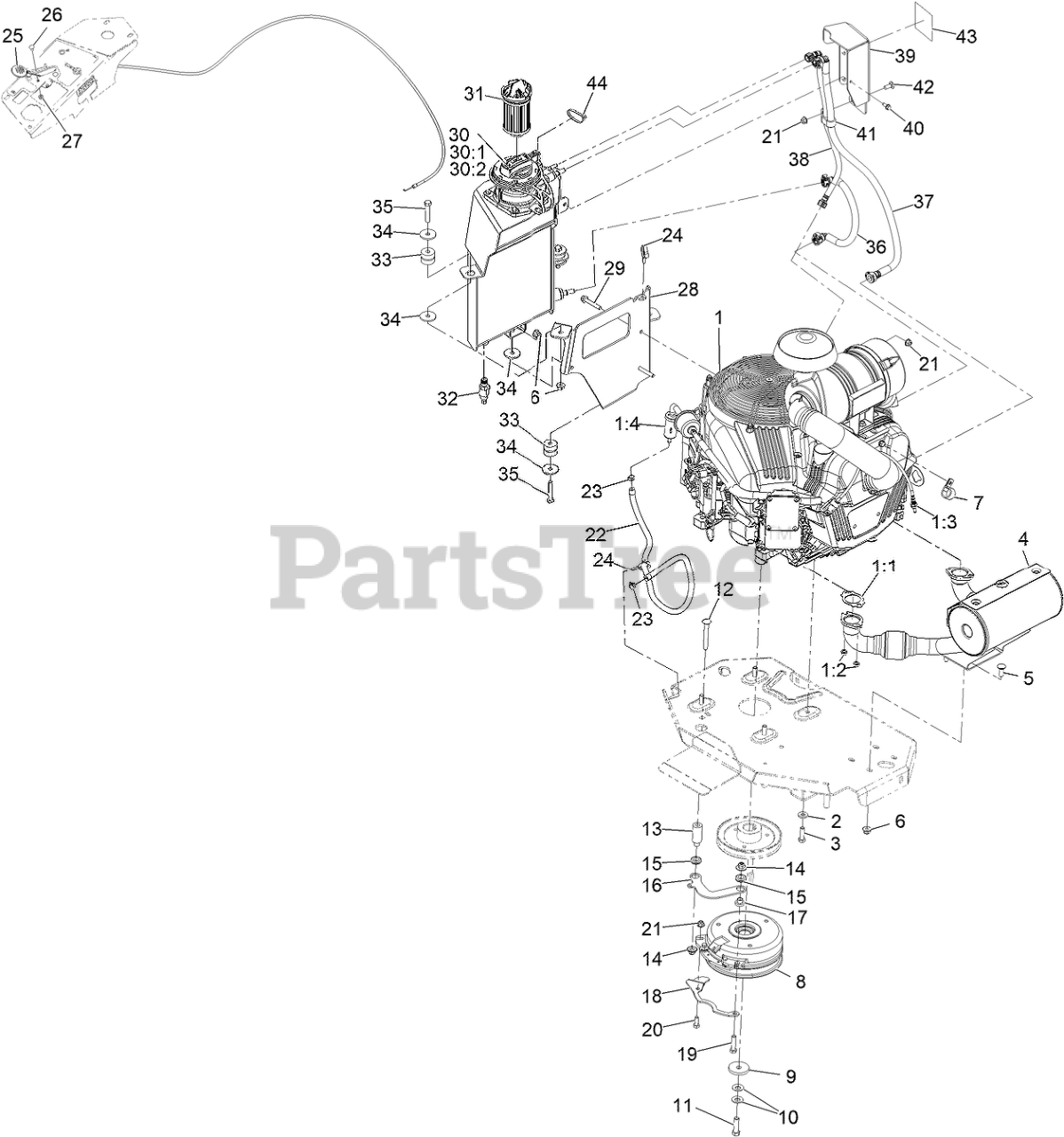

LZX993EBV726X1 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Briggs & Stratton (SN: 413950474 & Above) (Rev A) (2023) Engine Assembly Parts Diagram

Engine Assembly Parts Diagram
