LZX993EBV726X1 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Briggs & Stratton (SN: 411294212 - 413950473) (Rev B) (2022) Main Frame Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Briggs & Stratton

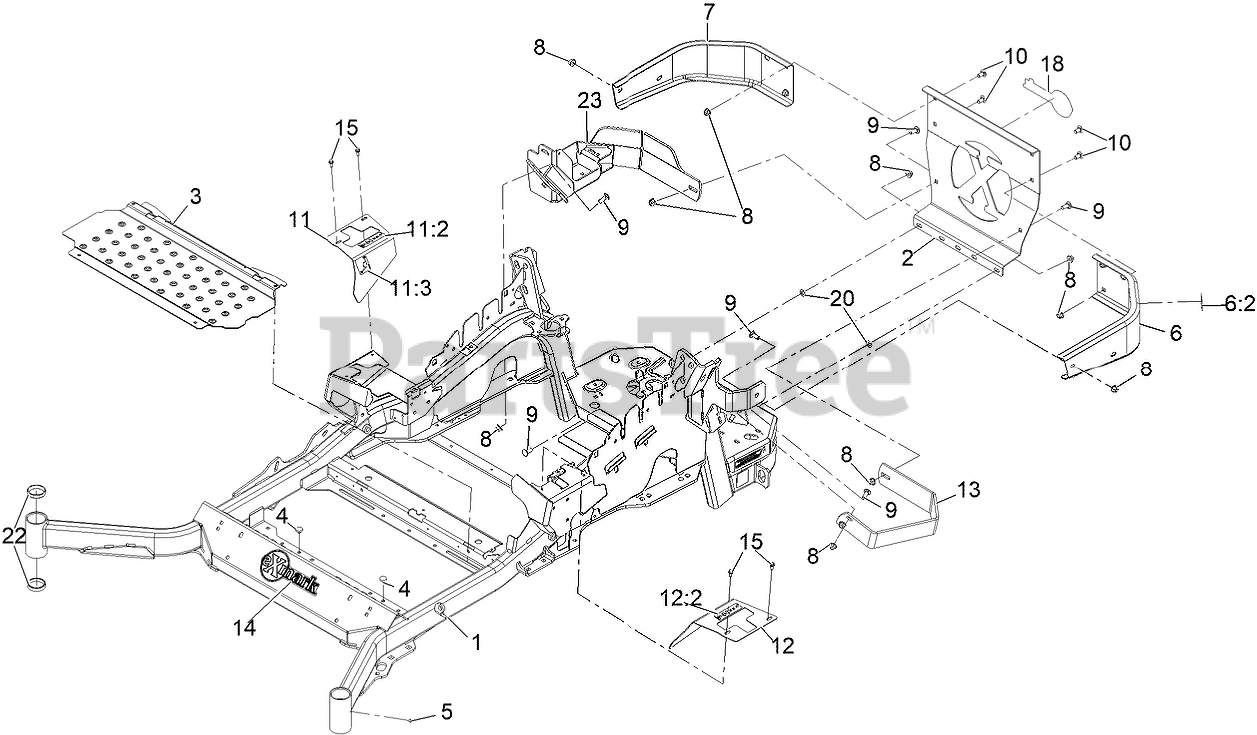

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 142-7266

MAINFRAME SERVICE ASM - 72

$2392.99

$

Usually ships in 3-6 days

0

2

Exmark 109-8863-03

PLATE,REAR GUARD

$163.99

$

Usually ships in 3-6 days

0

3

Exmark 116-8898-01

FLOORPAN

$108.99

$

Usually ships in 3-6 days

0

4

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

5

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

6

Exmark 116-0180

LH BUMPER ASM

$144.99

$

Usually ships in 3-6 days

0

6:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

7

Exmark 116-0057-03

BUMPER-RH

$220.99

$

In Stock, only 1 left!

0

8

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

10

Exmark 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

11

Exmark 116-5899

RH MOTION CONTROL COVER ASM

$49.99

$

Usually ships in 3-6 days

0

11:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

11:3

Exmark 116-5988

DECAL-PARK BRAKE, CE

$14.99

$

In Stock, only 1 left!

0

12

Exmark 116-0580

LH MOTION CONTROL COVER ASM

$28.99

$

Usually ships in 3-6 days

0

12:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

13

Exmark 126-2067-03

GUARD-MUFFLER

$60.99

$

Usually ships in 3-6 days

0

14

Exmark 135-2274

DECAL-EXMARK

$25.99

$

In Stock, only 4 left!

0

15

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 7

0

18

Exmark 126-6877

DECAL, EXMARK LOGO

$7.49

$

In Stock, Qty 10

0

20

Exmark 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

22

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 15

0

23

Exmark 142-6295-03

BATTERY GUARD ASM

$176.99

$

Usually ships in 3-6 days

0
