LZX993EBV726X1 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Briggs & Stratton (SN: 411294212 - 413950473) (Rev B) (2022) Electrical Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Briggs & Stratton

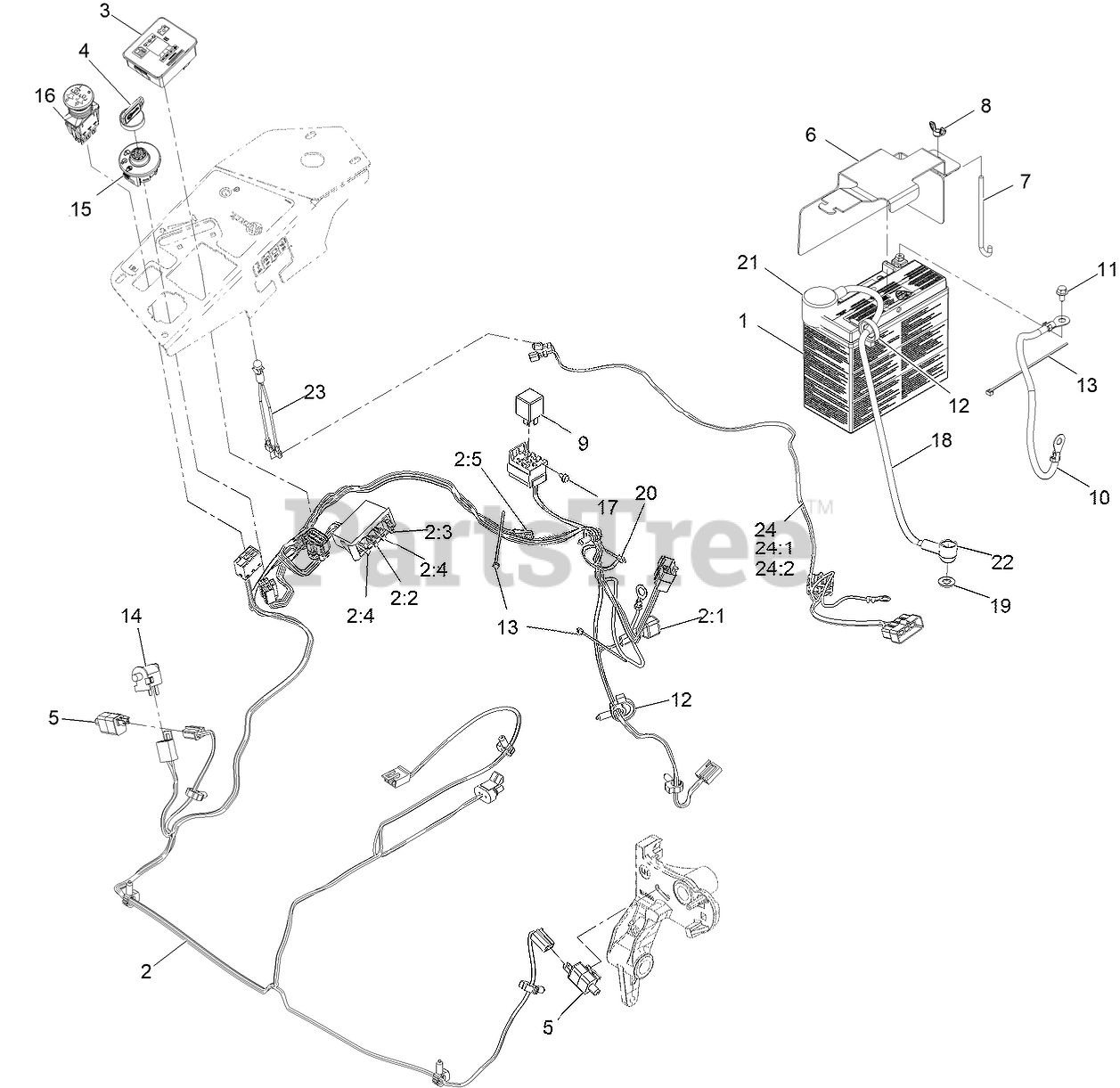

Electrical Assembly Parts Diagram

  • Title

1

Exmark 142-7427

BATTERY-AGM
(Superseded to 142-7345)

$244.90

$

Usually ships in 4-12 days

0

2

Exmark 116-6009

HARNESS-WIRE, MAIN

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$258.99

$

In Stock, only 2 left!

0

2:1

Exmark 103-3895

DIODE

$64.99

$

In Stock, Qty 5

0

2:2

Exmark 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

2:3

Exmark 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

2:4

Exmark 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 8

0

2:5

Exmark 116-0053

CAP-PLUG

$39.99

$

Usually ships in 3-6 days

0

3

Exmark 117-3882

FUEL/HOUR METER ASM

$157.99

$

Usually ships in 3-6 days

0

4

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

4

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 7

0

5

Exmark 110-6765

SWITCH

$13.99

$

In Stock, Qty 11

0

6

Exmark 142-6707-03

BRACKET-HOLDDOWN, BATTERY

$19.99

$

Usually ships in 3-6 days

0

7

Exmark 142-6406

BOLT-HOLDDOWN

$8.49

$

Usually ships in 3-6 days

0

8

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 15

0

9

Exmark 1-643275

RELAY

$23.99

$

In Stock, Qty 6

0

10

Exmark 112-7063

Cable-Battery, Black

$47.99

$

Usually ships in 3-6 days

0

11

Exmark 126-2713

SCREW-HHF

$5.49

$

In Stock, only 3 left!

0

12

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

13

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

14

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 10

0

15

Exmark 137-4100

SWITCH-IGNITION

$35.99

$

In Stock, Qty 20+

0

16

Exmark 135-3653

SWITCH, PTO 10A

$68.99

$

In Stock, Qty 9

0

17

Exmark 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

18

Exmark 115-3864

CABLE-BATTERY, POSITIVE

$30.99

$

In Stock, only 1 left!

0

19

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

20

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

21

Exmark 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 3 left!

0

22

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

23

Exmark 1-643267

INDICATOR-LED, RED

$25.99

$

In Stock, only 1 left!

0

24

Exmark 142-6440

HARNESS-INDICATOR LIGHT

$58.99

$

Usually ships in 3-6 days

0

24:1

Exmark 32180-209

Tubing, Conv, 1/4", Hi Temp, Uv Inhibit

$

$

Currently unavailable

24:2

Exmark 32180-211

Tubing, Conv, 7/16", Hi Temp, Uv Inhibit

$

$

Currently unavailable

99

Exmark 142-7682

HARDWARE KIT, BATTERY

Note: Not illustrated

$8.49

$

Usually ships in 3-6 days

0
