LZX993EBV606X1 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Briggs & Stratton (SN: 413950474 & Above) (Rev A) (2023) Hydraulic Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Briggs & Stratton

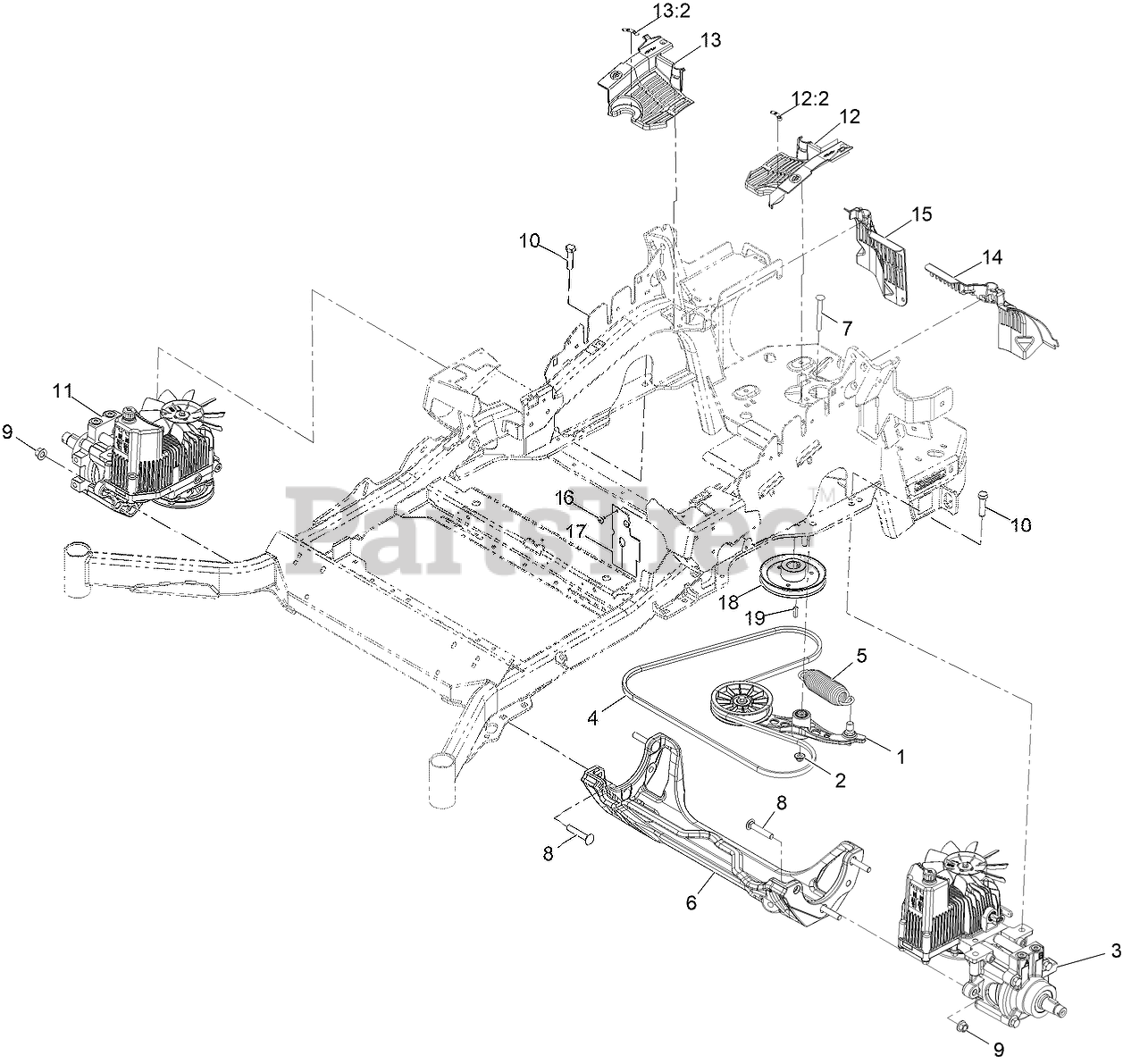

Hydraulic Assembly Parts Diagram

  • Title
1

Exmark 116-1255

PUMP IDLER ASM

$217.99

$

In Stock, only 4 left!

0

2

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

Usually ships in 3-6 days

0

3

Exmark 135-7907

HYDRO-LH

$3541.99

$

Usually ships in 3-6 days

0

4

$45.99

$

In Stock, Qty 20+

0

5

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 11

0

6

Exmark 116-7558

CRADLE-HYDRO

$206.99

$

Usually ships in 3-6 days

0

7

Exmark 116-1502

BOLT-SHOULDER, CARRIAGE 3/8-16 X 3 1/2

$7.99

$

In Stock, only 4 left!

0

8

Exmark 126-0095

SCREW-CARR

$2.99

$

In Stock, only 2 left!

0

9

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

10

Exmark 325-8

SCREW-HH

$5.49

$

In Stock, Qty 7

0

11

Exmark 135-7908

HYDRO-RH

$3541.99

$

Usually ships in 3-6 days

0

12

Exmark 116-0170

LH HYDRO GUARD ASM

$85.99

$

In Stock, only 3 left!

0

12:2

Exmark 116-8726

DECAL-OIL, HYDRO

$5.49

$

In Stock, Qty 20+

0

13

Exmark 116-0171

RH HYDRO GUARD ASM

$85.99

$

Usually ships in 3-6 days

0

13:2

Exmark 116-8726

DECAL-OIL, HYDRO

$5.49

$

In Stock, Qty 20+

0

14

Exmark 142-6499

GUARD-HYDRO, REAR LH

$23.99

$

Usually ships in 3-6 days

0

15

Exmark 109-9058

GUARD-HYDRO, REAR (RH)

$25.99

$

In Stock, only 4 left!

0

16

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

17

Exmark 116-2362

DEFLECTOR-AIR FLOW

$6.49

$

Usually ships in 3-6 days

0

18

Exmark 142-9445

SHEAVE, W/HUB

$51.99

$

In Stock, only 1 left!

0

$2.99

$

In Stock, only 1 left!

0

99

Exmark 109-9828

OIL-HYD, (QUART)

Note: Not illustrated

$18.99

$

In Stock, Qty 8

0

99

Exmark 116-0164

FILTER-HYDRO

Note: Not illustrated

$70.99

$

In Stock, Qty 20+

0

99

Exmark 116-1218

OIL-HYD, 1 GALLON

Note: Not illustrated

$70.99

$

In Stock, Qty 18

0

99

Exmark 126-8103

KIT-HYDRO SERVICE, NO BELT

Note: Not illustrated

$241.99

$

In Stock, Qty 8

0
