LZX980KC726 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kohler CV980 (SN: 312000000 - 312999999) (2012) Roll-Over Protection System Assembly No. 116-0230 Parts Diagram
72" Lazer Z X-Series Zero-Turn Mower, Kohler CV980

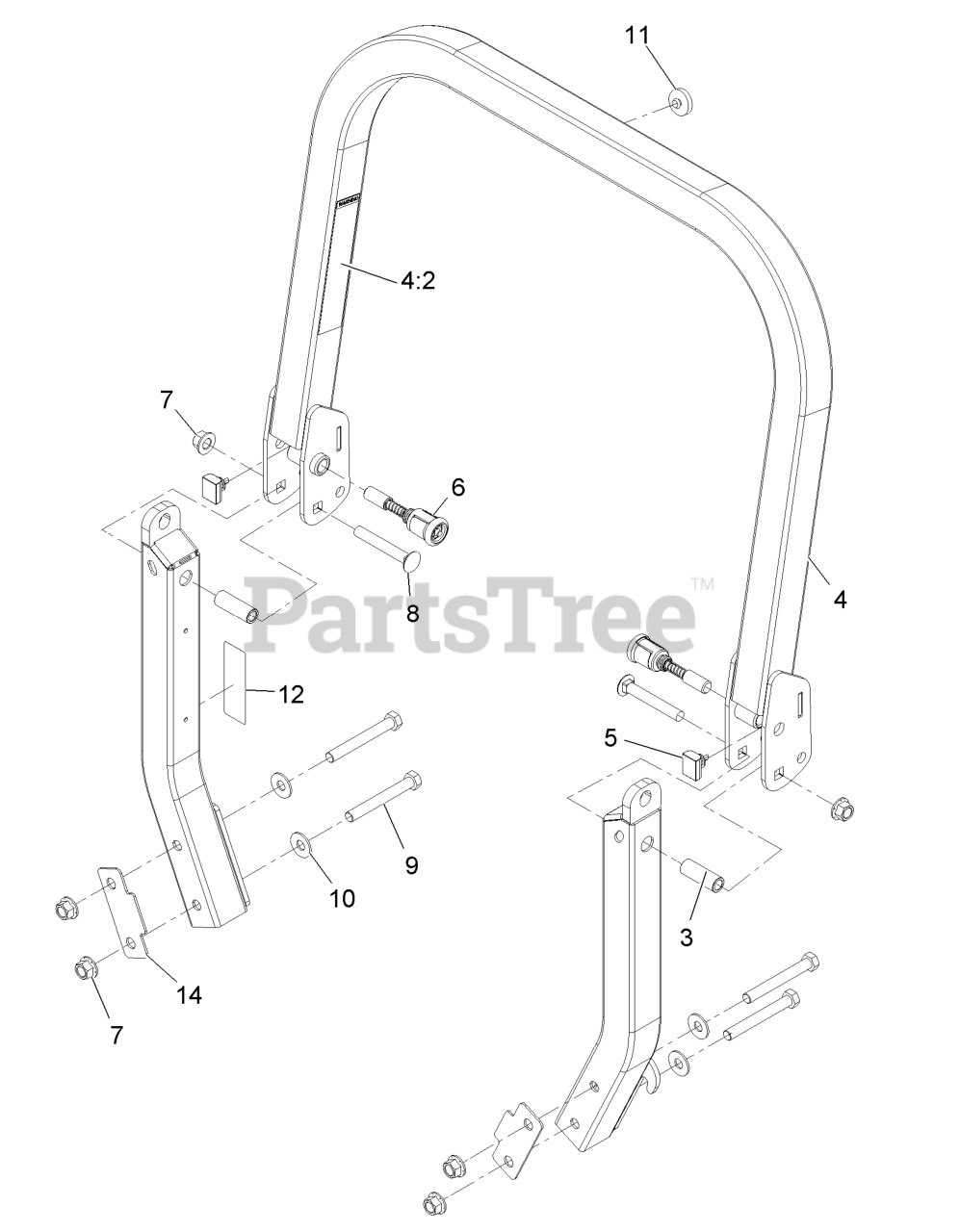

Roll-Over Protection System Assembly No. 116-0230 Parts Diagram
Exmark 109-6653
SPACER
$6.49
$
In Stock, only 2 left!
Exmark 116-0019
UPPER ROPS ASM
$499.99
$
Usually ships in 3-6 days
Exmark 107-2102
DECAL-WARNING, FOLDING RO
$9.99
$
In Stock, only 1 left!
Exmark 109-5337
BUMPER-ROPS
$6.49
$
In Stock, only 4 left!
Exmark 116-0104
PIN-SPRING
$47.99
$
In Stock, only 1 left!
Exmark 99-5107
Nut-Lock 1/2-13
$1.99
$
In Stock, Qty 20+
Exmark 3233-10
SCREW-CARR
$7.49
$
In Stock, only 2 left!
Exmark 325-17
SCREW-HH
$6.49
$
In Stock, Qty 20+
Exmark 109-9505
WASHER-SPRING
$5.49
$
In Stock, only 3 left!
Exmark 109-9233
BUMPER-PUSH-IN, RUBBER
$5.49
$
In Stock, Qty 17
Exmark 116-0090
DECAL-CAUTION
$5.49
$
Usually ships in 3-6 days
Exmark 116-0960
SPACER
$7.99
$
Usually ships in 3-6 days
