LZX980KC606 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kohler CV980 (SN: 313000000 - 313999999) (2013) Fuel Tank Mounting Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kohler CV980

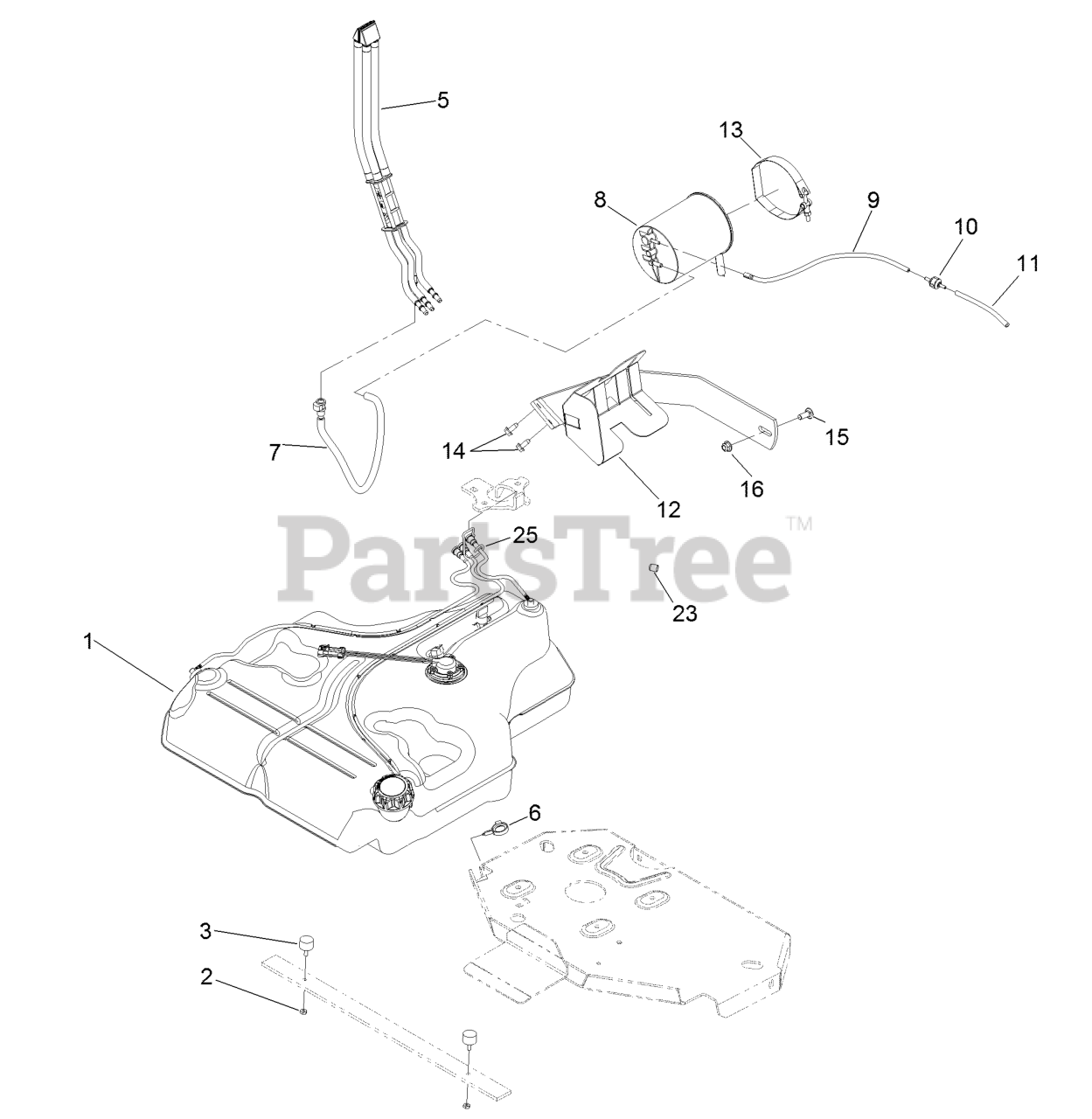

Fuel Tank Mounting Assembly Parts Diagram

  • Title

1

Exmark 116-3979

135-0643
(Superseded to 135-0643)

$775.99

$

Usually ships in 3-6 days

0

2

Exmark 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

3

Exmark 116-6380

1-523420
(Superseded to 1-523420)

$14.99

$

Usually ships in 3-6 days

0

5

Exmark 109-9491

FUEL MANIFOLD VENT ASM
(Superseded to 135-7569)

$117.99

$

Usually ships in 3-6 days

0

6

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

7

Exmark 116-1702

VENT HOSE ASM

$34.99

$

Usually ships in 3-6 days

0

8

Exmark 116-1442

CANISTER-CARBON, 1200CC

$160.99

$

Usually ships in 3-6 days

0

9

Exmark 116-2963

HOSE-VENT, FORMED

$13.99

$

In Stock, only 1 left!

0

10

Exmark 115-7868

133-8499
(Superseded to 133-8499)

$15.99

$

In Stock, only 2 left!

0

11

Exmark 119-4235

HOSE-VENT, FORMED

$5.49

$

Usually ships in 3-6 days

0

12

Exmark 116-1433-03

MOUNT-CANISTER

$213.99

$

Usually ships in 3-6 days

0

13

Exmark 116-2228

CLAMP, T-BOLT

$46.99

$

Usually ships in 3-6 days

0

14

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

15

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

16

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Exmark 116-4464

PLUG-PORT

$1.49

$

Usually ships in 3-6 days

0

25

Exmark 116-6005

RETAINER-LINE, VAPOR

$5.49

$

Usually ships in 3-6 days

0
