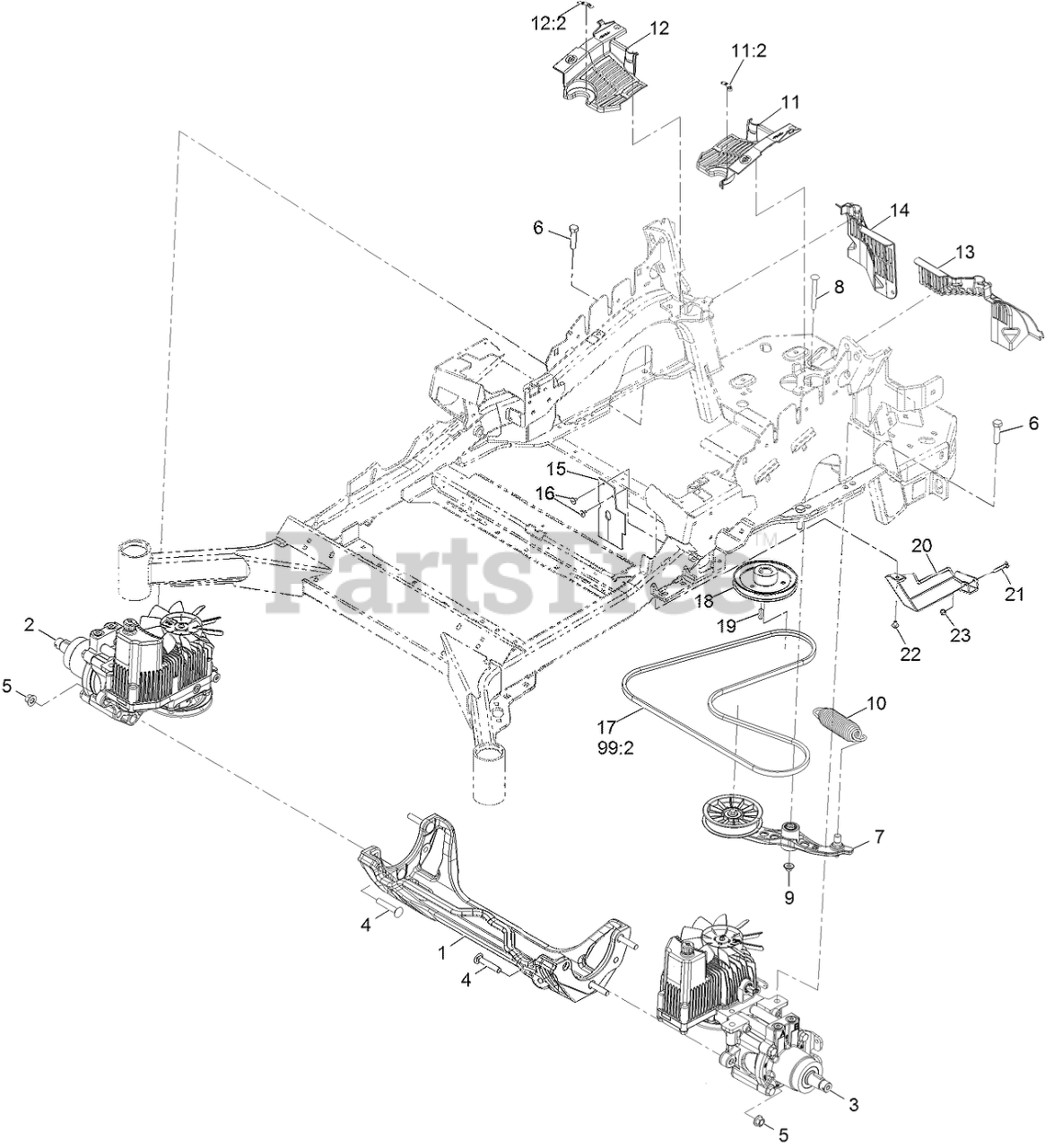

LZX980EKC96RW0 - Exmark 96" Lazer Z X-Series Zero-Turn Mower, Kohler (SN: 406294345 - 408644345) (Rev C) (2020) Hydraulic Assembly Parts Diagram

96" Lazer Z X-Series Zero-Turn Mower, Kohler

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 116-7558

CRADLE-HYDRO

$206.99

$

Usually ships in 3-6 days

0

2

Exmark 135-7910

Hydro-RH

$3419.99

$

Usually ships in 3-6 days

0

3

Exmark 135-7909

Hydro-LH

$3419.99

$

Usually ships in 3-6 days

0

4

Exmark 126-0095

SCREW-CARR

$2.99

$

In Stock, only 2 left!

0

5

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

6

Exmark 325-8

SCREW-HH

$5.49

$

In Stock, Qty 7

0

7

Exmark 116-1255

PUMP IDLER ASM

$217.99

$

In Stock, only 4 left!

0

8

Exmark 116-1502

BOLT-SHOULDER, CARRIAGE 3/8-16 X 3 1/2

$7.99

$

In Stock, only 4 left!

0

9

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

10

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 7

0

11

Exmark 116-0170

LH HYDRO GUARD ASM

$85.99

$

In Stock, only 3 left!

0

11:2

Exmark 116-8726

DECAL-OIL, HYDRO

$5.49

$

In Stock, Qty 20+

0

12

Exmark 116-0171

RH HYDRO GUARD ASM

$85.99

$

Usually ships in 3-6 days

0

12:2

Exmark 116-8726

DECAL-OIL, HYDRO

$5.49

$

In Stock, Qty 20+

0

13

Exmark 109-9709

GUARD-HYDRO REAR, LH TRIM

$19.99

$

Usually ships in 3-6 days

0

14

Exmark 109-9058

GUARD-HYDRO, REAR (RH)

$25.99

$

In Stock, only 3 left!

0

15

Exmark 116-2362

DEFLECTOR-AIR FLOW

$6.49

$

Usually ships in 3-6 days

0

16

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

17

Exmark 126-9835

Belt-V

$45.99

$

In Stock, Qty 20+

0

18

Exmark 109-9905

SHEAVE
(Superseded to 142-9445)

$51.99

$

In Stock, Qty 19

0

19

Exmark 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

20

Exmark 142-3469

TANK GUARD WLDMNT

$109.99

$

Usually ships in 3-6 days

0

21

Exmark 3229-5

SCREW-CARR

$1.49

$

In Stock, Qty 5

0

22

Exmark 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

23

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

99

Exmark 109-9828

OIL-HYD, (QUART)

Note: Not illustrated

$18.99

$

In Stock, Qty 20+

0

99

Exmark 116-0164

FILTER-HYDRO

Note: Not illustrated

$70.99

$

In Stock, Qty 20+

0

99

Exmark 116-1218

OIL-HYD, 1 GALLON

Note: Not illustrated

$70.99

$

In Stock, Qty 14

0

99

Exmark 116-3270

USE 126-8103
(Superseded to 126-8103)

Note: Not illustrated

$241.99

$

In Stock, Qty 8

0

99:1

Exmark 109-9828

OIL-HYD, (QUART)

Note: Not illustrated

$18.99

$

In Stock, Qty 20+

0

99:2

Exmark 126-9835

Belt-V

$45.99

$

In Stock, Qty 20+

0

99:3

Exmark 116-0164

FILTER-HYDRO

Note: Not illustrated

$70.99

$

In Stock, Qty 20+
