Exmark LZX980EKC96RW0 - Exmark 96" Lazer Z X-Series Zero-Turn Mower, Kohler (SN: 406294345 - 408644345) (Rev C) (2020) Deck Lift Assembly Parts Lookup with Diagrams

1

Exmark 135-1216-03

DECKLIFT-FRONT

$394.99

$

Usually ships in 3-6 days

2

Exmark 116-2645-03

LIFT-DECK, REAR

$394.99

$

Usually ships in 3-6 days

3

Exmark 109-9409

SUPPORT-CROSS SHAFT, BEARING

$14.99

$

In Stock, only 4 left!

4

Exmark 127-0553

SUPPORT-CROSS SHAFT, BEARING REAR

$14.99

$

In Stock, only 4 left!

5

Exmark 109-9410

BEARING-CROSS SHAFT, FRON

$5.49

$

In Stock, Qty 13

6

Exmark 109-7173

BEARING-CROSS SHAFT, REAR

$5.49

$

In Stock, Qty 6

7

Exmark 116-1700

Bolt-Carriage 1/2-13 X 2 1/2 Spl Neck

$5.49

$

Usually ships in 3-6 days

8

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

9

Exmark 3231-9

SCREW-CARR

$2.49

$

In Stock, Qty 7

10

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$6.99

$

In Stock, Qty 14

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

12

Exmark 109-8353

TRUNNION

$14.99

$

In Stock, Qty 6

13

Exmark 109-8007

LINK-ADJUSTER, DECK LIFT

$15.99

$

In Stock, Qty 11

14

Exmark 109-7840

ADJUSTER-LIFT, DECK

$7.99

$

In Stock, Qty 10

15

Exmark 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

16

Exmark 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 11

17

Exmark 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

18

Exmark 116-0797-03

LINK-LIFT, DECK

$136.99

$

Usually ships in 3-6 days

19

Exmark 116-2022

SCREW-HHF, SHOULDER

$8.99

$

Usually ships in 3-6 days

20

Exmark 126-7866

HOC ASM

$311.99

$

Usually ships in 3-6 days

20:2

Exmark 126-9275

DECAL-HEIGHT OF CUT

$17.99

$

Usually ships in 3-6 days

20:3

Exmark 135-1432

DECAL-HEIGHT OF CUT, OUTER

$17.99

$

Usually ships in 3-6 days

21

Exmark 116-0559

BOLT-TAP

$6.49

$

Usually ships in 3-6 days

22

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

23

Exmark 116-5584

PIN-HOC

$5.49

$

In Stock, only 4 left!

24

Exmark 3233-26

SCREW-CARR, SHORT NECK

$2.99

$

Usually ships in 3-6 days

25

Exmark 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

26

Exmark 126-7841

CYLINDER-LIFT

$495.99

$

Usually ships in 3-6 days

27

Exmark 109-2017

ADAPTER,STRAIGHT ORIFICED

$13.99

$

Usually ships in 3-6 days

28

Exmark 135-1582

Power Unit

$1710.99

$

In Stock, only 1 left!

29

Exmark 109-0760

ADAPTER,90 DEG

$26.99

$

In Stock, Qty 6

30

Exmark 135-3330

Hose-HYD, HP

$109.99

$

Usually ships in 3-6 days

31

Exmark 135-3331

Hose-HYD, HP

$109.99

$

Usually ships in 3-6 days

32

Exmark 2412-138

R-Clamp

$1.99

$

Usually ships in 3-6 days

33

Exmark 142-2158-03

Mount-Power Unit

$21.99

$

Usually ships in 3-6 days

34

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

35

Exmark 135-1215

SPACER-PIVOT

$14.99

$

Usually ships in 3-6 days

36

Exmark 325-11

SCREW-HH

$2.99

$

In Stock, Qty 7

37

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

40

Exmark 3231-26

SCREW-CARR

$5.49

$

In Stock, only 3 left!

42

Exmark 3290-461

WASHER-SPRING

$5.49

$

In Stock, only 2 left!

43

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

44

Exmark 109-5013

PANHARD ROD ASM

$142.99

$

In Stock, Qty 6

44:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 15

44:3

Exmark 109-5010

SPACER

$12.99

$

In Stock, Qty 6

45

Exmark 86-1990

WASHER-THRUST

$3.99

$

In Stock, only 3 left!

46

Exmark 325-17

SCREW-HH

$5.99

$

In Stock, only 1 left!

47

Exmark 3233-34

SCREW-CARR

$9.49

$

In Stock, only 3 left!

48

Exmark 142-3269

ASM, DECK STRUT

$42.99

$

Usually ships in 3-6 days

48:2

Exmark 135-2466

BUSHING-RUBBER

$7.99

$

Usually ships in 3-6 days

48:3

Exmark 109-5010

SPACER

$12.99

$

In Stock, Qty 6

49

Exmark 325-12

SCREW-HH

$6.49

$

In Stock, only 2 left!

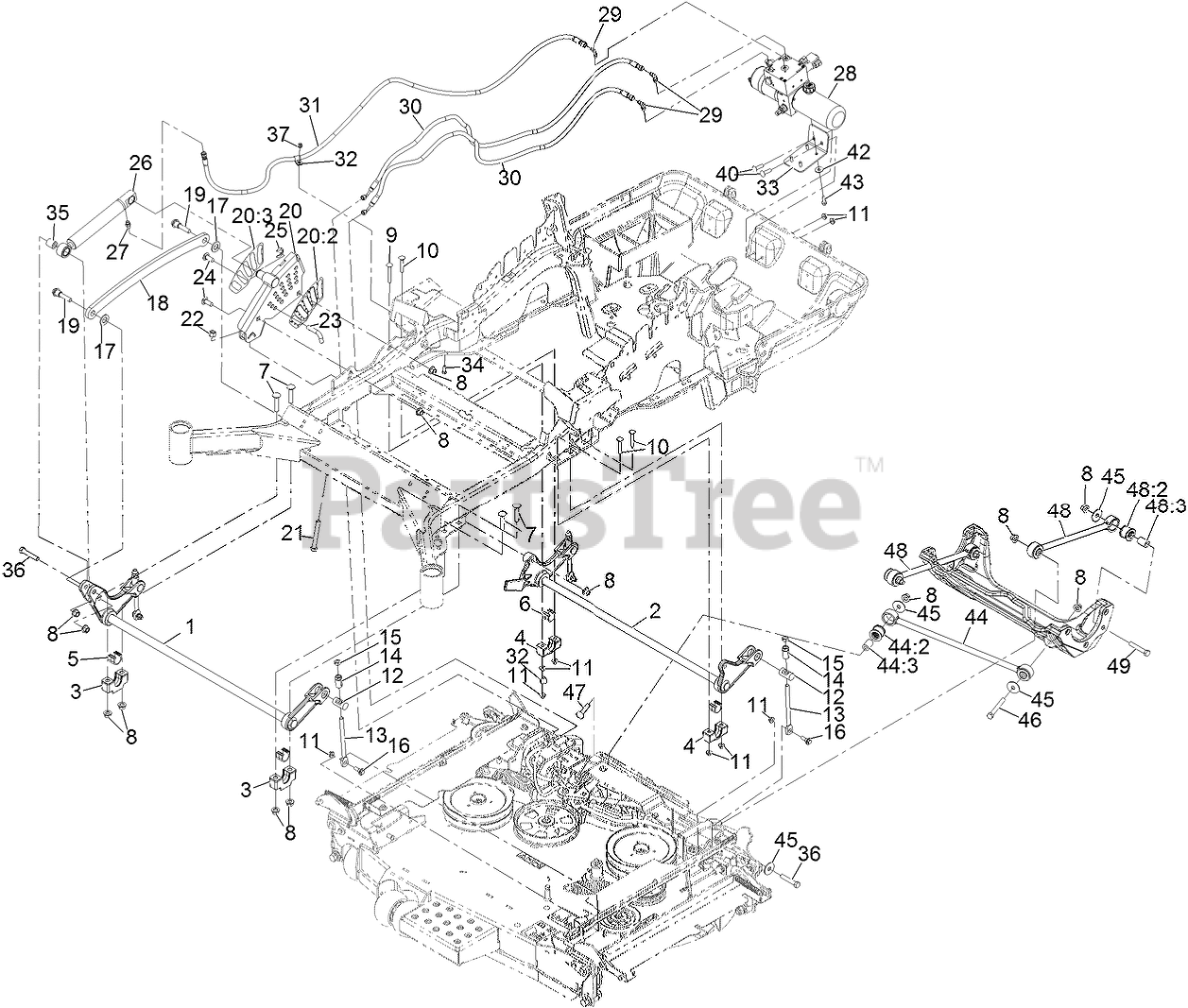

LZX980EKC96RW0 - Exmark 96" Lazer Z X-Series Zero-Turn Mower, Kohler (SN: 406294345 - 408644345) (Rev C) (2020) Deck Lift Assembly Parts Diagram

Deck Lift Assembly Parts Diagram
