Exmark LZX980EKC726W0 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV980 (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Lookup with Diagrams

1

Engine-Kohler Ecv980-3015

$

Not available 

3

Exmark 116-1608

Clutch, Cms250

(Superseded to 126-4185) 

$711.99

$

In Stock, Qty 6

3

Exmark 126-4185

Clutch Kit

$711.99

$

In Stock, Qty 6

4

Exmark 109-6919

Washer-Clutch

$5.49

$

In Stock, Qty 6

5

Exmark 1-603610

Washer-Spring Disc 7/16

$5.49

$

In Stock, Qty 20+

6

Exmark 109-9761

Screw-HH 7/16-20 X 1 1/2 W/Loctite

$5.49

$

In Stock, Qty 15

7

Exmark 3231-42

Bolt-Carriage 3/8-16 X 3

$2.99

$

In Stock, Qty 20+

8

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

9

Exmark 116-5316

Oil Drain Hose ASM

$54.99

$

In Stock, Qty 14

9:2

Exmark 353-508

Plug-W/O-Ring

$8.49

$

In Stock, Qty 5

9:2:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 20+

10

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

12

Exmark 116-3317-01

Link-Anchor, Clutch

$15.99

$

Usually ships in 3-6 days

13

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

14

Exmark 116-9048

Bracket-Muffler

$22.99

$

Usually ships in 3-6 days

15

Exmark 3234-5

Screw-HH Flg 5/16-18 X 3/4

$1.49

$

In Stock, Qty 5

16

Exmark 94-2413

Nut-U

$2.99

$

In Stock, Qty 20+

17

Exmark 103-1390

Bushing

$6.49

$

Usually ships in 3-6 days

18

Exmark 105-1853

Clamp-Hose

$5.49

$

In Stock, only 4 left!

19

Exmark 116-4295

Screw-HH M6-1 X 20Mm W/Patch

$5.49

$

Usually ships in 3-6 days

20

Exmark 126-4645

Muffler-940-980 Koh Efi

$560.99

$

Usually ships in 3-6 days

20

Exmark 126-5423

Muffler Kit

$674.99

$

Usually ships in 3-6 days

20:2

Exmark 126-0359

Gasket-Exhaust

$5.49

$

Usually ships in 3-6 days

20:3

Exmark 116-9626

Nut-Flange, Lock

$1.49

$

Usually ships in 3-6 days

21

Exmark 116-3331-01

Belt-Guide

$27.99

$

In Stock, only 1 left!

22

Exmark 116-3318

Spacer

$19.99

$

In Stock, only 3 left!

23

Exmark 116-3319

Spacer

$25.99

$

Usually ships in 3-6 days

24

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

25

Exmark 323-8

Screw-HH 3/8-16 X 1 1/2

$1.49

$

In Stock, Qty 20+

26

Exmark 322-4

Screw-HH 5/16-18 X 7/8

$0.99

$

In Stock, Qty 20+

27

Exmark 93-5108

Grommet-Rubber

$16.99

$

Usually ships in 3-6 days

29

Exmark 126-5708

Rear Baffle ASM

(Superseded to 135-7328) 

$109.99

$

Usually ships in 3-6 days

30

Exmark 126-0231

Fuel Line ASM

$27.99

$

Usually ships in 3-6 days

30:1

Exmark 109-0284

Hose-Fuel Line 29"

$12.99

$

Usually ships in 3-6 days

30:2

Exmark 126-0232

Sleeve, Thermal

$13.99

$

Usually ships in 3-6 days

30:3

Exmark 2412-98

Clamp-Hose

$1.49

$

In Stock, Qty 20+

31

Exmark 1-303435

Washer-Spring Disc 1/4

$1.49

$

In Stock, Qty 20+

32

Exmark 104-2628

Screw-HWH M6-1 X 12Mm Tf

$1.99

$

Usually ships in 3-6 days

33

Exmark 126-5620

Bracket-Muffler, Front

$15.99

$

Usually ships in 3-6 days

34

Exmark 126-8136

Conduit-Convoluted

$2.99

$

Usually ships in 3-6 days

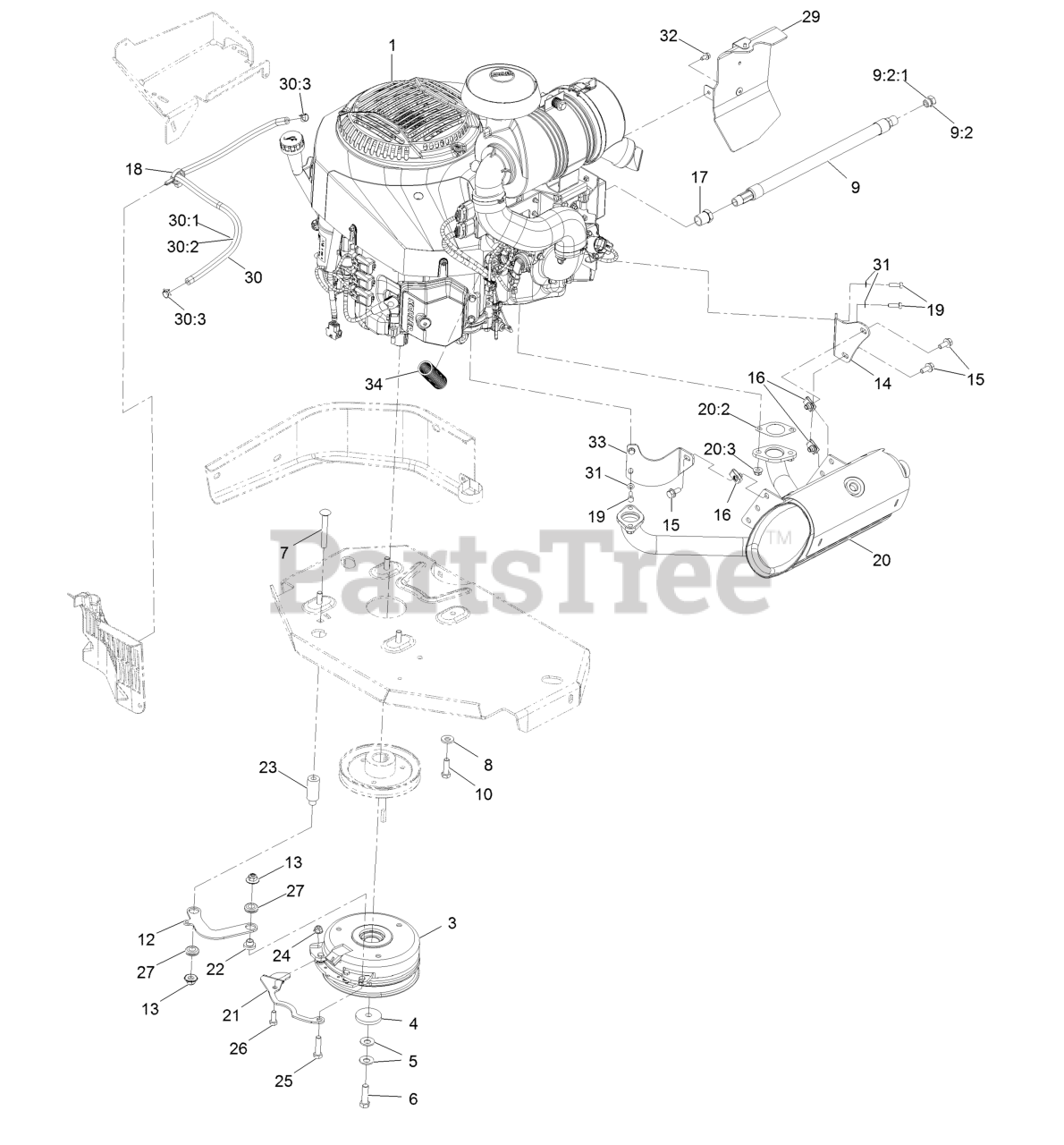

LZX980EKC726W0 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV980 (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Diagram

Engine Assembly Parts Diagram
