LZX980EKC726W0 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV980 (SN: 402082300 - 404314158) (2018) Deck Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV980

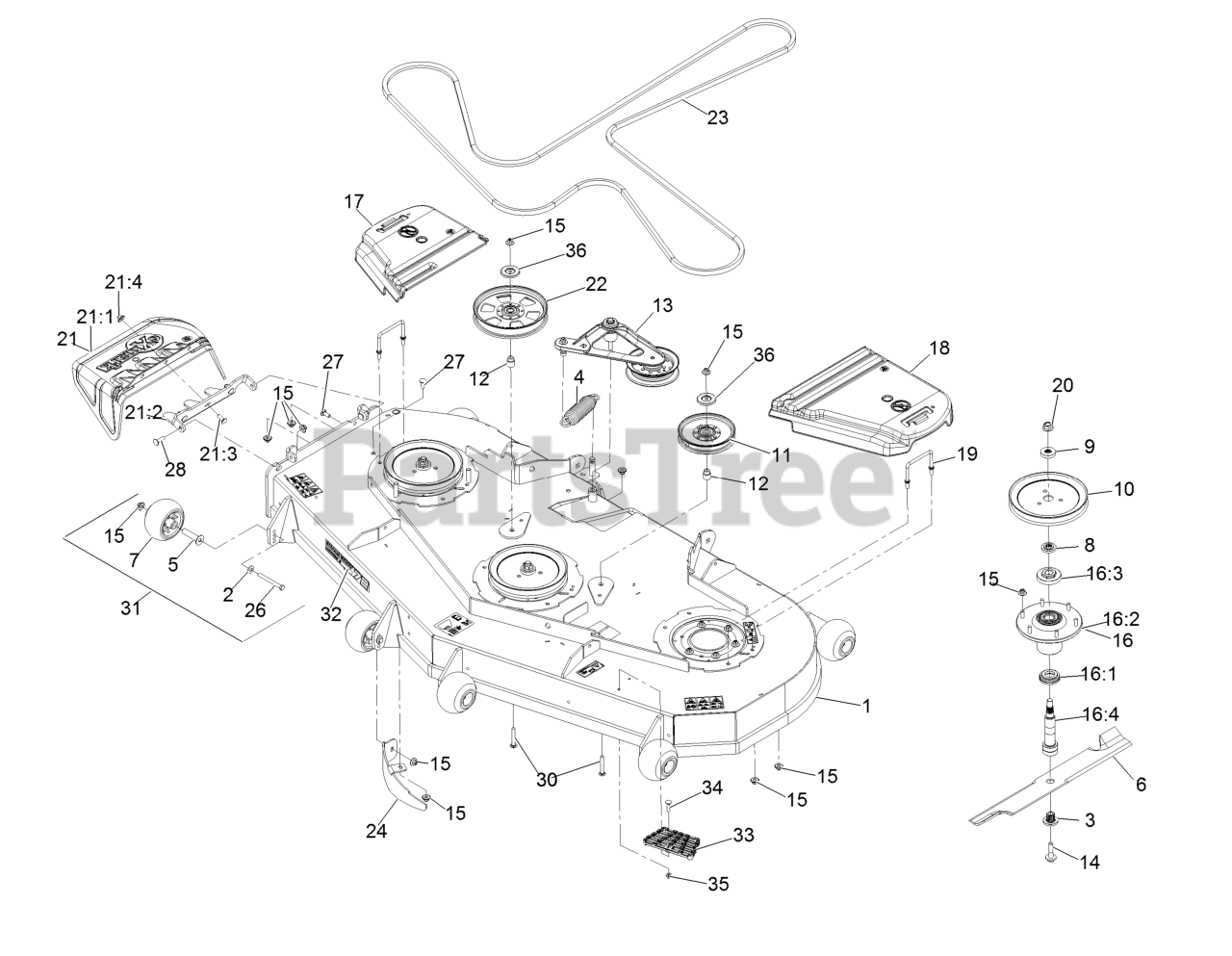

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-1665

ASM,Deck W/Decals 724

$4232.99

$

Usually ships in 3-6 days

0

2

Exmark 98-5975

Washer-Belleville

$3.49

$

In Stock, Qty 20+

0

3

Exmark 103-3037

Bushing, Splined

$22.99

$

In Stock, Qty 20+

0

4

Exmark 116-6317

Spring-Extension

$28.99

$

In Stock, Qty 7

0

5

Exmark 116-8131

Axle, Roller

$12.99

$

In Stock, Qty 12

0

6

Exmark 103-6384

Blade, Solid (72")
(Superseded to 103-6384-S)

$43.99

$

In Stock, Qty 20+

0

6

Exmark 103-6389

Blade, Low Lift (72")
(Superseded to 103-6389-S)

$38.99

$

In Stock, Qty 20+

0

6

Exmark 103-6394

Blade, Mulching
(Superseded to 103-6394-S)

$38.99

$

In Stock, Qty 20+

0

6

Exmark 103-6404

Blade, Notched (72")
(Superseded to 103-6404-S)

$43.99

$

In Stock, Qty 20+

0

6

Exmark 116-5171

Blade-Extreme 2, 24.50"
(Superseded to 116-5171-S)

$43.99

$

In Stock, Qty 20+

0

7

Exmark 103-8415

Roller-Anti-Scalp

$23.99

$

In Stock, Qty 20+

0

8

Exmark 103-9522

Spacer, Splined Stepped

$6.99

$

In Stock, Qty 9

0

9

Exmark 103-9523

Spacer, Splined

$8.49

$

In Stock, Qty 20+

0

10

Exmark 109-2180

Sheave,Blade Drive 9.00

$52.99

$

In Stock, only 4 left!

0

11

Exmark 126-7685

Idler-Pulley

$62.99

$

In Stock, Qty 20+

0

12

Exmark 1-633456

Bushing, Idler

$5.49

$

In Stock, Qty 20+

0

13

Exmark 116-3755

Deck Idler ASM

$254.99

$

In Stock, Qty 20+

0

14

Exmark 109-9220

Screw-Sems 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

15

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

16

Exmark 109-6917

ASM,Spindle Housing

$521.99

$

In Stock, Qty 15

0

16:1

Exmark 103-9504

Guard, Bottom

$11.99

$

In Stock, only 2 left!

0

16:2

Exmark 103-9539

Asm, Cutter Housing

$374.99

$

In Stock, only 2 left!

0

16:3

Exmark 109-0916

Nut, Spindle 7/8-14

$24.99

$

In Stock, only 1 left!

0

16:4

Exmark 109-6881

Spindle,Double Spline

$129.99

$

In Stock, Qty 9

0

17

Exmark 116-0094

Cover-Belt, RH

$86.99

$

In Stock, only 4 left!

0

18

Exmark 109-6938

Cover-Belt, LH

$96.99

$

In Stock, only 2 left!

0

19

Exmark 109-6982

Wireform-Cover

$11.99

$

In Stock, only 4 left!

0

20

Exmark 109-7033

Nut-Flange 5/8-18 Centerlock

$2.99

$

In Stock, Qty 20+

0

21

Exmark 109-7188

ASM,Discharge Chute

$104.99

$

In Stock, only 2 left!

0

21:1

Exmark 109-2738

Chute, Discharge

$74.99

$

In Stock, Qty 20+

0

21:2

Exmark 109-8675-01

Bracket,Discharge Chute

$51.99

$

In Stock, only 1 left!

0

21:3

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

21:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

22

Exmark 116-9639

Pulley-Idler, Flat

$95.99

$

In Stock, Qty 20+

0

23

Exmark 109-9023

Belt-V
(Superseded to 135-5777)

$153.99

$

In Stock, Qty 20+

0

24

Exmark 116-5834-01

Baffle-Dogleg, Lz72

$75.99

$

Usually ships in 3-6 days

0

26

Exmark 116-9362

Screw-HH

$2.99

$

In Stock, Qty 17

0

27

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

28

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

30

Exmark 3231-44

Screw-CARR

$2.99

$

In Stock, Qty 14

0

31

Exmark 116-9981

Kit, Anti-Scalp Roller

$52.99

$

In Stock, Qty 20+

0

32

Exmark 126-6593

Decal, 726

$8.99

$

In Stock, only 1 left!

0

33

Exmark 126-4781-03

Step-Deck

$26.99

$

Usually ships in 3-6 days

0

34

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

35

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

36

Exmark 126-8043

Shield-Dust

$2.99

$

In Stock, only 2 left!

0
