LZX980EKC726W0 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV980 (SN: 400000000 - 402082299) (2017) Controls Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV980

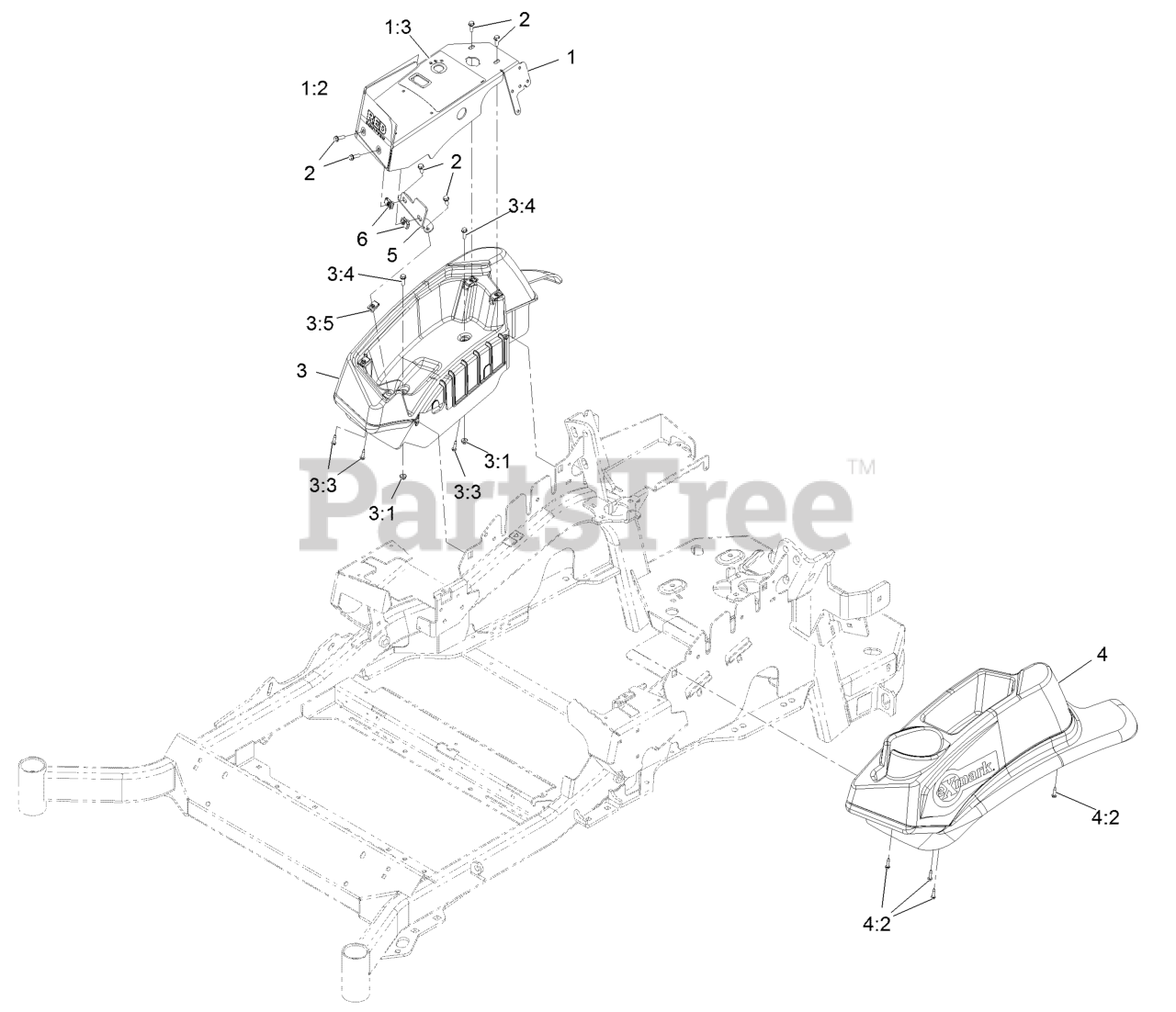

Controls Assembly Parts Diagram

  • Title

1

Exmark 126-7274

Cover Panel ASM W/Decals

$206.99

$

Usually ships in 3-6 days

0

1:2

Exmark 135-0404

Decal-Control Panel Red

$33.99

$

Usually ships in 3-6 days

0

1:3

Exmark 126-4479

Decal-Console

$15.99

$

Usually ships in 3-6 days

0

2

Exmark 32105-15

Screw-HWH

$2.99

$

In Stock, Qty 14

0

3

Exmark 109-9341

Console,RH Narrow ASM

$225.99

$

Usually ships in 3-6 days

0

3:1

Exmark 104-7201

Nut-HF

$1.49

$

In Stock, Qty 20+

0

3:3

Exmark 109-9345

Screw,Thd Form,HWH

$1.49

$

Usually ships in 3-6 days

0

3:4

Exmark 32105-15

Screw-HWH

$2.99

$

In Stock, Qty 14

0

3:5

Exmark 107069

Clip

$2.99

$

In Stock, Qty 20+

0

4

Exmark 109-9342

Console.LH Narrow ASM

$225.99

$

Usually ships in 3-6 days

0

4:2

Exmark 109-9345

Screw,Thd Form,HWH

$1.49

$

Usually ships in 3-6 days

0

5

Exmark 126-4563-03

Bracket-Console

$16.99

$

Usually ships in 3-6 days

0

6

Exmark 107069

Clip

$2.99

$

In Stock, Qty 20+

0
