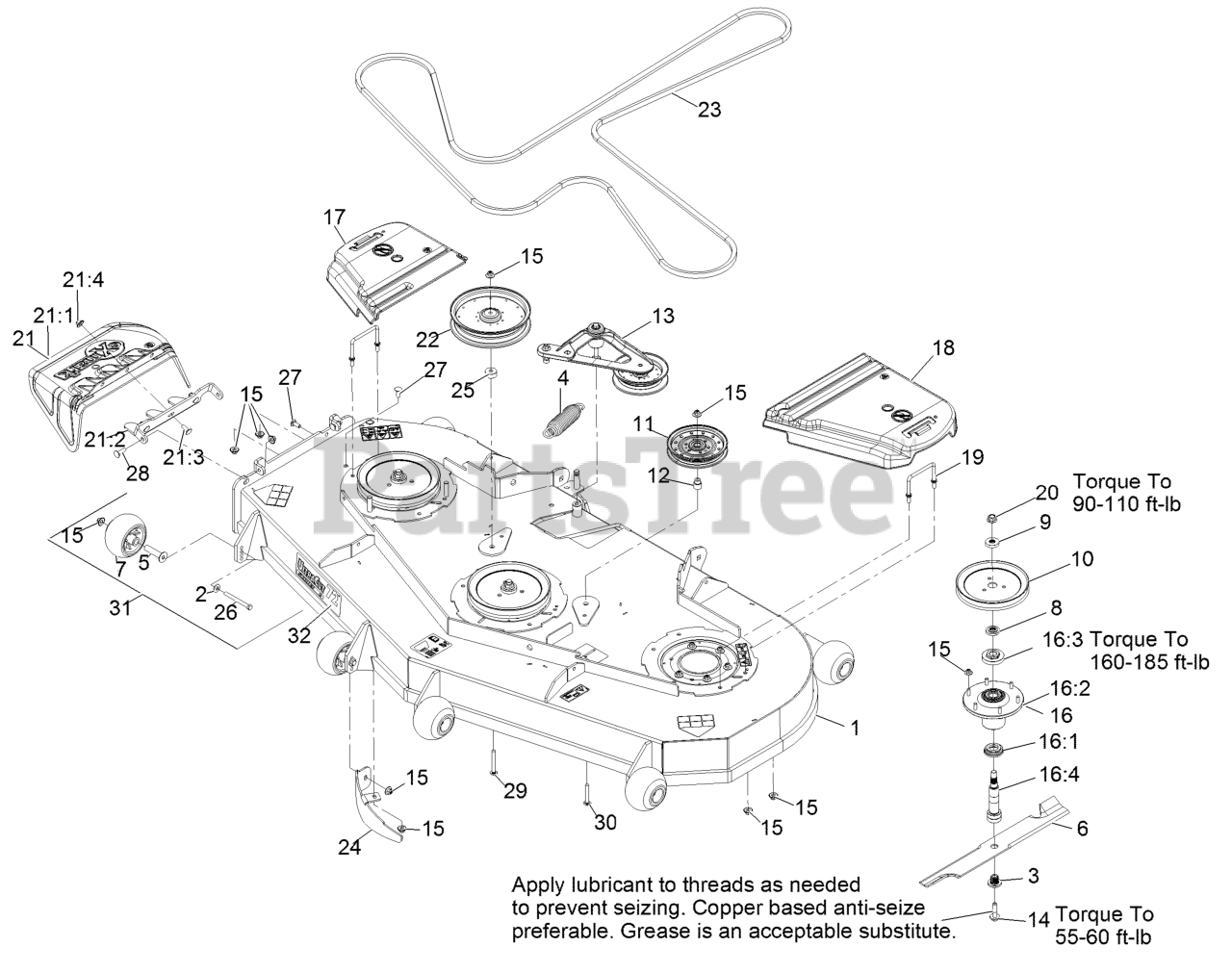

LZX980EKC726T0 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV980 (SN: 315000000 - 315999999) (2015) Deck Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV980

Deck Assembly Parts Diagram

  • Title

1

Exmark 109-9133

DECK W/ DECALS ASM-72

$4232.99

$

Usually ships in 3-6 days

0

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

3

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

4

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 9

0

5

Exmark 116-8131

AXLE, ROLLER

$12.99

$

In Stock, Qty 5

0

6

Exmark 103-6404

103-6404-S
(Superseded to 103-6404-S)

$43.99

$

In Stock, Qty 20+

0

6

Exmark 103-6394

103-6394-S
(Superseded to 103-6394-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$38.99

$

In Stock, Qty 20+

0

6

Exmark 103-6389

103-6389-S
(Superseded to 103-6389-S)

$38.99

$

In Stock, Qty 10

0

6

Exmark 103-6384

103-6384-S
(Superseded to 103-6384-S)

$43.99

$

In Stock, Qty 20+

0

6

Exmark 116-5171

116-5171-S
(Superseded to 116-5171-S)

$43.99

$

In Stock, Qty 20+

0

7

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 12

0

8

Exmark 103-9522

SPACER,SPLINED STEPPED

$6.99

$

In Stock, Qty 9

0

9

Exmark 103-9523

SPACER,SPLINED

$8.49

$

In Stock, only 2 left!

0

10

Exmark 109-2180

SHEAVE,BLADE DRIVE 9.00

$52.99

$

In Stock, Qty 5

0

11

Exmark 116-4667

126-7685
(Superseded to 126-7685)

$62.99

$

In Stock, Qty 12

0

12

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

13

Exmark 116-3755

DECK IDLER ASM

$254.99

$

In Stock, only 1 left!

0

14

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

15

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

16

Exmark 109-6917

ASM,SPINDLE HOUSING

$521.99

$

In Stock, Qty 7

0

16:1

Exmark 103-9504

GUARD,BOTTOM

$11.99

$

In Stock, only 2 left!

0

16:2

Exmark 103-9539

ASM,CUTTER HOUSING

$374.99

$

In Stock, only 2 left!

0

16:3

Exmark 109-0916

NUT, SPINDLE 7/8-14

$24.99

$

In Stock, only 1 left!

0

16:4

Exmark 109-6881

SPINDLE,DOUBLE SPLINE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$129.99

$

In Stock, only 1 left!

0

17

Exmark 116-0094

COVER-BELT, RH

$86.99

$

In Stock, only 4 left!

0

18

Exmark 109-6938

COVER-BELT, LH

$96.99

$

In Stock, only 2 left!

0

19

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

20

Exmark 109-7033

NUT-FLANGE, CENTERLOCK

$2.99

$

In Stock, Qty 20+

0

21

Exmark 109-7188

ASM,DISCHARGE CHUTE

$104.99

$

In Stock, only 2 left!

0

21:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 7

0

21:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$51.99

$

In Stock, only 1 left!

0

21:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

21:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

22

Exmark 109-8590

PULLEY-IDLER

$180.99

$

In Stock, only 1 left!

0

23

Exmark 109-9023

BELT-V
(Superseded to 135-5777)

$153.99

$

In Stock, Qty 17

0

24

Exmark 116-5834-01

BAFFLE-DOGLEG, LZ72

$75.99

$

Usually ships in 3-6 days

0

25

Exmark 103-2956

SPACER-IDLER

$9.49

$

In Stock, only 3 left!

0

26

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

0

27

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

28

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

29

Exmark 3231-42

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

30

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, only 4 left!

0

31

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$52.99

$

In Stock, Qty 20+

0

32

Exmark 109-9440

DECAL,ULTRACUT 72 SERIES

$23.99

$

In Stock, only 1 left!
