LZX980EKC726R1 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV980 (SN: 413950474 & Above) (Rev A) (2023) Fuel System Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV980

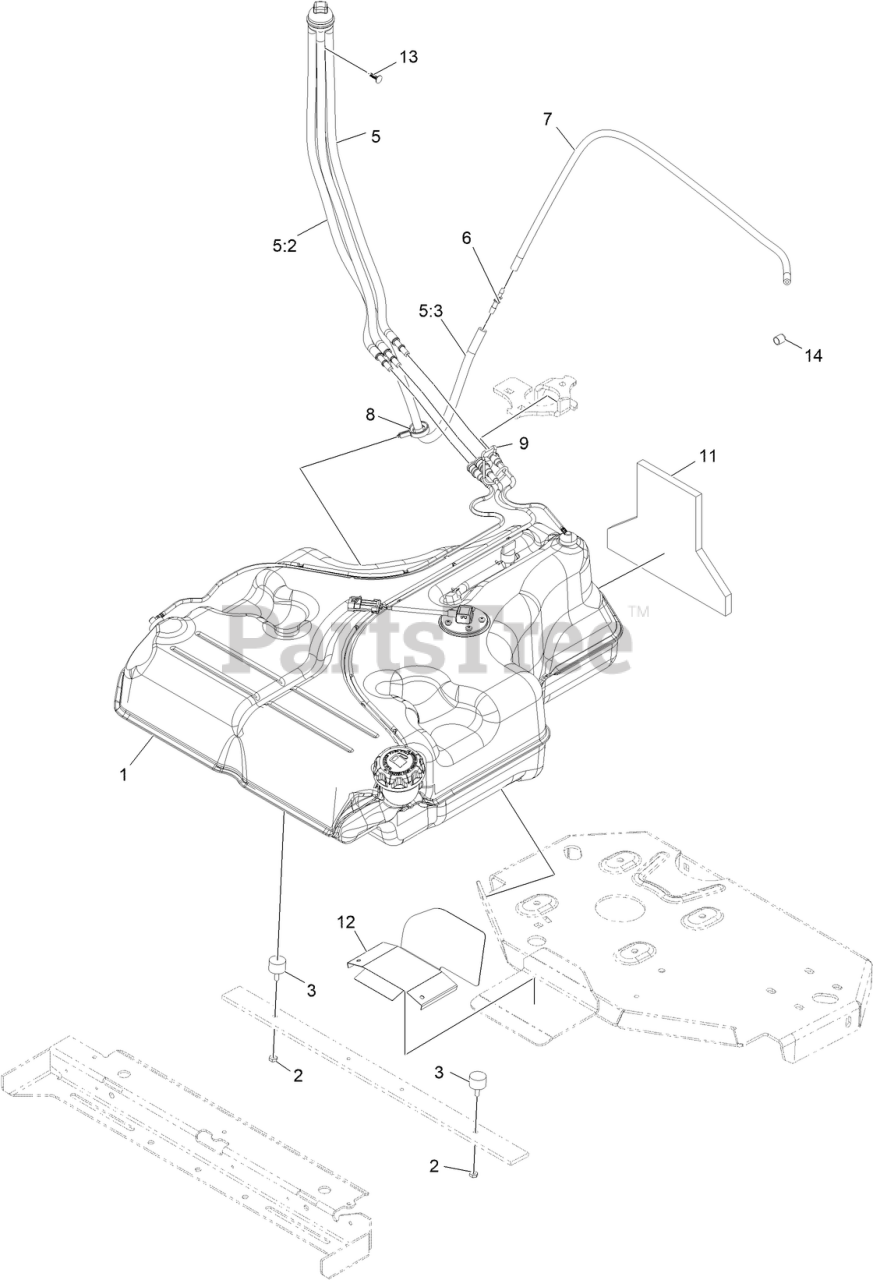

Fuel System Assembly Parts Diagram

  • Title

1

Exmark 135-0643

FUEL TANK ASM

$775.99

$

Usually ships in 3-6 days

0

2

Exmark 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

3

Exmark 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

5

Exmark 127-0583

FUEL MANIFOLD VENT ASM

$70.99

$

Usually ships in 3-6 days

0

5:2

Exmark 109-0302

HOSE-FUEL

$12.99

$

In Stock, only 2 left!

0

5:3

Exmark 108-5376

HOSE-FUEL

$43.99

$

In Stock, only 1 left!

0

6

Exmark 135-5678

BARB-FUEL

$1.99

$

Usually ships in 3-6 days

0

7

Exmark 119-6074

HOSE-FUEL

$14.99

$

Usually ships in 3-6 days

0

8

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

9

Exmark 116-6005

RETAINER-LINE, VAPOR

$5.49

$

Usually ships in 3-6 days

0

11

Exmark 126-0224

INSULATION-FOAM, FUEL TANK

$9.49

$

Usually ships in 3-6 days

0

12

Exmark 126-0032-01

GUARD-EXHAUST

$27.99

$

Usually ships in 3-6 days

0

13

Exmark 125-8067

PLUG-PLASTIC

$0.99

$

Usually ships in 3-6 days

0

14

Exmark 116-4464

PLUG-PORT

$1.49

$

Usually ships in 3-6 days

0
