Exmark LZX980EKC726R1 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV980 (SN: 413950474 & Above) (Rev A) (2023) Deck Lift Assembly Parts Lookup with Diagrams

1

Exmark 109-7952

DECK STRUT ASM

$144.99

$

In Stock, only 2 left!

1:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 15

1:3

Exmark 109-5010

SPACER

$12.99

$

In Stock, Qty 6

2

Exmark 109-5013

PANHARD ROD ASM

$142.99

$

In Stock, Qty 6

2:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 15

2:3

Exmark 109-5010

SPACER

$12.99

$

In Stock, Qty 6

3

Exmark 86-1990

WASHER-THRUST

$3.99

$

In Stock, only 3 left!

4

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

5

Exmark 325-12

SCREW-HH

$6.49

$

In Stock, only 2 left!

6

Exmark 325-17

SCREW-HH

$5.99

$

In Stock, Qty 6

7

Exmark 3233-34

SCREW-CARR

$9.49

$

In Stock, only 3 left!

8

Exmark 127-0553

SUPPORT-CROSS SHAFT, BEARING REAR

$14.99

$

In Stock, only 4 left!

9

Exmark 109-7173

BEARING-CROSS SHAFT, REAR

$5.49

$

In Stock, Qty 6

10

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$6.99

$

In Stock, Qty 14

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

12

Exmark 109-9409

SUPPORT-CROSS SHAFT, BEARING

$14.99

$

In Stock, only 4 left!

13

Exmark 109-9410

BEARING-CROSS SHAFT, FRON

$5.49

$

In Stock, Qty 13

14

Exmark 116-1700

Bolt-Carriage 1/2-13 X 2 1/2 Spl Neck

$5.49

$

Usually ships in 3-6 days

15

Exmark 142-7458-03

Shaft- Deck Lift Front [black]

$217.99

$

Usually ships in 0 days

16

Exmark 142-8379

ASM- Link Deck Lift

$377.99

$

Usually ships in 0 days

17

Exmark 142-7459-03

Shaft- Deck Lift Rear [black]

$217.99

$

Usually ships in 0 days

18

Exmark 116-0000

SPRING-EXTENSION

$136.99

$

Usually ships in 3-6 days

19

Exmark 109-9065

SCREW-HH

$3.49

$

In Stock, Qty 9

20

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

21

Exmark 92-7674

BOLT-SHOULDER

$2.99

$

Usually ships in 3-6 days

22

Exmark 116-0780

SCREW-SHOULDER, HHF 1/2-13 X 1.12

$9.49

$

In Stock, only 3 left!

23

Exmark 116-2022

SCREW-HHF, SHOULDER

$8.99

$

Usually ships in 3-6 days

24

Exmark 121-4517

WASHER-WAVE

$4.49

$

Usually ships in 3-6 days

25

Exmark 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

26

Exmark 142-9523

ASM- Box HOC

$251.99

$

Usually ships in 0 days

27

Exmark 142-9775

ASM- HOC PIN

$23.99

$

Usually ships in 3-6 days

28

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

29

Exmark 109-8353

TRUNNION

$14.99

$

In Stock, Qty 6

30

Exmark 109-7840

ADJUSTER-LIFT, DECK

$7.99

$

In Stock, Qty 10

31

Exmark 109-8007

LINK-ADJUSTER, DECK LIFT

$15.99

$

In Stock, Qty 11

32

Exmark 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

33

Exmark 116-1919-01

LEVER-FOOT

$99.99

$

Usually ships in 3-6 days

34

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

35

Exmark 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 11

37

Exmark 142-8402

Bushing- Link

$16.99

$

Usually ships in 0 days

38

Exmark 142-8513

ASM- Cover W/Decal

$44.99

$

Usually ships in 0 days

39

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 7

40

Exmark 105-9830

Decal-Lever Lock, CE

$

Not available 

41

Exmark 126-6573

DECAL-X-SERIES

$2.99

$

In Stock, Qty 7

42

Exmark 142-9674-01

Plate- Support

$12.99

$

Usually ships in 0 days

43

Exmark 116-2695

SPACER

$19.99

$

Usually ships in 3-6 days

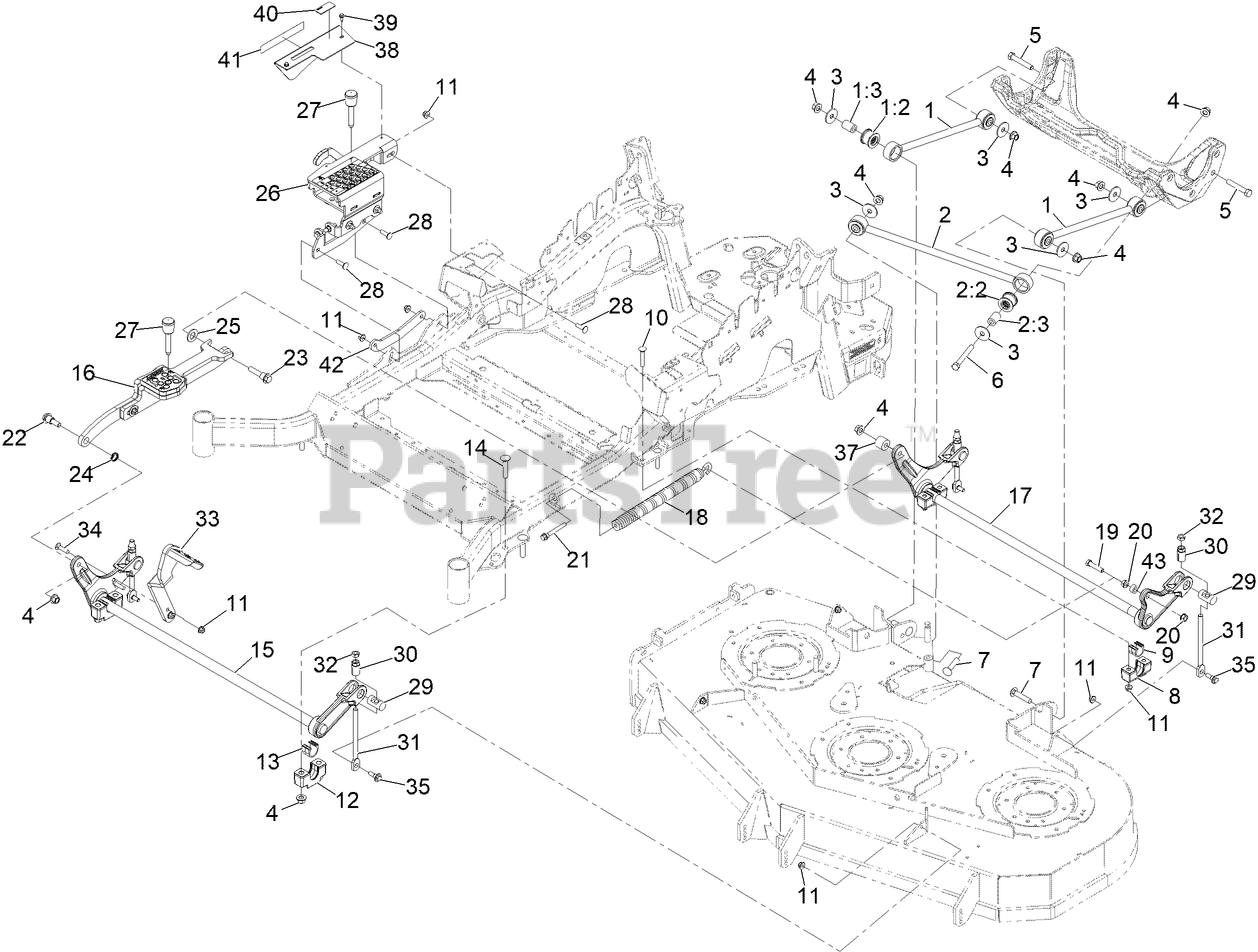

LZX980EKC726R1 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV980 (SN: 413950474 & Above) (Rev A) (2023) Deck Lift Assembly Parts Diagram

Deck Lift Assembly Parts Diagram
