LZX980EKC726 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV980 (SN: 314000000 - 314999999) (2014) RH Hydro Assembly No.116-6410 Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV980

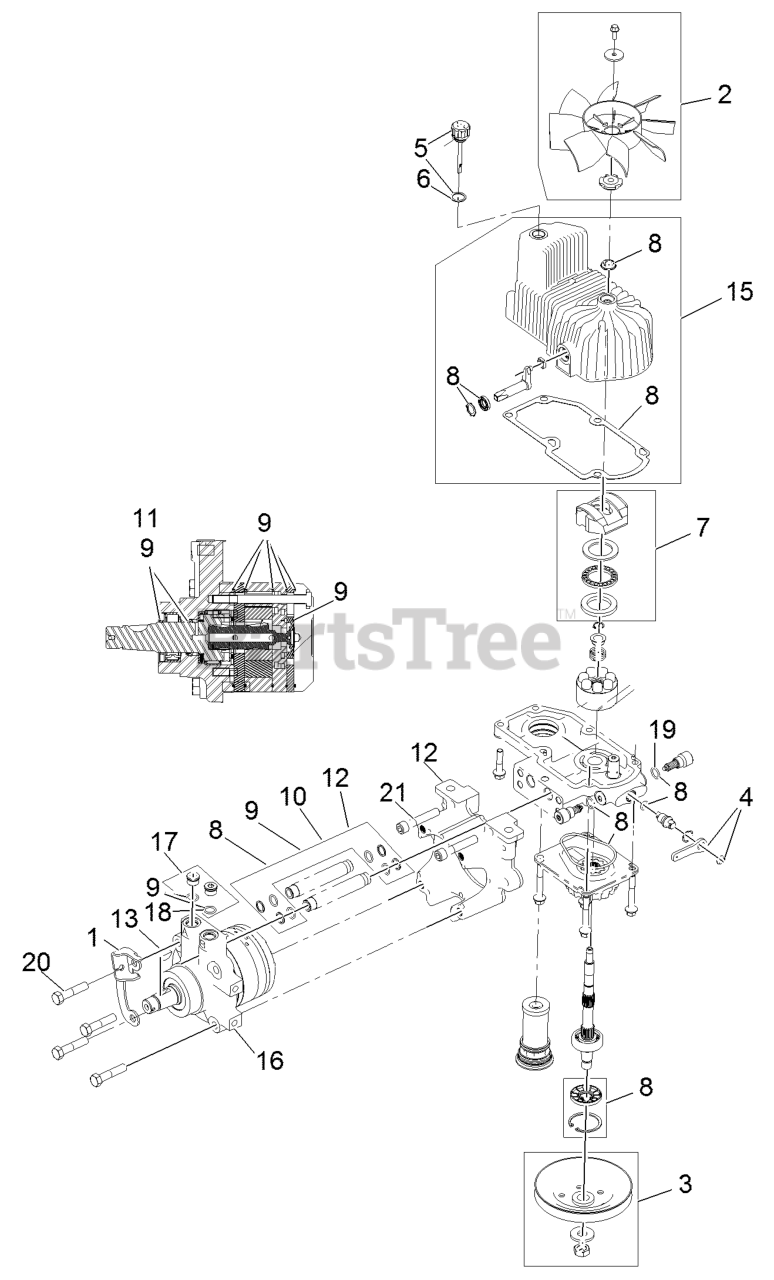

RH Hydro Assembly No.116-6410 Parts Diagram

  • Title

1

Exmark 116-6859

BRACKET-ANCHOR, CABLE

$21.99

$

Usually ships in 3-6 days

0

2

Exmark 116-0233

FAN KIT

$

$

Not available

3

Exmark 116-0234

PULLEY KIT

$182.99

$

Usually ships in 3-6 days

0

4

Exmark 116-0235

HANDLE-BYPASS VALVE, HYDRO

$17.99

$

Usually ships in 3-6 days

0

5

Exmark 116-0236

DIPSTICK-HYDRO W/GASKET

$52.99

$

In Stock, Qty 20+

0

6

Exmark 116-0237

GASKET-DIPSTICK, HYDRO

$15.99

$

In Stock, only 2 left!

0

7

Exmark 116-1367

SWASH BLOCK KIT

$535.99

$

Usually ships in 3-6 days

0

8

Exmark 116-1368

PUMP SEAL KIT
(Superseded to 142-3604)

$152.99

$

In Stock, only 3 left!

0

9

Exmark 116-1369

MOTOR SEAL KIT

$284.99

$

Usually ships in 3-6 days

0

10

Exmark 116-1370

TUBE SEAL KIT

$33.99

$

In Stock, Qty 6

0

11

Exmark 116-1371

OUTPUT SHAFT SEAL KIT

$140.99

$

In Stock, only 1 left!

0

12

Exmark 116-5469

NOSE CUP-UHT

$313.99

$

In Stock, only 1 left!

0

13

Exmark 3257-42

KEY-WOODRUFF

$6.99

$

In Stock, Qty 20+

0

15

Exmark 116-3288

HOUSING-HYDRO, RH
(Superseded to 142-4461)

$742.99

$

Usually ships in 3-6 days

0

16

Exmark 116-8918

MOTOR-HYDRAULIC, RH 280CC

$

$

Not available

17

Exmark 116-7901

MAGNETIC PLUGS SERVICE KIT

$109.99

$

Usually ships in 3-6 days

0

18

Exmark 76-1900

O-RING

$4.99

$

Usually ships in 3-6 days

0

19

Exmark 116-8662

O-RING-CHECK VALVE

$2.99

$

Usually ships in 3-6 days

0

20

Exmark 116-8974

SCREW HH

$5.49

$

In Stock, Qty 20+

0

21

Exmark 116-8975

SCREW-HSH

$10.99

$

In Stock, Qty 7

0

99

Exmark 116-1373

FLOW TEST KIT

Note: Not illustrated

$1127.99

$

Usually ships in 3-6 days

0
