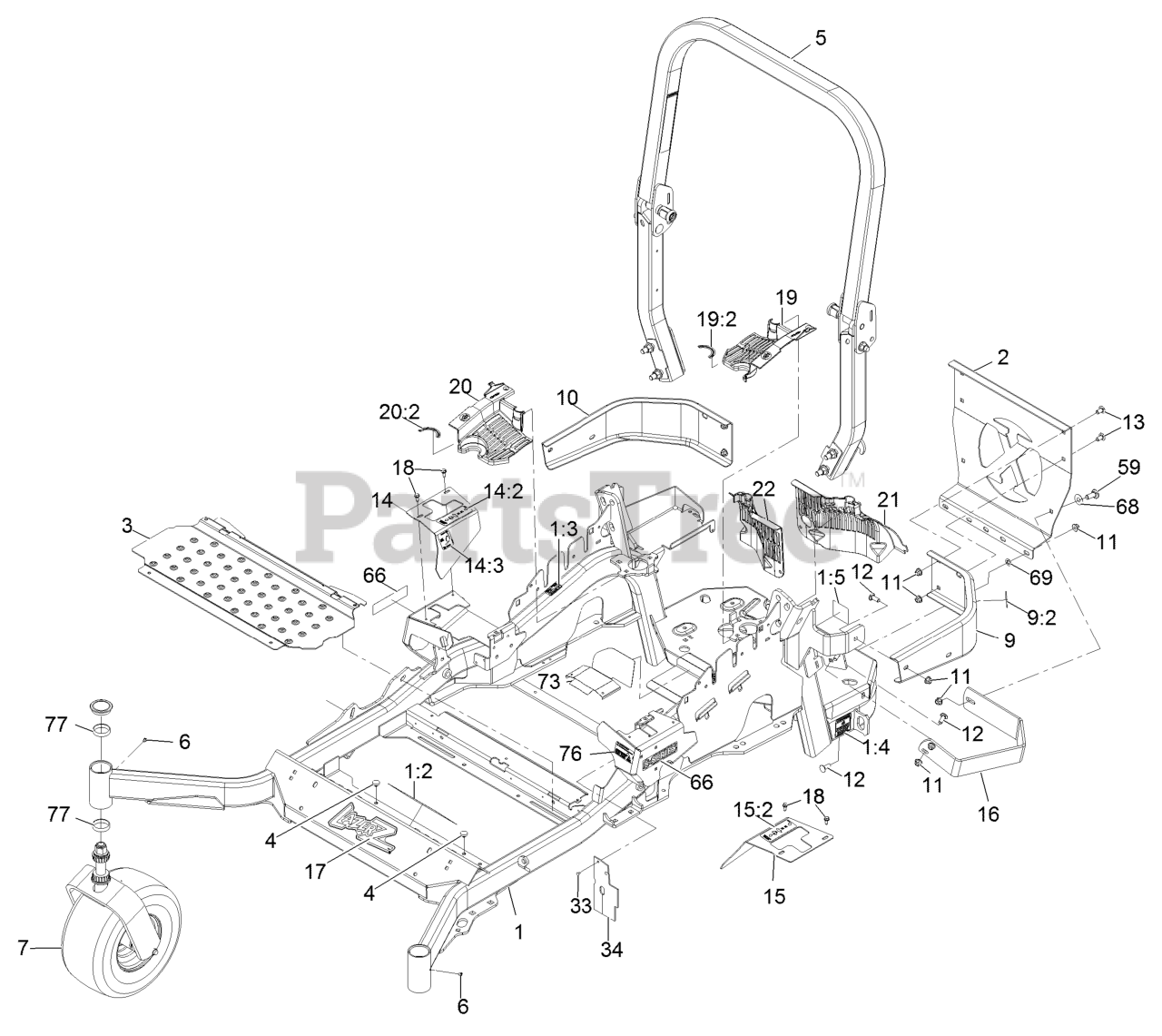

LZX980EKC726 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV980 (SN: 314000000 - 314999999) (2014) Main Frame Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV980

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-5904

MAINFRAME ASM
(Superseded to 142-7266)

$2596.99

$

Usually ships in 3-6 days

0

1:2

Exmark 103-2076

DECAL-CAUTION

$6.49

$

In Stock, only 1 left!

0

1:3

Exmark 116-3303

DECAL-SLOPE

$17.99

$

Usually ships in 3-6 days

0

1:4

Exmark 116-0205

DECAL-BELT DRIVE

$8.49

$

Usually ships in 3-6 days

0

1:5

Exmark 116-4858

DECAL-SPARK ARRESTER

$3.49

$

In Stock, only 1 left!

0

2

Exmark 109-8863-03

PLATE,REAR GUARD

$181.99

$

Usually ships in 3-6 days

0

3

Exmark 116-8898-01

FLOORPAN

$108.99

$

Usually ships in 3-6 days

0

4

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 9

0

5

Exmark 116-0230

ASM,ROPS SERVICE EXMARK

$446.99

$

Usually ships in 3-6 days

0

6

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

7

Caster Wheel Asm

Note: Not serviced separately

$

$

Not available

9

Exmark 116-0180

LH BUMPER ASM

$148.99

$

Usually ships in 3-6 days

0

9:2

Exmark 103-2076

DECAL-CAUTION

$6.49

$

In Stock, only 1 left!

0

10

Exmark 116-0057-03

BUMPER-RH

$220.99

$

In Stock, only 1 left!

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

13

Exmark 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

14

Exmark 116-5899

RH MOTION CONTROL COVER ASM

$49.99

$

Usually ships in 3-6 days

0

14:2

Exmark 109-7232

DECAL-MOTION CONTROL

$5.49

$

In Stock, only 3 left!

0

14:3

Exmark 116-5944

DECAL-PARK BRAKE

$14.99

$

In Stock, Qty 14

0

15

Exmark 116-0580

LH MOTION CONTROL COVER ASM

$28.99

$

Usually ships in 3-6 days

0

15:2

Exmark 109-7232

DECAL-MOTION CONTROL

$5.49

$

In Stock, only 3 left!

0

16

Exmark 126-2067-03

GUARD-MUFFLER

$60.99

$

Usually ships in 3-6 days

0

17

Exmark 103-3113

DECAL,LAZER MODEL

$11.99

$

In Stock, Qty 8

0

18

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

19

Exmark 116-0170

LH HYDRO GUARD ASM

$85.99

$

In Stock, only 3 left!

0

19:2

Exmark 116-0157

DECAL-HYDRO OIL
(Superseded to 116-8726)

$5.49

$

In Stock, Qty 20+

0

20

Exmark 116-0171

RH HYDRO GUARD ASM

$85.99

$

Usually ships in 3-6 days

0

20:2

Exmark 116-0157

DECAL-HYDRO OIL
(Superseded to 116-8726)

$5.49

$

In Stock, Qty 20+

0

21

Exmark 109-9709

GUARD-HYDRO REAR, LH TRIM

$19.99

$

Usually ships in 3-6 days

0

22

Exmark 109-9058

GUARD-HYDRO, REAR (RH)

$25.99

$

In Stock, only 3 left!

0

33

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

34

Exmark 116-2362

DEFLECTOR-AIR FLOW

$6.49

$

Usually ships in 3-6 days

0

59

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

66

Exmark 116-3883

DECAL-X-SERIES

$7.99

$

Usually ships in 3-6 days

0

68

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

69

Exmark 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

73

Exmark 126-0032-01

GUARD-EXHAUST

$27.99

$

Usually ships in 3-6 days

0

76

Exmark 116-1654

DECAL-FUEL FILL

$5.49

$

Usually ships in 3-6 days

0

77

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 15

0
