LZX980EKC726 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV980 (SN: 313000000 - 313999999) (2013) Engine Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV980

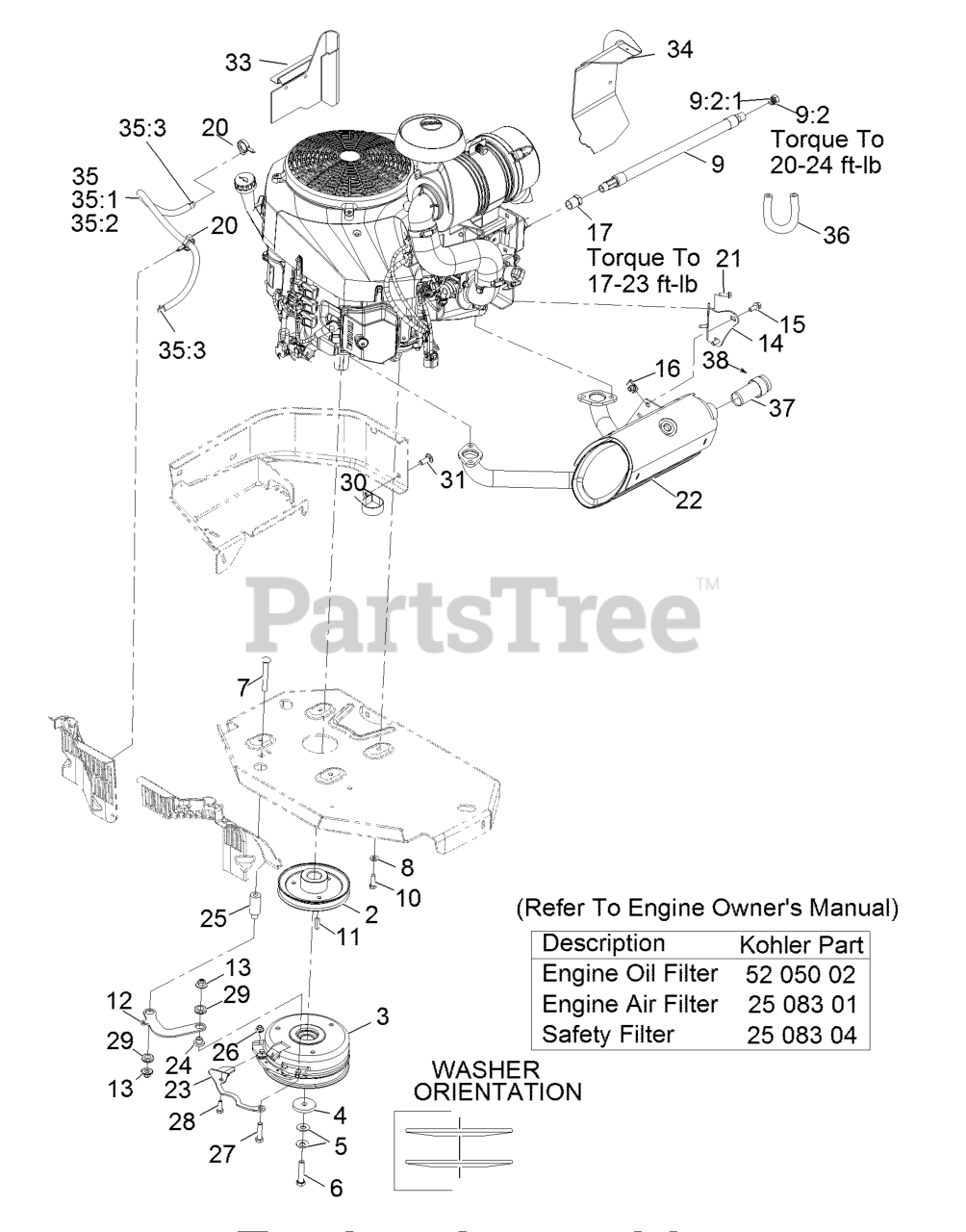

Engine Assembly Parts Diagram

  • Title

2

Exmark 109-9905

SHEAVE
(Superseded to 142-9445)

$51.99

$

In Stock, Qty 19

0

3

Exmark 116-1621

126-4185
(Superseded to 126-4185)

$711.99

$

In Stock, Qty 6

0

4

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 8

0

5

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

6

Exmark 109-9762

SCREW-HH W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, Qty 9

0

7

Exmark 3231-42

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

8

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

9

Exmark 116-5316

OIL DRAIN HOSE ASM

$54.99

$

In Stock, Qty 14

0

9:2

Exmark 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

0

9:2:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

10

Exmark 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

11

Exmark 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

12

Exmark 116-3317-01

LINK-ANCHOR, CLUTCH

$15.99

$

Usually ships in 3-6 days

0

13

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

14

Exmark 116-9048

BRACKET-MUFFLER

$22.99

$

Usually ships in 3-6 days

0

15

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

16

Exmark 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

17

Exmark 103-1390

BUSHING

$6.49

$

Usually ships in 3-6 days

0

20

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

21

Exmark 110-3986

SCREW

$1.49

$

Usually ships in 3-6 days

0

22

Exmark 116-7552

126-5423
(Superseded to 126-5423)

$611.99

$

Usually ships in 3-6 days

0

23

Exmark 116-3331-01

BELT-GUIDE

$27.99

$

In Stock, only 1 left!

0

24

Exmark 116-3318

SPACER

$19.99

$

In Stock, only 3 left!

0

25

Exmark 116-3319

SPACER

$25.99

$

Usually ships in 3-6 days

0

26

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

27

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Exmark 93-5108

GROMMET-RUBBER

$16.99

$

Usually ships in 3-6 days

0

30

Exmark 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

31

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

33

Exmark 126-0212

BAFFLE-RH

$112.99

$

Usually ships in 3-6 days

0

34

Exmark 126-0215

126-3517
(Superseded to 126-3517)

$106.99

$

Usually ships in 3-6 days

0

35

Exmark 126-0231

FUEL LINE ASM

$26.99

$

Usually ships in 3-6 days

0

35:1

Exmark 109-0284

HOSE-FUEL

$11.99

$

Usually ships in 3-6 days

0

35:2

Exmark 126-0232

SLEEVE, THERMAL

$13.99

$

Usually ships in 3-6 days

0

35:3

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

36

Exmark 126-0245

SLEEVE, THERMAL-SHORT

$

$

Not available

37

Exmark 126-0268

ARRESTOR-SPARK

$70.99

$

Usually ships in 3-6 days

0

38

Exmark 126-0275

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0
