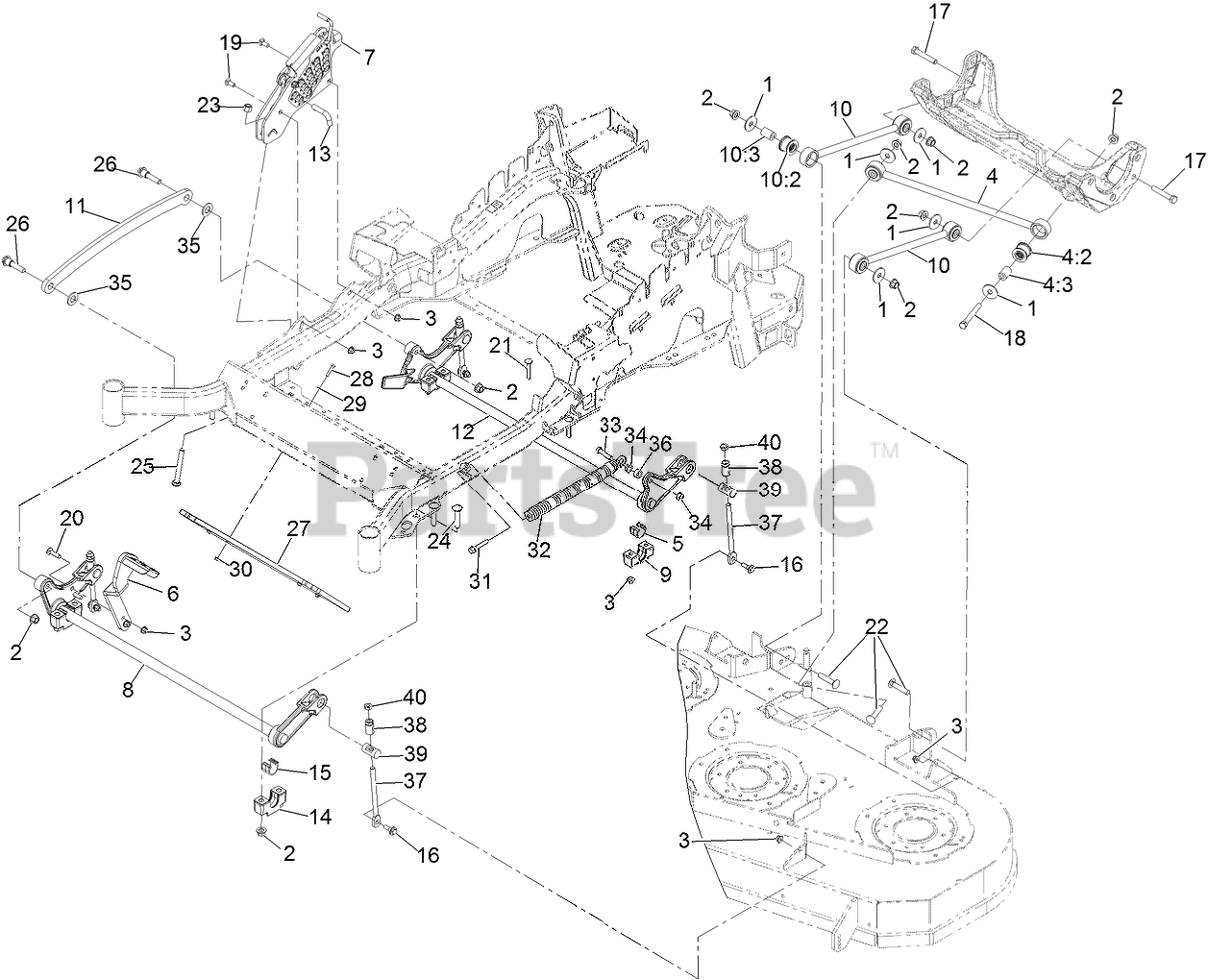

LZX980EKC606W0 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kohler (SN: 406294345 - 408644345) (Rev A) (2020) Deck Lift Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kohler

Deck Lift Assembly Parts Diagram

  • Title

1

Exmark 86-1990

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

2

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 109-5013

PANHARD ROD ASM

$142.99

$

In Stock, Qty 5

0

4:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 11

0

4:3

Exmark 109-5010

SPACER

$13.99

$

In Stock, Qty 20+

0

5

Exmark 109-7173

BEARING-CROSS SHAFT, REAR

$5.49

$

In Stock, Qty 20+

0

6

Exmark 116-1919-01

LEVER-FOOT

$99.99

$

Usually ships in 3-6 days

0

7

Exmark 109-7438

HOC ASM

$273.99

$

In Stock, only 1 left!

0

8

Exmark 126-2477-03

DECKLIFT-FRONT

$241.99

$

Usually ships in 3-6 days

0

9

Exmark 127-0553

SUPPORT-CROSS SHAFT, BEARING REAR

$14.99

$

In Stock, Qty 7

0

10

Exmark 109-7952

DECK STRUT ASM

$144.99

$

In Stock, Qty 10

0

10:2

Exmark 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 11

0

10:3

Exmark 109-5010

SPACER

$13.99

$

In Stock, Qty 20+

0

11

Exmark 116-0797-03

LINK-LIFT, DECK

$136.99

$

Usually ships in 3-6 days

0

12

Exmark 116-2645-03

LIFT-DECK, REAR

$394.99

$

Usually ships in 3-6 days

0

13

Exmark 116-5584

PIN-HOC

$5.49

$

In Stock, Qty 10

0

14

Exmark 109-9409

SUPPORT-CROSS SHAFT, BEARING

$14.99

$

In Stock, Qty 20+

0

15

Exmark 109-9410

BEARING-CROSS SHAFT, FRON

$5.49

$

In Stock, Qty 20+

0

16

Exmark 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 20+

0

17

Exmark 325-12

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

18

Exmark 325-17

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

19

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

20

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

21

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$6.99

$

In Stock, Qty 11

0

22

Exmark 3233-34

SCREW-CARR

$9.49

$

In Stock, only 3 left!

0

23

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

24

Exmark 116-1700

Bolt-Carriage 1/2-13 X 2 1/2 Spl Neck

$5.49

$

Usually ships in 3-6 days

0

25

Exmark 116-0559

BOLT-TAP

$6.49

$

Usually ships in 3-6 days

0

26

Exmark 116-2022

SCREW-HHF, SHOULDER

$8.99

$

Usually ships in 3-6 days

0

27

Exmark 132-5075-01

WEIGHT-TOE BOARD
(Superseded to 140-4963-01)

$153.99

$

Usually ships in 3-6 days

0

28

Exmark 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

29

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

31

Exmark 92-7674

BOLT-SHOULDER

$2.99

$

Usually ships in 3-6 days

0

32

Exmark 116-0000

SPRING-EXTENSION

$136.99

$

Usually ships in 3-6 days

0

33

Exmark 109-9065

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

34

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

0

35

Exmark 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

36

Exmark 116-2695

SPACER

$19.99

$

Usually ships in 3-6 days

0

37

Exmark 109-8007

LINK-ADJUSTER, DECK LIFT

$15.99

$

In Stock, Qty 20+

0

38

Exmark 109-7840

ADJUSTER-LIFT, DECK

$7.99

$

In Stock, Qty 20+

0

39

Exmark 109-8353

TRUNNION

$14.99

$

In Stock, Qty 6

0

40

Exmark 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0
