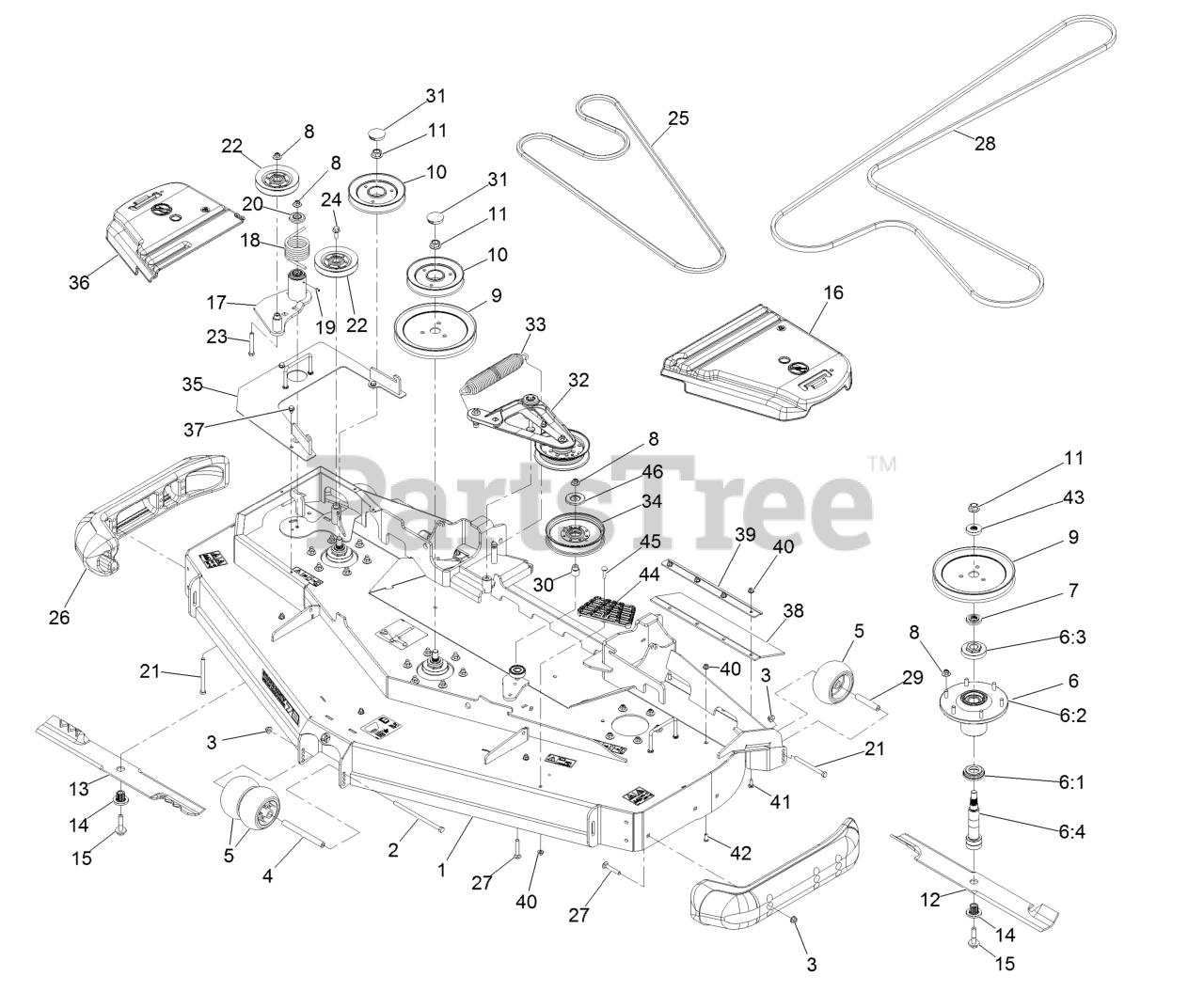

LZX940EKC72RW0 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV940 (SN: 402082300 - 404314158) (2018) Deck Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kohler ECV940

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-9827

Deck-Rd72 Nlz, W/Decals

$3409.99

$

Usually ships in 3-6 days

0

2

Exmark 108-5388

Screw-HH 3/8-16 X 7 3/8

$15.99

$

Usually ships in 3-6 days

0

3

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

4

Exmark 98-5967

Spacer-Wheel

$15.99

$

Usually ships in 3-6 days

0

5

Exmark 1-603299

Roller-Scalp, Anti

$23.99

$

In Stock, Qty 10

0

6

Exmark 109-6917

ASM,Spindle Housing

$521.99

$

In Stock, Qty 7

0

6:1

Exmark 103-9504

Guard, Bottom

$11.99

$

In Stock, only 2 left!

0

6:2

Exmark 103-9539

Asm, Cutter Housing

$374.99

$

In Stock, only 2 left!

0

6:3

Exmark 109-0916

Nut, Spindle 7/8-14

$24.99

$

In Stock, only 1 left!

0

6:4

Exmark 109-6881

Spindle,Double Spline

$129.99

$

In Stock, only 1 left!

0

7

Exmark 103-9522

Spacer, Splined Stepped

$6.99

$

In Stock, Qty 9

0

8

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 109-2180

Sheave,Blade Drive 9.00

$52.99

$

In Stock, only 4 left!

0

10

Exmark 116-8193

Sheave-Rd, Reverse Drive

$186.99

$

In Stock, only 1 left!

0

11

Exmark 109-7033

Nut-Flange 5/8-18 Centerlock

$2.99

$

In Stock, Qty 20+

0

12

Exmark 103-6389

Blade, Low Lift (72")
(Superseded to 103-6389-S)

$38.99

$

In Stock, Qty 7

0

12

Exmark 103-6404

Blade, Notched (72")
(Superseded to 103-6404-S)

$43.99

$

In Stock, Qty 20+

0

12

Exmark 116-5171

Blade-Extreme 2, 24.50"
(Superseded to 116-5171-S)

$43.99

$

In Stock, Qty 5

0

13

Exmark 116-8502

Blade-Low Lift 24.50, Rd72
(Superseded to 116-8502-S)

$38.99

$

In Stock, only 2 left!

0

13

Exmark 116-8503

Blade-Extreme 2-24.50, Rd72
(Superseded to 116-8503-S)

$37.99

$

In Stock, Qty 12

0

14

Exmark 103-3037

Bushing, Splined

$22.99

$

In Stock, Qty 20+

0

15

Exmark 109-9220

Screw-Sems 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

16

Exmark 109-6938

Cover-Belt, LH

$96.99

$

In Stock, only 2 left!

0

17

Exmark 126-0853

Idler ASM

$243.99

$

Usually ships in 3-6 days

0

18

Exmark 108-1921

Spring-Torsion

$30.99

$

Usually ships in 3-6 days

0

19

Exmark 302-19

Zerk-1/4-28 Str

$2.49

$

In Stock, Qty 8

0

20

Exmark 103-2916

Guard-Top

$2.99

$

In Stock, Qty 9

0

21

Exmark 323-23

Screw-HH 3/8-16 X 4-1/2

$5.49

$

In Stock, Qty 16

0

22

Exmark 126-1478

Sheave

$50.99

$

In Stock, only 2 left!

0

23

Exmark 323-13

Screw-HH 3/8-16 X 2 3/4

$3.99

$

In Stock, only 4 left!

0

24

Exmark 3234-11

Screw-HH Flg 3/8-16 X 1

$4.49

$

In Stock, Qty 20+

0

25

Exmark 116-8501

Belt

$119.99

$

Usually ships in 3-6 days

0

26

Exmark 112-1479

Skid-Bumper, Deck

$101.99

$

Usually ships in 3-6 days

0

27

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$6.99

$

In Stock, Qty 14

0

28

Exmark 109-8070

Belt
(Superseded to 109-8070-SL)

$148.99

$

Usually ships in 3-6 days

0

29

Exmark 98-7912

Tube-Spanner

$13.99

$

In Stock, Qty 12

0

30

Exmark 1-633456

Bushing, Idler

$5.49

$

In Stock, Qty 20+

0

31

Exmark 116-2253

Plug,Black Nylon 1.75

$2.99

$

In Stock, only 4 left!

0

32

Exmark 126-1720

Deck Idler ASM

$243.99

$

In Stock, only 2 left!

0

33

Exmark 116-6317

Spring-Extension

$28.99

$

In Stock, Qty 7

0

34

Exmark 126-9189

Idler-Pulley, Flat 6.00X1.00

$61.99

$

In Stock, Qty 8

0

35

Exmark 125-9374-01

Cover-Reverse Drive

$135.99

$

Usually ships in 3-6 days

0

36

Exmark 116-0094

Cover-Belt, RH

$86.99

$

In Stock, only 4 left!

0

37

Exmark 9266934

Screw-HWH 5/16 X 1/2 Tf

$8.99

$

In Stock, only 2 left!

0

38

Exmark 125-9380

Guard-Tire

$23.99

$

In Stock, only 4 left!

0

39

Exmark 126-0414-01

Support-Outer Flap

$22.99

$

Usually ships in 3-6 days

0

40

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

41

Exmark 3230-16

Bolt-Carriage 5/16-18 X 7/8

$2.99

$

In Stock, Qty 20+

0

42

Exmark 3274-55

Screw-Button Head 5/16-18 X 3/4

$5.49

$

In Stock, Qty 13

0

43

Exmark 103-9523

Spacer, Splined

$8.49

$

In Stock, only 2 left!

0

44

Exmark 126-4781-03

Step-Deck

$26.99

$

Usually ships in 3-6 days

0

45

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

46

Exmark 126-8043

Shield-Dust

$2.99

$

In Stock, only 3 left!

0
