LZX940EKC60RW0 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kohler ECV940 (SN: 404314159 - 406294344) (Rev B) (2019) Controls Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kohler ECV940

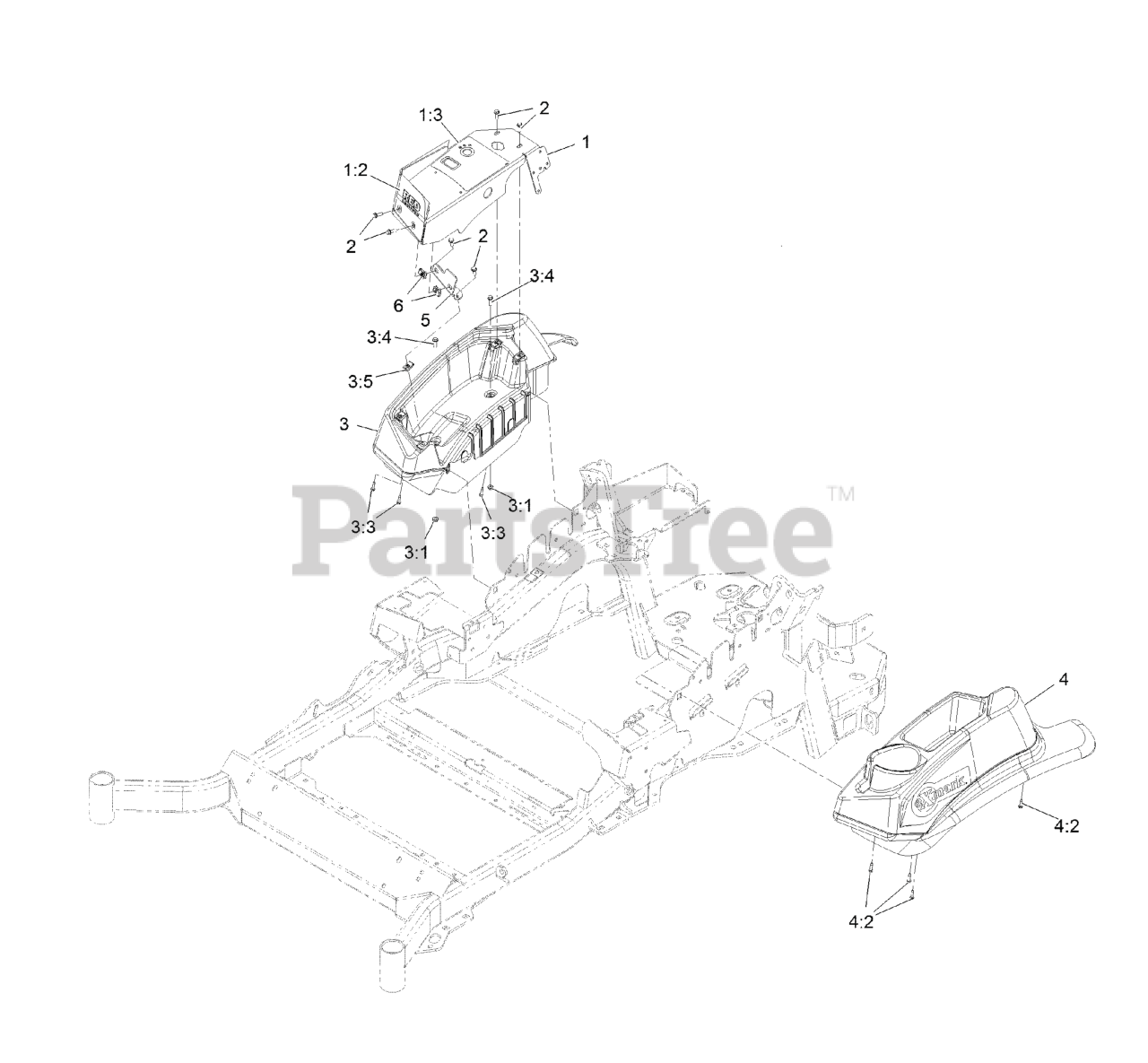

Controls Assembly Parts Diagram

  • Title

1

Exmark 126-7274

COVER PANEL ASM W/DECALS

$229.99

$

Usually ships in 3-6 days

0

1:2

Exmark 135-0404

DECAL-CONTROL PANEL RED

$35.99

$

Usually ships in 3-6 days

0

1:3

Exmark 126-4479

DECAL-CONSOLE

$16.99

$

Usually ships in 3-6 days

0

2

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

3

Exmark 109-9341

CONSOLE,RH NARROW ASM

$250.99

$

Usually ships in 3-6 days

0

3:1

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

3:3

Exmark 109-9345

SCREW,THD FORM,HWH

$1.49

$

Usually ships in 3-6 days

0

3:4

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

3:5

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

4

Exmark 109-9342

CONSOLE.LH NARROW ASM

$250.99

$

Usually ships in 3-6 days

0

4:2

Exmark 109-9345

SCREW,THD FORM,HWH

$1.49

$

Usually ships in 3-6 days

0

5

Exmark 126-4563-03

BRACKET-CONSOLE

$18.99

$

Usually ships in 3-6 days

0

6

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0
