LZX940EKC606W0 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kohler ECV940 (SN: 404314159 - 406294344) (Rev B) (2019) Main Frame Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kohler ECV940

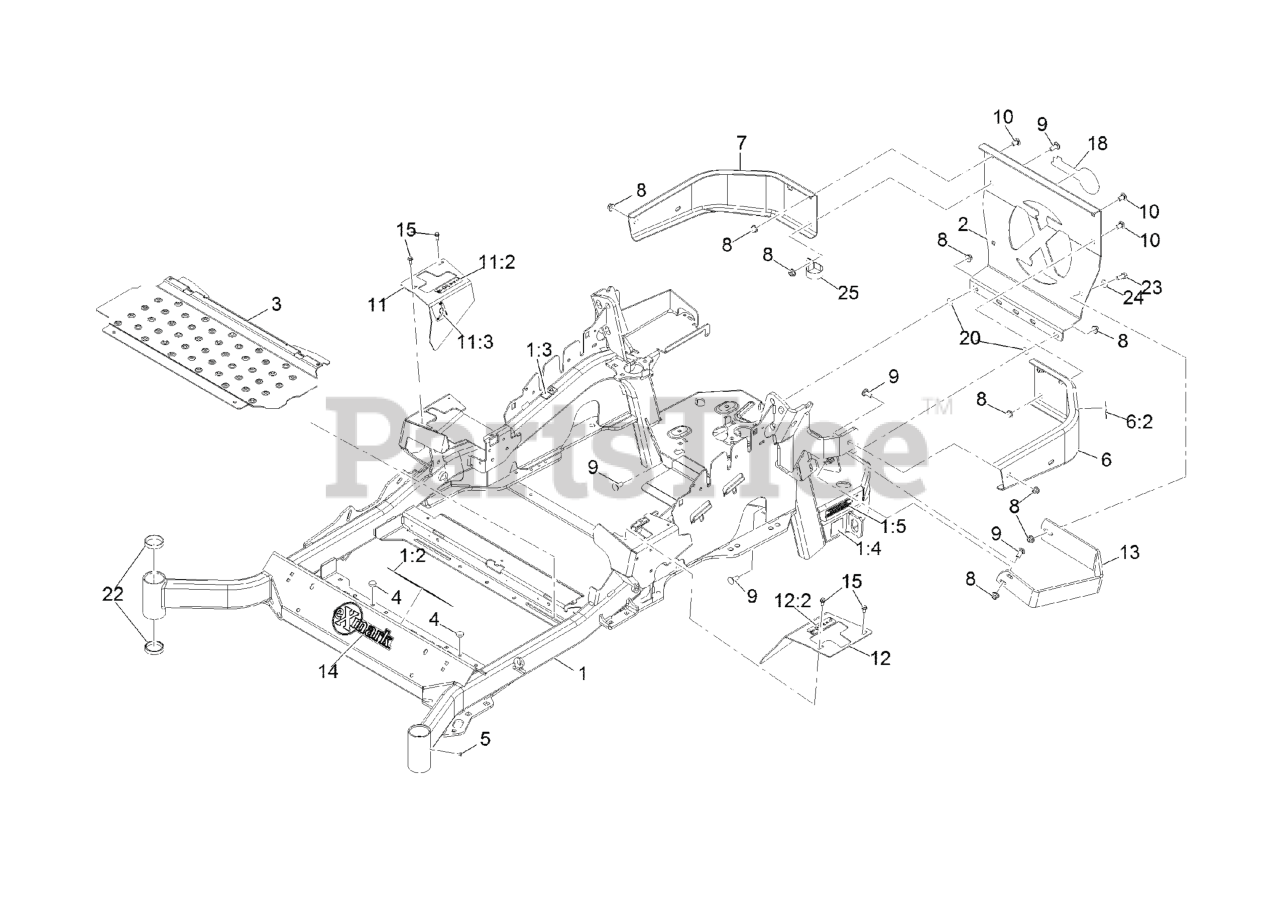

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-5902

MAINFRAME ASM

$

$

Not available

1:2

Exmark 132-0871

DECAL-DANGER

$9.99

$

In Stock, only 2 left!

0

1:3

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 2 left!

0

1:4

Exmark 106-2655

DECAL-HAZARD, PINCHED FINGER

$1.99

$

Usually ships in 3-6 days

0

1:5

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

2

Exmark 109-8863-03

PLATE,REAR GUARD

$192.99

$

Usually ships in 3-6 days

0

3

Exmark 116-8898-01

FLOORPAN

$115.99

$

Usually ships in 3-6 days

0

4

Exmark 1-513658

BUMPER

$6.99

$

In Stock, Qty 20+

0

5

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 10

0

6

Exmark 116-0180

LH BUMPER ASM

$157.99

$

Usually ships in 3-6 days

0

6:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 2 left!

0

7

Exmark 116-0057-03

BUMPER-RH

$233.99

$

Usually ships in 3-6 days

0

8

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

10

Exmark 3231-21

SCREW-CARR

$1.99

$

In Stock, only 1 left!

0

11

Exmark 116-5899

RH MOTION CONTROL COVER ASM

$52.99

$

Usually ships in 3-6 days

0

11:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$23.99

$

In Stock, only 1 left!

0

11:3

Exmark 116-5988

DECAL-PARK BRAKE, CE

$15.99

$

Usually ships in 3-6 days

0

12

Exmark 116-0580

LH MOTION CONTROL COVER ASM

$29.99

$

Usually ships in 3-6 days

0

12:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$23.99

$

In Stock, only 1 left!

0

13

Exmark 126-2067-03

GUARD-MUFFLER

$63.99

$

Usually ships in 3-6 days

0

14

Exmark 135-2274

DECAL-EXMARK

$27.99

$

In Stock, only 3 left!

0

15

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, only 2 left!

0

18

Exmark 126-6965

USE 126-6877
(Superseded to 126-6877)

$8.49

$

In Stock, only 3 left!

0

20

Exmark 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

22

Exmark 1-543508

CUP-BEARING

$8.49

$

In Stock, Qty 16

0

23

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

24

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Exmark 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0
