LZX940EKC60600 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kohler ECV940 (SN: 400000000 - 402082299) (2017) Controls Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kohler ECV940

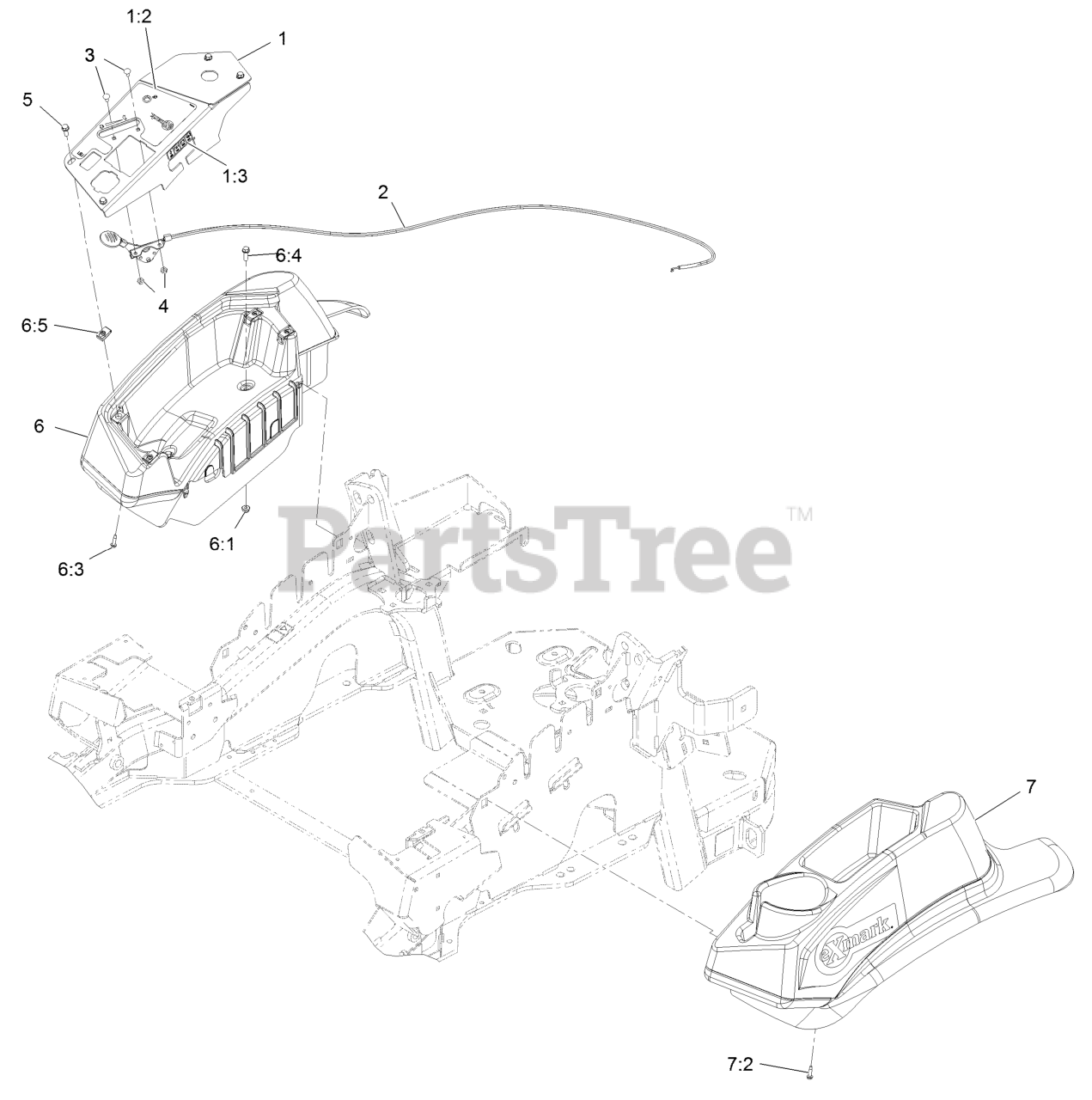

Controls Assembly Parts Diagram

  • Title

1

Exmark 116-2845

ASM,CONTROL PANEL W/DECAL

$125.99

$

Usually ships in 3-6 days

0

1:2

Exmark 116-8725

DECAL-CONTROL PANEL EFI

$17.99

$

Usually ships in 3-6 days

0

1:3

Exmark 114-4466

DECAL-FUSES

$6.49

$

In Stock, only 1 left!

0

2

Exmark 116-0969

ASM,THROTTLE CABLE

$49.99

$

In Stock, Qty 11

0

3

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

4

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

6

Exmark 109-9341

CONSOLE,RH NARROW ASM

$250.99

$

Usually ships in 3-6 days

0

6:1

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6:3

Exmark 109-9345

SCREW,THD FORM,HWH

$1.49

$

Usually ships in 3-6 days

0

6:4

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

6:5

Exmark 10706-9

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

7

Exmark 109-9342

CONSOLE.LH NARROW ASM

$250.99

$

Usually ships in 3-6 days

0

7:2

Exmark 109-9345

SCREW,THD FORM,HWH

$1.49

$

Usually ships in 3-6 days

0
