LZX940EKC606 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kohler ECV940 (SN: 313000000 - 313999999) (2013) Fuel Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kohler ECV940

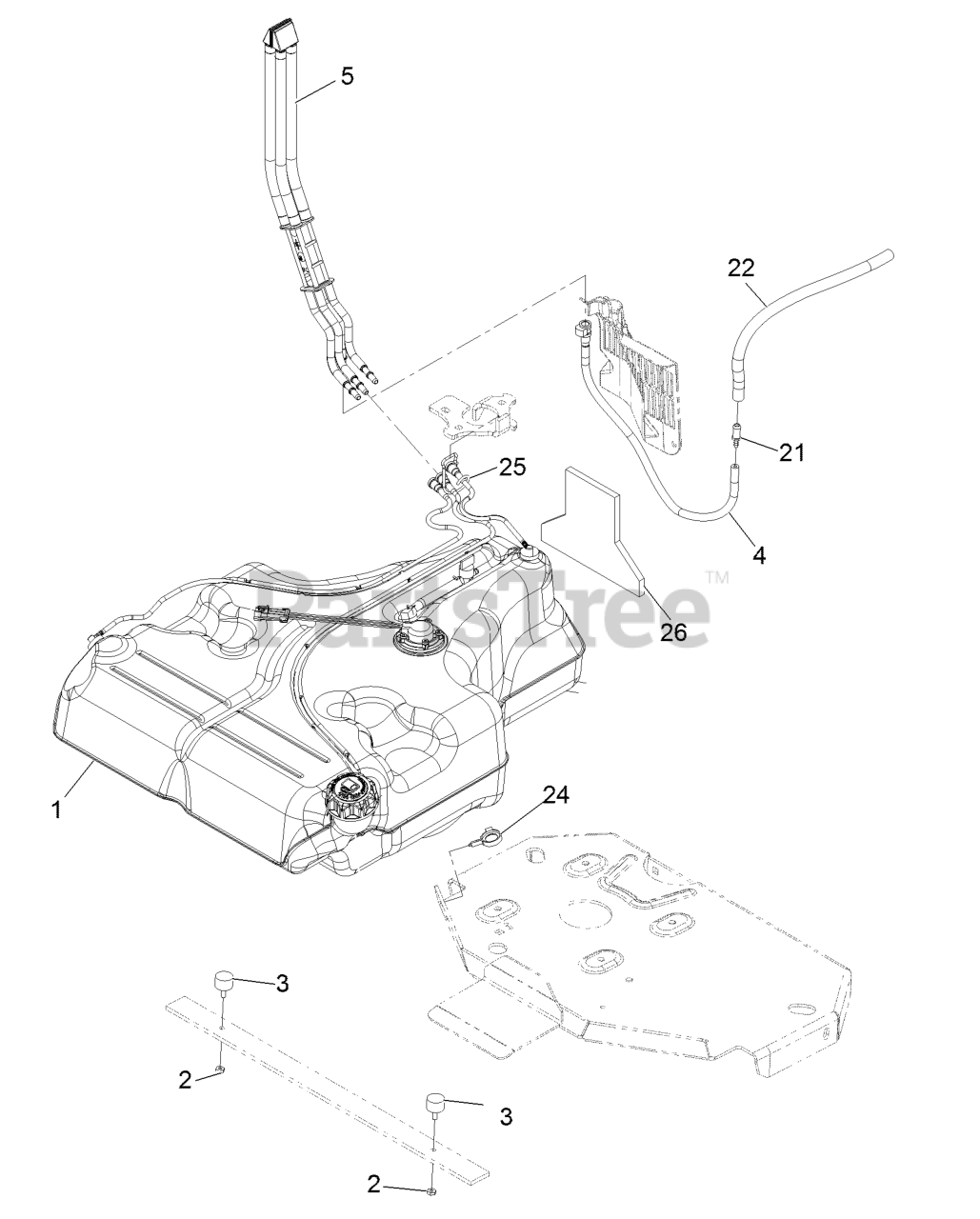

Fuel Assembly Parts Diagram

  • Title

1

Exmark 116-3979

135-0643
(Superseded to 135-0643)

$

$

Not available

2

Exmark 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

3

Exmark 116-6380

1-523420
(Superseded to 1-523420)

$14.99

$

Usually ships in 3-6 days

0

4

Exmark 116-3977

HOSE ASM

$31.99

$

Usually ships in 3-6 days

0

5

Exmark 109-9491

FUEL MANIFOLD VENT ASM
(Superseded to 135-7569)

$117.99

$

Usually ships in 3-6 days

0

21

Exmark 98-2952

FITTING-STRAIGHT

$9.49

$

Usually ships in 3-6 days

0

22

Exmark 116-5087

HOSE-FUEL

$19.99

$

Usually ships in 3-6 days

0

24

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

25

Exmark 116-6005

RETAINER-LINE, VAPOR

$5.49

$

Usually ships in 3-6 days

0

26

Exmark 126-0224

INSULATION-FOAM, FUEL TAN

$8.49

$

Usually ships in 3-6 days

0
