LZX921GKA726C1 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX (SN: 404314159 - 406294344) (2019) Full Suspension Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX

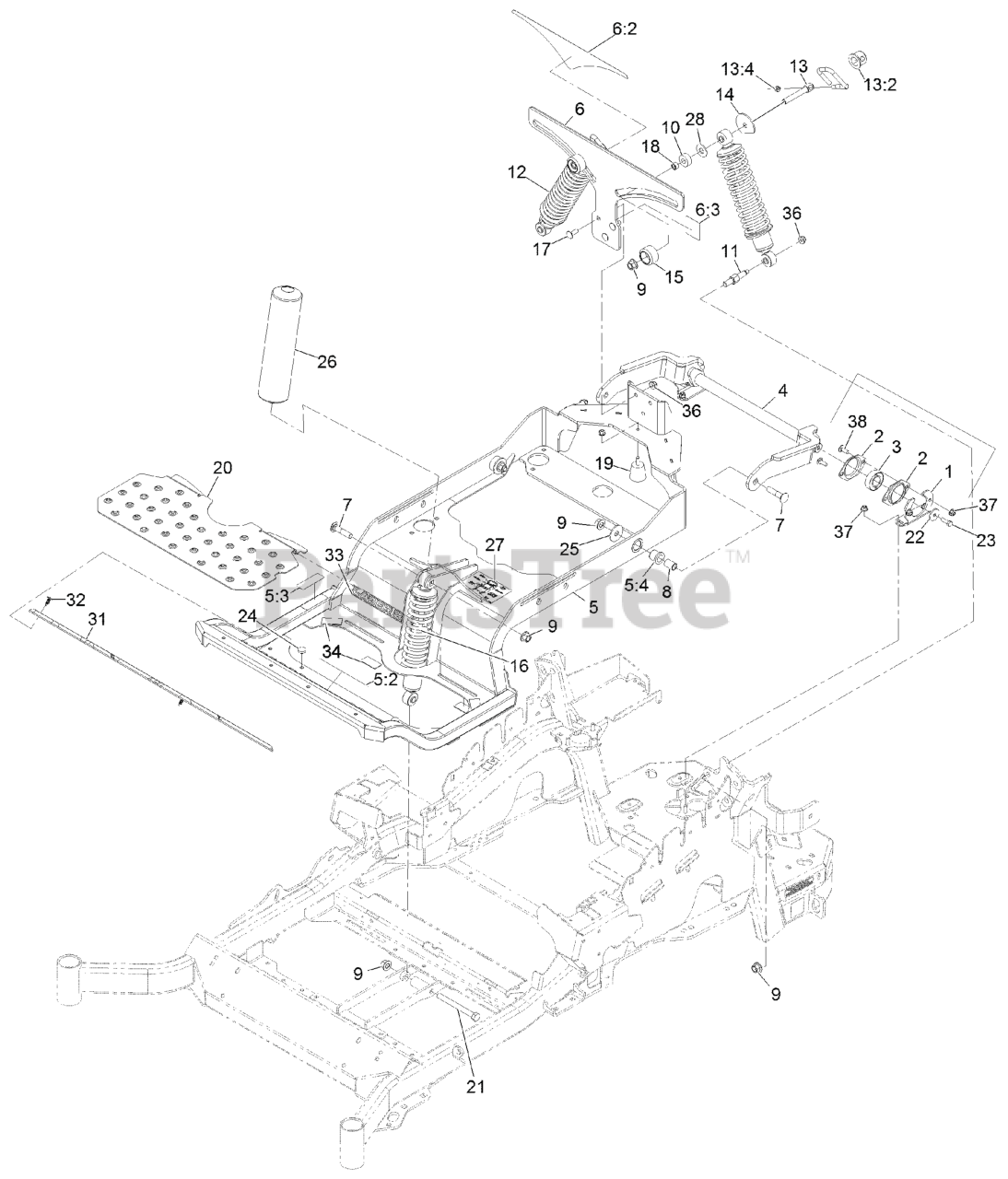

Full Suspension Assembly Parts Diagram

  • Title

1

Exmark 127-6759-03

BRACKET-BEARING

$23.99

$

Usually ships in 3-6 days

0

2

Exmark 127-6743

HOUSING-BEARING, FLANGE

$5.49

$

Usually ships in 3-6 days

0

3

Exmark 1-653346

BEARING

$71.99

$

In Stock, Qty 20+

0

4

Exmark 127-6754-03

ARM-TRAILING

$270.99

$

Usually ships in 3-6 days

0

5

Exmark 132-5057

SUBFRAME ASM

$995.99

$

Usually ships in 3-6 days

0

5:2

Exmark 132-0871

DECAL-DANGER

$9.49

$

In Stock, only 2 left!

0

5:3

Exmark 115-9625

DECAL-BRAKE, PARKING

$5.49

$

Usually ships in 3-6 days

0

5:4

Exmark 127-6745

BUSHING-FLANGE

$11.99

$

Usually ships in 3-6 days

0

6

Exmark 133-1809

BRACKET-MOUNTING

$241.99

$

Usually ships in 3-6 days

0

6:2

Exmark 132-5080

DECAL-ADJUSTMENT, RIDE

$56.99

$

Usually ships in 3-6 days

0

6:3

Exmark 132-5063

DECAL-LOCK, CAM

$5.99

$

Usually ships in 3-6 days

0

7

Exmark 127-6768

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

8

Exmark 127-6751

SPACER-ALUMINUM

$9.49

$

Usually ships in 3-6 days

0

9

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

10

Exmark 131-8801

SPACER

$8.99

$

Usually ships in 3-6 days

0

11

Exmark 131-6348

BOLT-SHOULDER

$16.99

$

Usually ships in 3-6 days

0

12

Exmark 133-1815

SHOCK/SPRING ASM

$131.99

$

In Stock, only 2 left!

0

13

Exmark 131-8843

CAM LOCK ASM

$34.99

$

Usually ships in 3-6 days

0

13:2

Exmark 107-1644

CAP-LOCK

$40.99

$

In Stock, only 2 left!

0

13:4

Exmark 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

14

Exmark 131-4646

PLATE-STOP

$5.49

$

Usually ships in 3-6 days

0

15

Exmark 131-4647

KNOB-FRONT

$18.99

$

Usually ships in 3-6 days

0

16

Exmark 136-1719

SHOCK ASM-FRONT

$131.99

$

Usually ships in 3-6 days

0

16

Exmark 136-8993

SHOCK/SPRING ASM

$174.99

$

Usually ships in 3-6 days

0

17

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

18

Exmark 47-7270

BEARING-NEEDLE

$30.99

$

In Stock, only 4 left!

0

19

Exmark 132-5058

BUMPER-RUBBER

$12.99

$

Usually ships in 3-6 days

0

20

Exmark 132-5089-01

FLOORPAN

$115.99

$

Usually ships in 3-6 days

0

21

Exmark 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

22

Exmark 105-3048

WASHER-FLAT

$1.49

$

In Stock, Qty 20+

0

23

Exmark 116-0648

SCREW-HH, THREAD LOCKING

$1.49

$

In Stock, Qty 20+

0

24

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 9

0

25

Exmark 86-1990

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

26

Exmark 133-1803

COVER-SHOCK

$12.99

$

In Stock, only 3 left!

0

27

Exmark 114-4465

DECAL-SERVICE AID

$29.99

$

Usually ships in 3-6 days

0

28

Exmark 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Exmark 133-1812

FLOOR MAT

$74.99

$

Usually ships in 3-6 days

0

32

Exmark 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

33

Exmark 133-1804

DECAL-LAZER LOGO

$7.99

$

Usually ships in 3-6 days

0

34

Exmark 130-0733

PAD-RUBBER

$1.99

$

Usually ships in 3-6 days

0

36

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

37

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

38

Exmark 3230-10

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0
