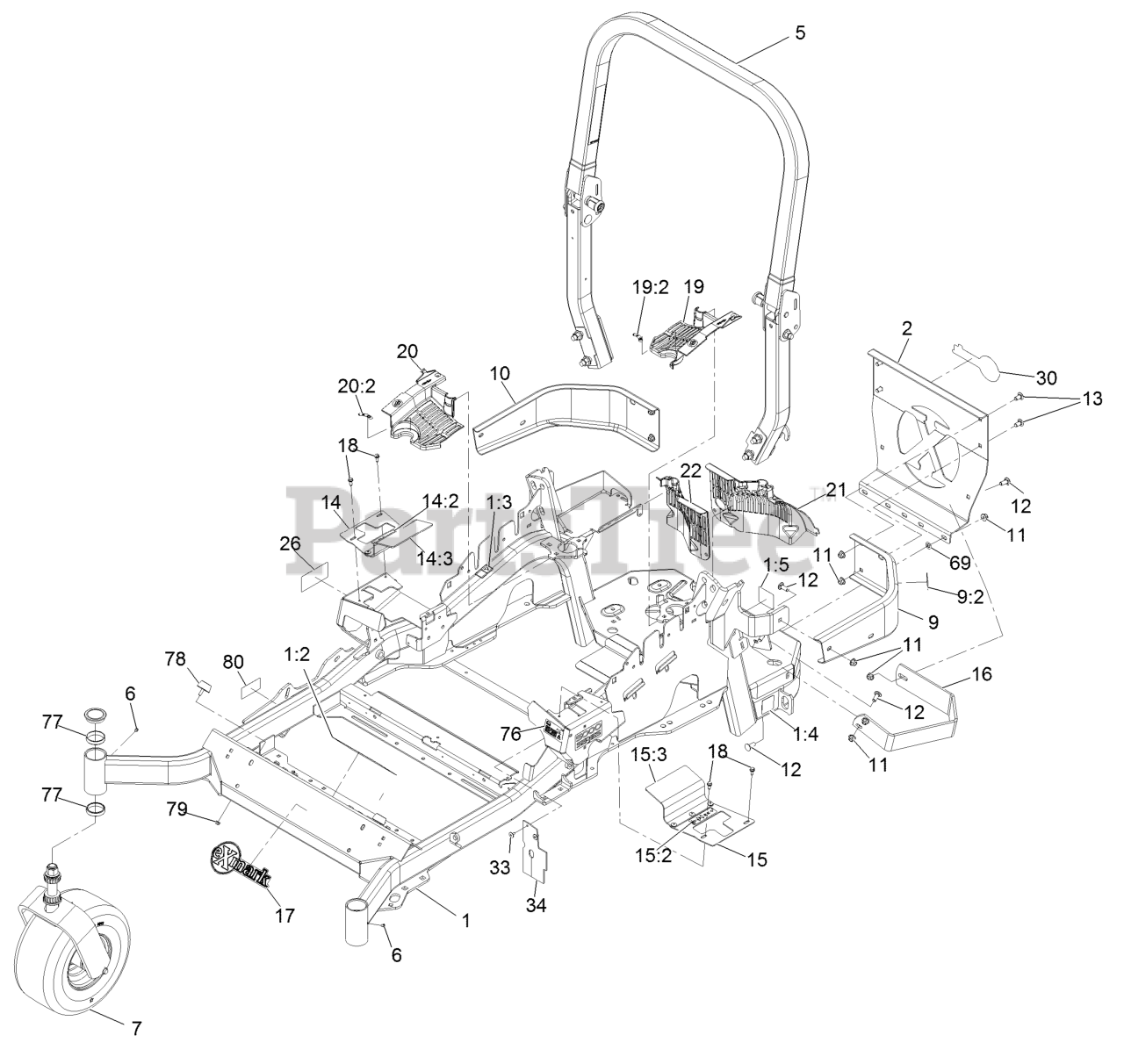

LZX921GKA726C1 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX (SN: 400000000 - 402082299) (2017) Mainframe Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX

Mainframe Assembly Parts Diagram

  • Title

1

Exmark 116-5904

MAINFRAME ASM
(Superseded to 142-7266)

$2596.99

$

Usually ships in 3-6 days

0

1:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

1:3

Exmark 132-0871

DECAL-DANGER

$9.49

$

In Stock, only 2 left!

0

1:4

Exmark 106-2655

DECAL-HAZARD, PINCHED FINGER

$1.49

$

In Stock, only 1 left!

0

1:5

Exmark 116-4858

DECAL-SPARK ARRESTER

$3.49

$

In Stock, only 1 left!

0

2

Exmark 109-8863-03

PLATE,REAR GUARD

$181.99

$

Usually ships in 3-6 days

0

5

Exmark 116-0230

ASM,ROPS SERVICE EXMARK

$446.99

$

Usually ships in 3-6 days

0

6

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

7

Caster Wheel ASM

Note: Not serviced separately

$

$

Not available

9

Exmark 116-0180

LH BUMPER ASM

$148.99

$

Usually ships in 3-6 days

0

9:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

10

Exmark 116-0057-03

BUMPER-RH

$220.99

$

In Stock, only 1 left!

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

13

Exmark 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

14

Exmark 131-4615

RH MOTION CONTROL COVER A

$127.99

$

Usually ships in 3-6 days

0

14:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

14:3

Exmark 131-4605

FLAP-RUBBER

$26.99

$

Usually ships in 3-6 days

0

15

Exmark 131-4610

LH MOTION CONTROL COVER A

$127.99

$

Usually ships in 3-6 days

0

15:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

15:3

Exmark 131-4605

FLAP-RUBBER

$26.99

$

Usually ships in 3-6 days

0

16

Exmark 126-2067-03

GUARD-MUFFLER

$60.99

$

Usually ships in 3-6 days

0

17

Exmark 126-6969

DECAL-EXMARK LOGO

$7.99

$

In Stock, Qty 17

0

18

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

19

Exmark 116-0170

LH HYDRO GUARD ASM

$85.99

$

In Stock, only 3 left!

0

19:2

Exmark 116-8726

DECAL-OIL, HYDRO

$5.49

$

In Stock, Qty 20+

0

20

Exmark 116-0171

RH HYDRO GUARD ASM

$85.99

$

Usually ships in 3-6 days

0

20:2

Exmark 116-8726

DECAL-OIL, HYDRO

$5.49

$

In Stock, Qty 20+

0

21

Exmark 109-9709

GUARD-HYDRO REAR, LH TRIM

$19.99

$

Usually ships in 3-6 days

0

22

Exmark 109-9058

GUARD-HYDRO, REAR (RH)

$25.99

$

In Stock, only 3 left!

0

26

Exmark 126-6573

DECAL-X-SERIES

$3.49

$

In Stock, Qty 5

0

30

Exmark 126-6965

DECAL-EXMARK LOGO
(Superseded to 126-6877)

$7.99

$

In Stock, Qty 9

0

33

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

34

Exmark 116-2362

DEFLECTOR-AIR FLOW

$6.49

$

Usually ships in 3-6 days

0

69

Exmark 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

76

Exmark 117-3864

DECAL-FUEL FILL, CE

$13.99

$

In Stock, only 1 left!

0

77

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 15

0

78

Exmark 131-8834

BUMPER

$11.99

$

Usually ships in 3-6 days

0

79

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

80

Exmark 126-4345

Decal-Patent

$1.99

$

In Stock, Qty 9

0
