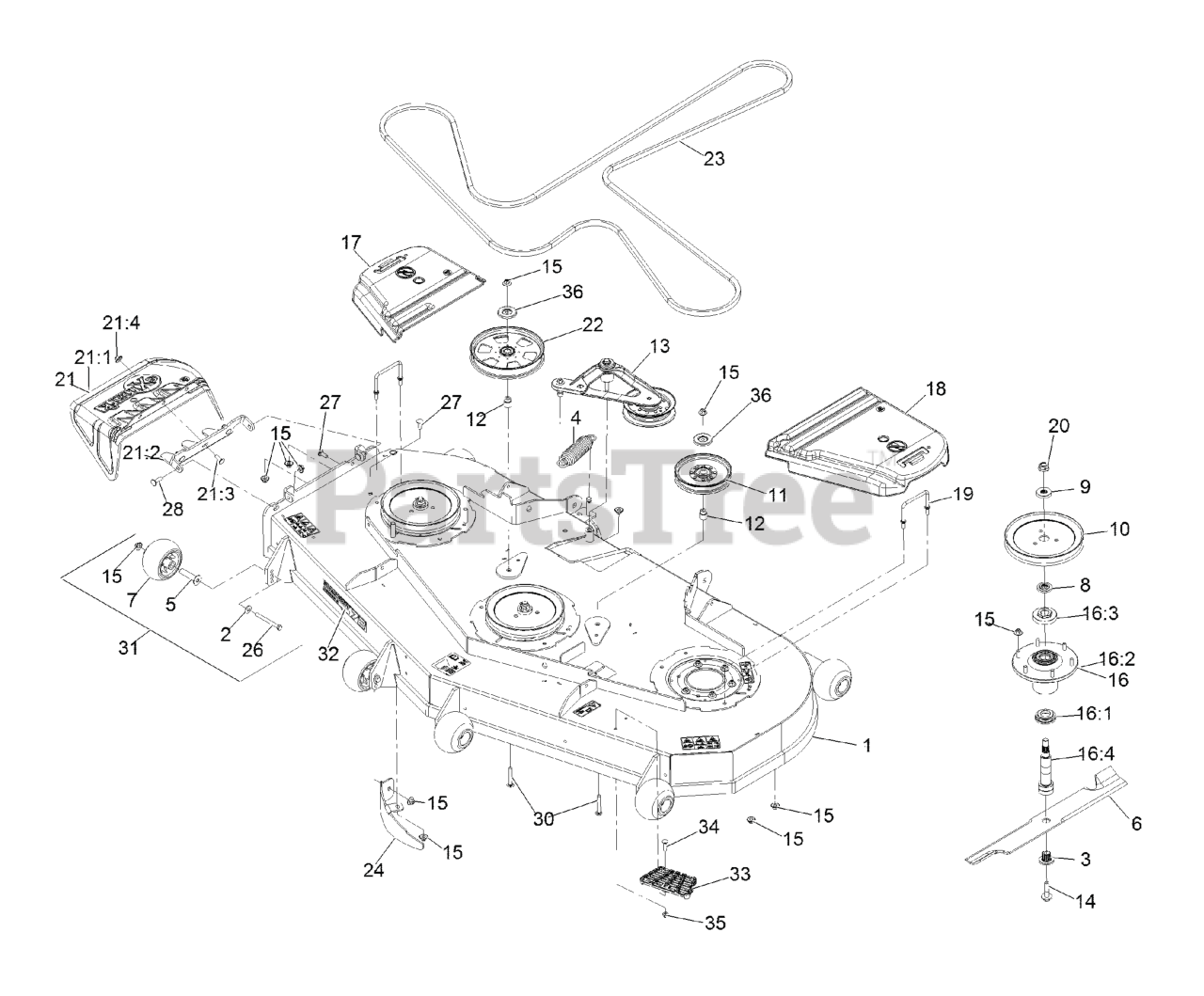

LZX921GKA72600 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX (SN: 404314159 - 406294344) (Rev B) (2019) Deck Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-1665

ASM,DECK W/DECALS 724

$4402.99

$

Usually ships in 3-6 days

0

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

3

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 20+

0

4

Exmark 116-6317

SPRING-EXTENSION

$29.99

$

In Stock, Qty 20+

0

5

Exmark 116-8131

AXLE, ROLLER

$13.99

$

In Stock, Qty 20+

0

6

Exmark 103-6384

USE 103-6384-S
(Superseded to 103-6384-S)

$44.99

$

In Stock, Qty 20+

0

6

Exmark 103-6389

USE 103-6389-S
(Superseded to 103-6389-S)

$38.99

$

In Stock, Qty 20+

0

6

Exmark 103-6394

USE 103-6394-S
(Superseded to 103-6394-S)

Note: Torque to 160-185 ft-lb

$38.99

$

In Stock, Qty 20+

0

6

Exmark 103-6404

USE 103-6404-S
(Superseded to 103-6404-S)

$44.99

$

In Stock, Qty 20+

0

6

Exmark 116-5171

USE 116-5171-S
(Superseded to 116-5171-S)

$44.99

$

In Stock, Qty 20+

0

7

Exmark 103-8415

ROLLER-SCALP, ANTI

$25.99

$

In Stock, only 3 left!

0

8

Exmark 103-9522

SPACER,SPLINED STEPPED

$7.49

$

In Stock, Qty 20+

0

9

Exmark 103-9523

SPACER,SPLINED

$8.49

$

In Stock, Qty 17

0

10

Exmark 109-2180

SHEAVE,BLADE DRIVE 9.00

$53.99

$

In Stock, only 3 left!

0

11

Exmark 126-7685

IDLER-PULLEY

$66.99

$

In Stock, Qty 20+

0

12

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

13

Exmark 116-3755

DECK IDLER ASM

$267.99

$

In Stock, Qty 20+

0

14

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.99

$

In Stock, Qty 20+

0

15

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

16

Exmark 109-6917

ASM,SPINDLE HOUSING

$402.99

$

In Stock, Qty 9

0

16:1

Exmark 103-9504

GUARD,BOTTOM

$12.99

$

In Stock, Qty 5

0

16:2

Exmark 103-9539

ASM,CUTTER HOUSING

$392.99

$

In Stock, only 2 left!

0

16:3

Exmark 109-0916

NUT, SPINDLE 7/8-14

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$25.99

$

In Stock, only 2 left!

0

16:4

Exmark 109-6881

SPINDLE,DOUBLE SPLINE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$143.99

$

In Stock, Qty 6

0

17

Exmark 116-0094

COVER-BELT, RH

$92.99

$

In Stock, Qty 20+

0

18

Exmark 109-6938

COVER-BELT, LH

$102.99

$

In Stock, Qty 20+

0

19

Exmark 109-6982

WIREFORM-COVER

$12.99

$

In Stock, Qty 9

0

20

Exmark 109-7033

NUT-FLANGE, CENTERLOCK

$2.99

$

In Stock, Qty 20+

0

21

Exmark 109-7188

ASM,DISCHARGE CHUTE

$115.99

$

In Stock, only 2 left!

0

21:1

Exmark 109-2738

CHUTE,DISCHARGE

$81.99

$

In Stock, Qty 12

0

21:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$54.99

$

In Stock, only 2 left!

0

21:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

21:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

22

Exmark 116-9639

PULLEY-IDLER, FLAT

$101.99

$

In Stock, Qty 20+

0

23

Exmark 135-5777

USE 135-5777-SL
(Superseded to 135-5777-SL)

$165.99

$

In Stock, Qty 20+

0

24

Exmark 116-5834-01

BAFFLE-DOGLEG, LZ72

$84.99

$

Usually ships in 3-6 days

0

26

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

0

27

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

28

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

30

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

31

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$55.99

$

In Stock, Qty 20+

0

32

Exmark 126-6593

DECAL, 726

$9.49

$

Usually ships in 3-6 days

0

33

Exmark 126-4781-03

STEP-DECK

$28.99

$

In Stock, only 2 left!

0

34

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

35

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

36

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, Qty 20+

0
