LZX921GKA72600 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX (SN: 402082300 - 404314158) (2018) Main Frame Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX

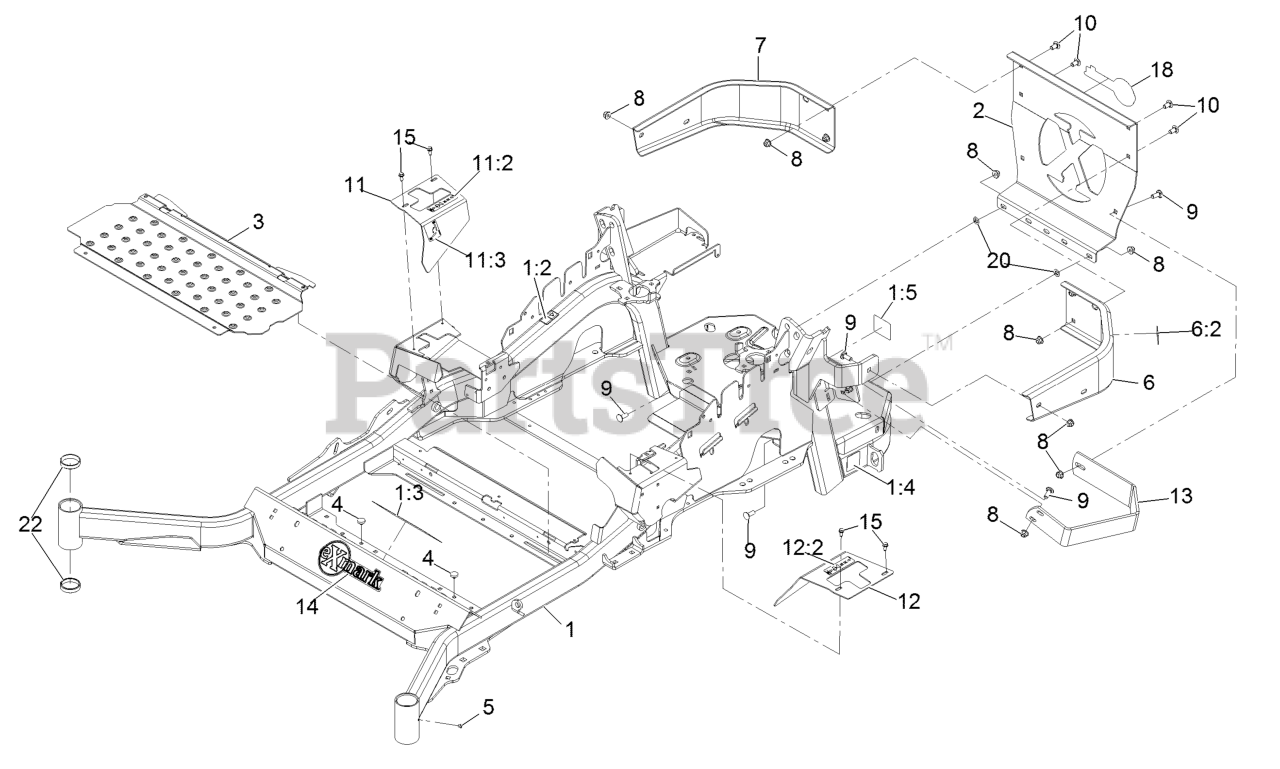

Main Frame Assembly Parts Diagram

  • Title
1

Exmark 116-5904

Mainframe ASM
(Superseded to 142-7266)

$2596.99

$

Usually ships in 3-6 days

0

1:2

Exmark 106-5517

Decal-Warning

$5.49

$

In Stock, only 3 left!

0

1:3

Exmark 132-0871

Decal-Danger

$9.49

$

In Stock, only 2 left!

0

1:4

Exmark 106-2655

Decal-Hazard, Pinched Finger

$1.49

$

In Stock, only 1 left!

0

1:5

Exmark 116-4858

Decal-Spark Arrester

$3.49

$

In Stock, only 1 left!

0

2

Exmark 109-8863-03

Plate,Rear Guard

$181.99

$

Usually ships in 3-6 days

0

3

$108.99

$

Usually ships in 3-6 days

0

4

$6.49

$

In Stock, Qty 9

0

$5.49

$

In Stock, Qty 11

0

6

Exmark 116-0180

LH Bumper ASM

$148.99

$

Usually ships in 3-6 days

0

6:2

Exmark 106-5517

Decal-Warning

$5.49

$

In Stock, only 3 left!

0

7

Exmark 116-0057-03

Bumper-RH

$220.99

$

In Stock, only 1 left!

0

8

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

10

Exmark 3231-21

Bolt-Carriage 3/8-16 X 3/4

$1.49

$

In Stock, only 1 left!

0

11

Exmark 116-5899

RH Motion Control Cover ASM

$49.99

$

Usually ships in 3-6 days

0

11:2

Exmark 99-8936

Decal-Control, Motion

$22.99

$

In Stock, only 2 left!

0

11:3

Exmark 116-5988

Decal-Park Brake, CE

$14.99

$

In Stock, only 1 left!

0

12

Exmark 116-0580

LH Motion Control Cover ASM

$28.99

$

Usually ships in 3-6 days

0

12:2

Exmark 99-8936

Decal-Control, Motion

$22.99

$

In Stock, only 2 left!

0

13

Exmark 126-2067-03

Guard-Muffler

$60.99

$

Usually ships in 3-6 days

0

14

Exmark 135-2274

Decal-Exmark

$26.99

$

In Stock, only 4 left!

0

15

Exmark 32144-10

Screw-HWH 1/4-20 X .62

$4.99

$

In Stock, Qty 15

0

18

Exmark 126-6965

Decal-Exmark Logo
(Superseded to 126-6877)

$7.99

$

In Stock, Qty 9

0

20

Exmark 107-3154

Nut-Push 3/8-16

$1.49

$

In Stock, Qty 6

0

22

Exmark 1-543508

Cup-Bearing Tapered Roller

$7.99

$

In Stock, Qty 15

0
