LZX801GKA606B1 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX (SN: 315000000 - 315999999) (2015) Seat Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX

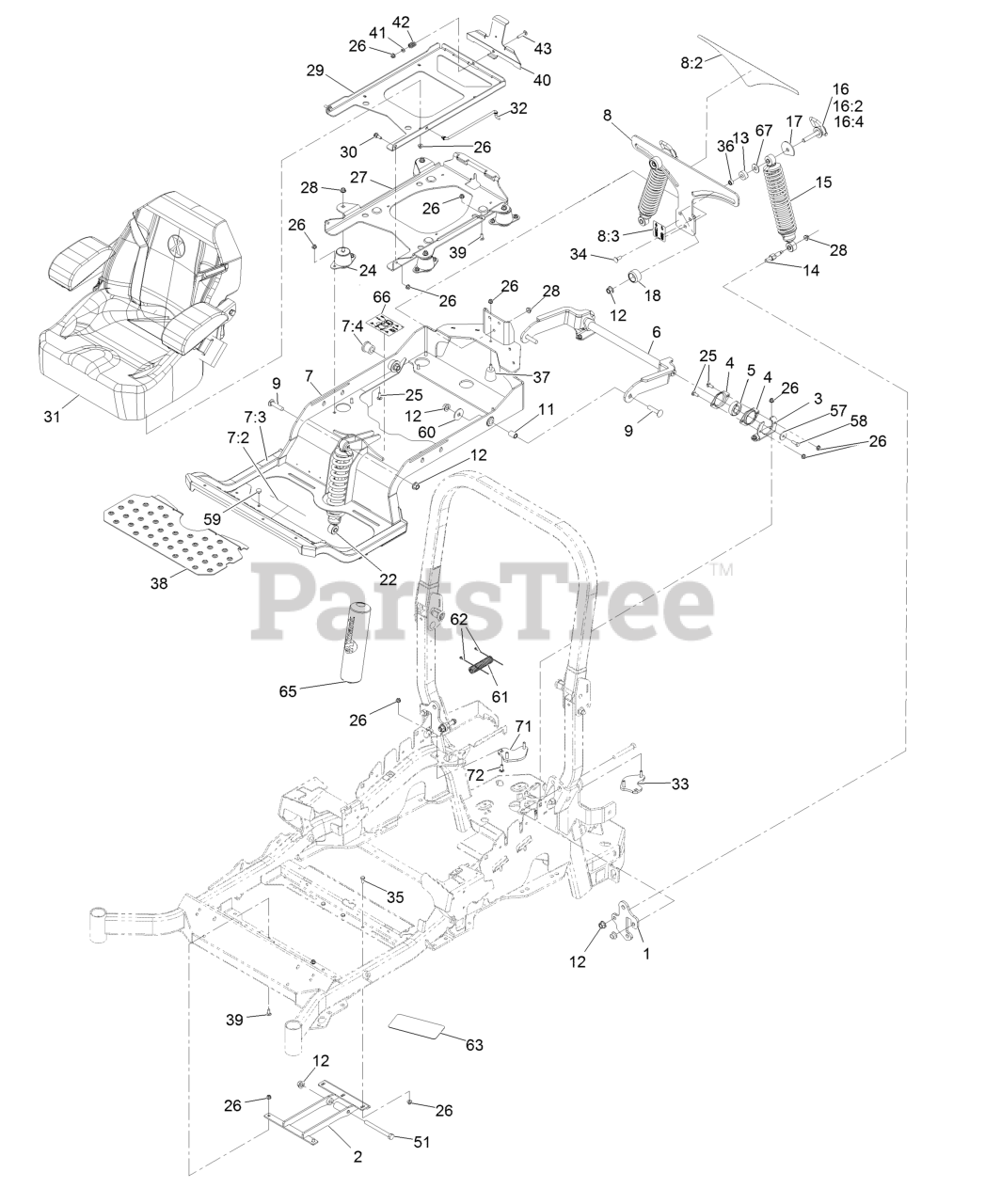

Seat Assembly Parts Diagram

  • Title

1

Exmark 131-6333-01

PLATE-MOUNT, SHOCK

$23.99

$

Usually ships in 3-6 days

0

2

Exmark 131-6327-01

MOUNT-LOWER

$139.99

$

Usually ships in 3-6 days

0

3

Exmark 127-6759-03

BRACKET-BEARING

$23.99

$

Usually ships in 3-6 days

0

4

Exmark 127-6743

HOUSING-BEARING, FLANGE

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 1-653346

BEARING

$71.99

$

In Stock, Qty 7

0

6

Exmark 127-6754-03

ARM-TRAILING

$270.99

$

Usually ships in 3-6 days

0

7

Exmark 132-5057

SUBFRAME ASM

$995.99

$

Usually ships in 3-6 days

0

7:2

Exmark 132-0871

DECAL-DANGER

$9.49

$

In Stock, only 2 left!

0

7:3

Exmark 115-9625

DECAL-BRAKE, PARKING

$5.49

$

Usually ships in 3-6 days

0

7:4

Exmark 127-6745

BUSHING-FLANGE

$11.99

$

Usually ships in 3-6 days

0

8

Exmark 132-5062

BRACKET-MOUNTING

$

$

Not available

8:2

Exmark 132-5080

DECAL-ADJUSTMENT, RIDE

$54.99

$

Usually ships in 3-6 days

0

8:3

Exmark 132-5063

DECAL-LOCK, CAM

$5.99

$

Usually ships in 3-6 days

0

9

Exmark 3233-27

SCREW-CARR

$12.99

$

Usually ships in 3-6 days

0

11

Exmark 127-6751

SPACER-ALUMINUM

$9.49

$

Usually ships in 3-6 days

0

12

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

13

Exmark 131-8801

SPACER

$8.99

$

Usually ships in 3-6 days

0

14

Exmark 131-6348

BOLT-SHOULDER

$15.99

$

Usually ships in 3-6 days

0

15

Exmark 131-8827

133-1815
(Superseded to 133-1815)

$131.99

$

In Stock, only 2 left!

0

16

Exmark 131-8843

CAM LOCK ASM

$34.99

$

Usually ships in 3-6 days

0

16:2

Exmark 107-1644

CAP-LOCK

$38.99

$

In Stock, only 2 left!

0

16:4

Exmark 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

17

Exmark 131-4646

PLATE-STOP

$5.49

$

Usually ships in 3-6 days

0

18

Exmark 131-4647

KNOB-FRONT

$18.99

$

Usually ships in 3-6 days

0

22

Exmark 131-8829

136-8956
(Superseded to 136-8956)

$131.99

$

Usually ships in 3-6 days

0

24

Exmark 109-9034

ISOLATOR-SEAT

$68.99

$

In Stock, Qty 6

0

25

Exmark 3230-10

BOLT-CARR

$3.99

$

Usually ships in 3-6 days

0

26

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

27

Exmark 131-6324-03

PLATE-SUPPORT, ISO SEAT

$212.99

$

Usually ships in 3-6 days

0

28

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

29

Exmark 116-3859-03

PLATE-FRAME, SEAT

$126.99

$

Usually ships in 3-6 days

0

30

Exmark 116-1297

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

31

Exmark 126-5801

SEAT-EXMARK STANDARD

$1339.99

$

Usually ships in 3-6 days

0

32

Exmark 116-0070

ROD-PROP

$21.99

$

Usually ships in 3-6 days

0

33

Exmark 127-6766

LH PLATE ASM (W/STUDS)

$39.99

$

Usually ships in 3-6 days

0

34

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

35

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

36

Exmark 47-7270

BEARING-NEEDLE

$30.99

$

In Stock, only 4 left!

0

37

Exmark 132-5058

BUMPER-RUBBER

$12.99

$

Usually ships in 3-6 days

0

38

Exmark 132-5089-01

FLOORPAN

$104.99

$

Usually ships in 3-6 days

0

39

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

40

Exmark 132-5088-03

PLATE-LATCH,SEAT

$37.99

$

Usually ships in 3-6 days

0

41

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

42

Exmark 107-3017

SPRING-COMPRESSION

$2.99

$

In Stock, only 1 left!

0

43

Exmark 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

51

Exmark 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

57

Exmark 105-3048

WASHER-FLAT

$1.49

$

In Stock, Qty 12

0

58

Exmark 116-0648

SCREW-HH, THREAD LOCKING

$1.49

$

In Stock, Qty 20+

0

59

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

60

Exmark 86-1990

WASHER-THRUST

$3.99

$

In Stock, only 3 left!

0

61

Exmark 131-8846

COVER-HOSE

$2.99

$

Usually ships in 3-6 days

0

62

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

63

Exmark 131-8835

TREAD-GRIP

$5.49

$

Usually ships in 3-6 days

0

65

Exmark 132-5059

COVER-SHOCK

$10.99

$

Usually ships in 3-6 days

0

66

Exmark 114-4465

DECAL-SERVICE AID

$29.99

$

Usually ships in 3-6 days

0

67

Exmark 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

71

Exmark 127-6765

RH PLATE ASM (W/STUDS)

$39.99

$

Usually ships in 3-6 days

0

72

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0
