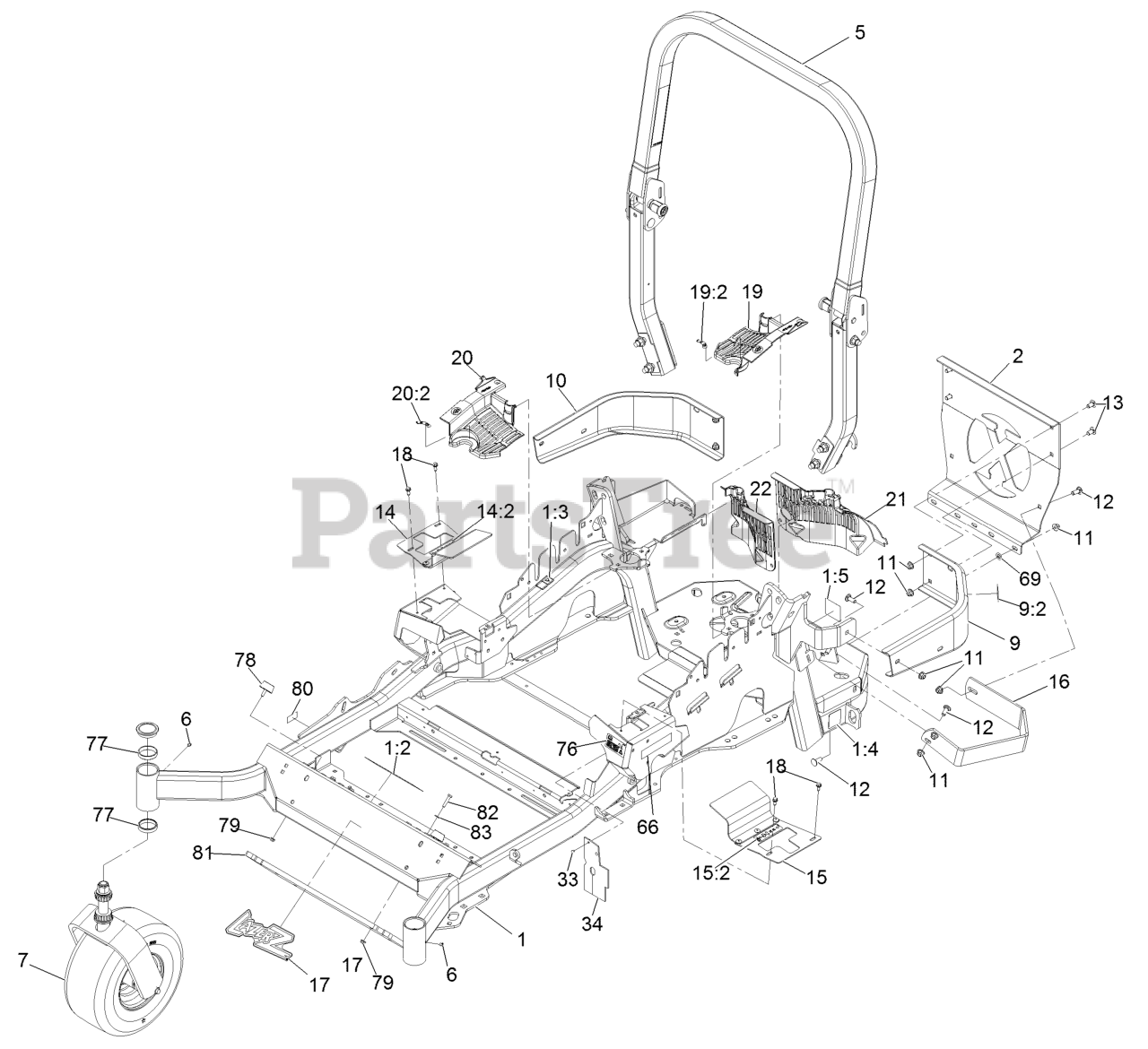

LZX801GKA606B1 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX (SN: 315000000 - 315999999) (2015) Main Frame Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-5902

MAINFRAME ASM

$

$

Not available

1:2

Exmark 127-0335

DECAL-WARNING, SLOPE

$6.49

$

Usually ships in 3-6 days

0

1:3

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

1:4

Exmark 106-2655

DECAL-HAZARD, PINCHED FINGER

$1.49

$

In Stock, only 1 left!

0

1:5

Exmark 116-4858

DECAL-SPARK ARRESTER

$3.49

$

In Stock, only 1 left!

0

2

Exmark 109-8863-03

PLATE,REAR GUARD

$181.99

$

Usually ships in 3-6 days

0

5

Exmark 116-0230

ASM,ROPS SERVICE EXMARK

$446.99

$

Usually ships in 3-6 days

0

6

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

7

Caster Wheel ASM

Note: Not serviced separately

$

$

Not available

9

Exmark 116-0180

LH BUMPER ASM

$148.99

$

Usually ships in 3-6 days

0

9:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

10

Exmark 116-0057-03

BUMPER-RH

$220.99

$

In Stock, only 1 left!

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

13

Exmark 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

14

Exmark 131-4615

RH MOTION CONTROL COVER A

$127.99

$

Usually ships in 3-6 days

0

14:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

15

Exmark 131-4610

LH MOTION CONTROL COVER A

$127.99

$

Usually ships in 3-6 days

0

15:2

Exmark 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

16

Exmark 126-2067-03

GUARD-MUFFLER

$60.99

$

Usually ships in 3-6 days

0

17

Exmark 103-3113

DECAL,LAZER MODEL

$11.99

$

In Stock, Qty 8

0

18

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

19

Exmark 116-0170

LH HYDRO GUARD ASM

$85.99

$

In Stock, only 3 left!

0

19:2

Exmark 116-8726

DECAL-OIL, HYDRO

$5.49

$

In Stock, Qty 20+

0

20

Exmark 116-0171

RH HYDRO GUARD ASM

$85.99

$

Usually ships in 3-6 days

0

20:2

Exmark 116-8726

DECAL-OIL, HYDRO

$5.49

$

In Stock, Qty 20+

0

21

Exmark 109-9057

GUARD-HYDRO, REAR (LH)

$23.99

$

In Stock, only 3 left!

0

22

Exmark 109-9058

GUARD-HYDRO, REAR (RH)

$25.99

$

In Stock, only 3 left!

0

33

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

34

Exmark 116-2362

DEFLECTOR-AIR FLOW

$6.49

$

Usually ships in 3-6 days

0

66

Exmark 116-3883

DECAL-X-SERIES

$7.99

$

Usually ships in 3-6 days

0

69

Exmark 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

76

Exmark 117-3864

DECAL-FUEL FILL, CE

$13.99

$

In Stock, only 1 left!

0

77

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 15

0

78

Exmark 131-8834

BUMPER

$11.99

$

Usually ships in 3-6 days

0

79

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

80

Exmark 126-4345

Decal-Patent Ttco.Com

$1.99

$

In Stock, Qty 9

0

81

Exmark 132-5075-01

WEIGHT-TOE BOARD
(Superseded to 140-4963-01)

$153.99

$

Usually ships in 3-6 days

0

82

Exmark 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

83

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
