LZX801GKA60600 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX (SN: 400000000 - 402082299) (2017) Controls Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX

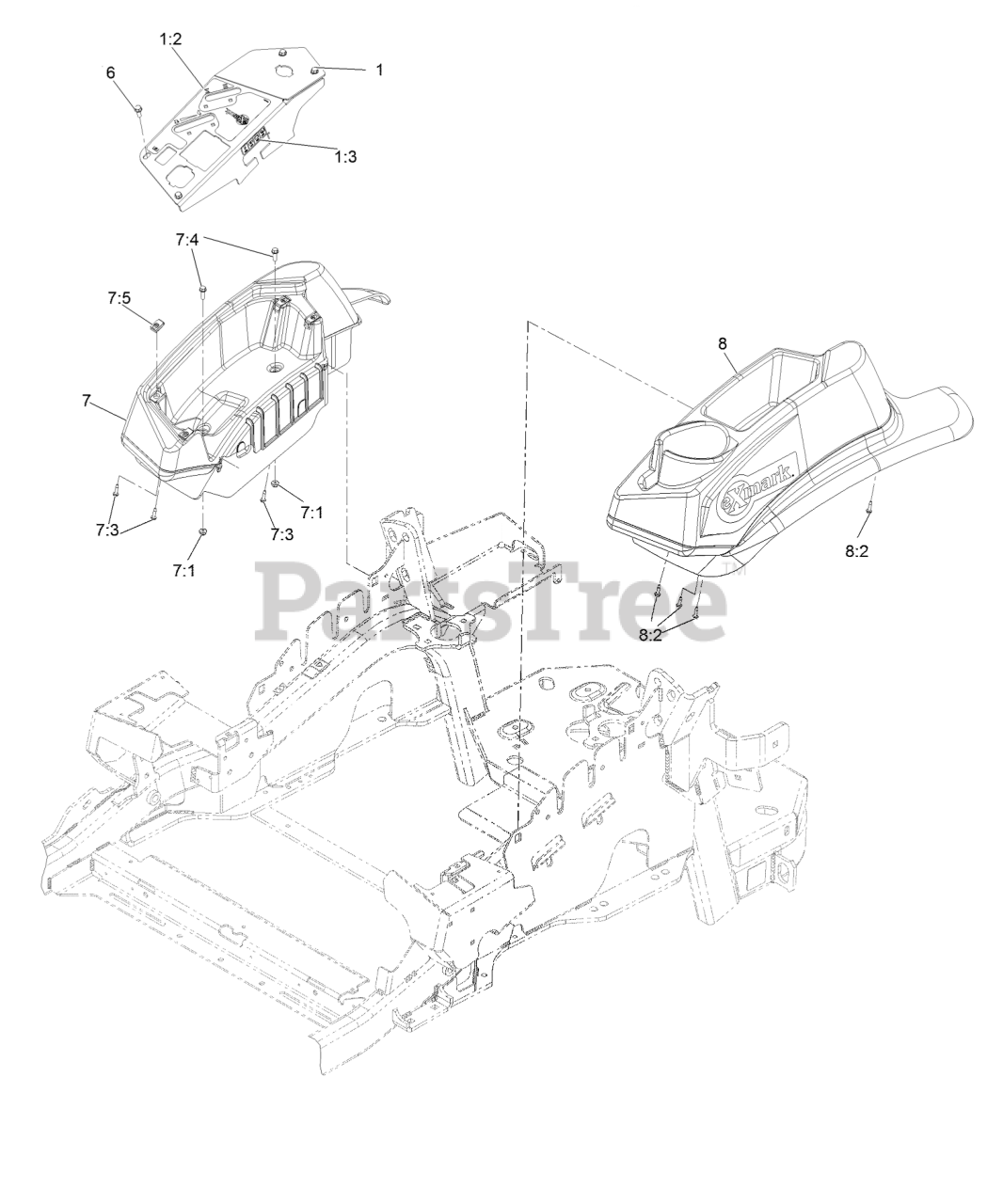

Controls Assembly Parts Diagram

  • Title

1

Exmark 109-8484

CONSOLE,PANEL W/DECAL

$105.99

$

Usually ships in 3-6 days

0

1:2

Exmark 116-8724

DECAL-CONTROL PANEL NON-E

$10.99

$

Usually ships in 3-6 days

0

1:3

Exmark 114-4466

DECAL-FUSES

$6.49

$

In Stock, only 1 left!

0

2

Exmark 109-8167

ASM, CHOKE CABLE

$54.99

$

In Stock, Qty 6

0

3

Exmark 116-1972

ASM,THROTTLE CABLE

$35.99

$

In Stock, Qty 20+

0

4

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

5

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

7

Exmark 109-9341

CONSOLE,RH NARROW ASM

$250.99

$

Usually ships in 3-6 days

0

7:1

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7:3

Exmark 109-9345

SCREW,THD FORM,HWH

$1.49

$

Usually ships in 3-6 days

0

7:4

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

7:5

Exmark 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

8

Exmark 109-9342

CONSOLE.LH NARROW ASM

$250.99

$

Usually ships in 3-6 days

0

8:2

Exmark 109-9345

SCREW,THD FORM,HWH

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0
