LZX801CKA726C1 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX (SN: 413950474 & Above) (Rev A) (2023) RH Hydro Assembly No. 135-7906 Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX

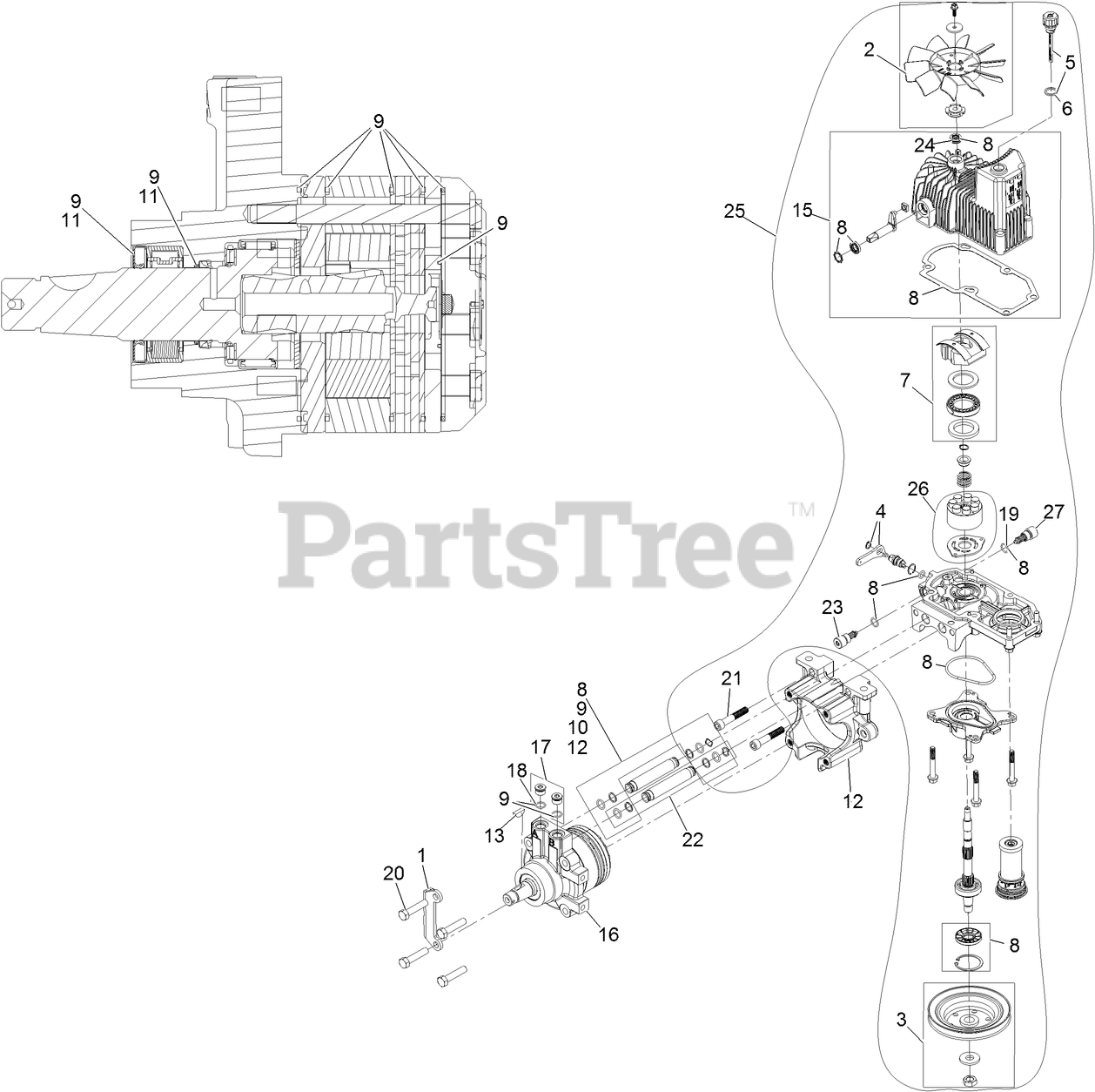

RH Hydro Assembly No. 135-7906 Parts Diagram

  • Title
1

Exmark 135-7827

Plate, Horse Shoe Mount

$31.99

$

In Stock, only 2 left!

0

2

Exmark 142-3603

Kit, 7.8 In Fan

$115.99

$

In Stock, only 4 left!

0

3

Exmark 116-0234

PULLEY KIT

$185.99

$

Usually ships in 3-6 days

0

4

Exmark 116-0235

HANDLE-BYPASS VALVE, HYDRO

$15.99

$

Usually ships in 3-6 days

0

5

Exmark 116-0236

DIPSTICK-HYDRO W/GASKET

$50.99

$

In Stock, only 4 left!

0

6

Exmark 116-0237

GASKET-DIPSTICK, HYDRO

$14.99

$

In Stock, only 2 left!

0

7

Exmark 116-1367

SWASH BLOCK KIT

$548.99

$

Usually ships in 3-6 days

0

8

Exmark 142-3604

Kit, Pump Seal

$152.99

$

In Stock, Qty 9

0

9

Exmark 116-1369

MOTOR SEAL KIT

$261.99

$

Usually ships in 3-6 days

0

10

Exmark 116-1370

TUBE SEAL KIT

$33.99

$

In Stock, only 1 left!

0

11

Exmark 116-1371

OUTPUT SHAFT SEAL KIT

$143.99

$

In Stock, only 1 left!

0

12

Exmark 116-5469

NOSE CUP-UHT

$288.99

$

In Stock, only 1 left!

0

13

Exmark 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 15

0

15

Exmark 142-4461

Kit, Housing-Hydro RH

$683.99

$

Usually ships in 3-6 days

0

16

Exmark 116-8918

MOTOR-HYDRAULIC, RH 280CC

$

$

Not available

17

Exmark 116-7901

MAGNETIC PLUGS SERVICE KIT

$96.99

$

Usually ships in 3-6 days

0

18

$4.49

$

Usually ships in 3-6 days

0

19

Exmark 116-8662

O-RING-CHECK VALVE

$2.99

$

In Stock, Qty 20+

0

20

Exmark 116-8974

SCREW HH

$5.49

$

In Stock, only 3 left!

0

21

Exmark 116-8975

SCREW-HSH

$10.99

$

In Stock, only 2 left!

0

22

Exmark 116-9922

HYDRAULIC TUBE KIT

$143.99

$

Usually ships in 3-6 days

0

23

Exmark 126-7467

SHOCK VALVE, 16CC HYDRO

$103.99

$

Usually ships in 3-6 days

0

24

Exmark 126-7711

SEAL-FAN DRIVE

$22.99

$

In Stock, Qty 6

0

25

Exmark 142-3606

Kit, Pump Section 16Cc RH

$1953.99

$

Usually ships in 3-6 days

0

26

Exmark 142-4501

Kit - 16Cc Port Plate,Rotate Grp

$495.99

$

Usually ships in 3-6 days

0

27

Exmark 142-4458

Shock Valve Orificed 3300

$85.99

$

Usually ships in 3-6 days

0

99

Exmark 116-1373

FLOW TEST KIT

Note: Not illustrated

$1127.99

$

Usually ships in 3-6 days

0

99

Exmark 116-4245

PULLER-PULLEY

$215.99

$

Usually ships in 3-6 days

0
