LZX801CKA726C1 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX (SN: 413950474 & Above) (Rev A) (2023) Fuel Tank Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX

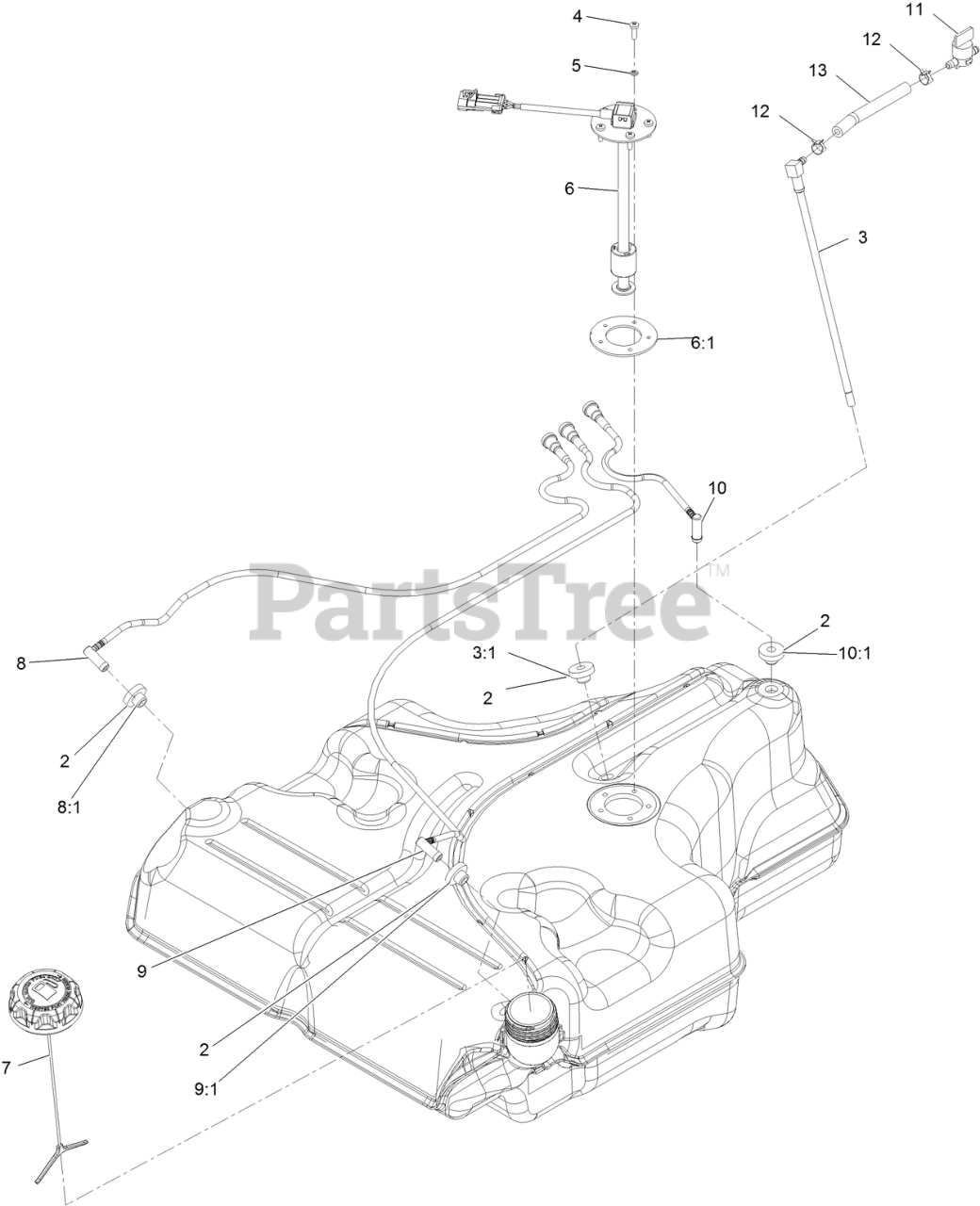

Fuel Tank Assembly Parts Diagram

  • Title

2

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

3

Exmark 116-2459

FUEL LINE KIT (WITH GROMMET)

$39.99

$

In Stock, only 2 left!

0

3:1

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

4

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

5

Exmark 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

6

Exmark 126-3913

FLOAT-SENDER, FUEL

$183.99

$

Usually ships in 3-6 days

0

6:1

Exmark 126-3950

Gasket-Sender

$6.49

$

In Stock, only 1 left!

0

7

Exmark 126-1789

CAP-FUEL, RATCHETING

$36.99

$

In Stock, only 2 left!

0

8

Exmark 116-2460

RH VENT LINE KIT (WITH GROMMET)

$41.99

$

Usually ships in 3-6 days

0

8:1

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

9

Exmark 116-2461

LH VENT LINE KIT (WITH GROMMET)

$41.99

$

Usually ships in 3-6 days

0

9:1

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

10

Exmark 116-2462

REAR VENT LINE KIT (WITH GROMMET)

$27.99

$

Usually ships in 3-6 days

0

10:1

Exmark 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

11

Exmark 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 14

0

12

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

13

Exmark 109-0650

HOSE-FUEL

$7.99

$

Usually ships in 3-6 days

0
