LZX801CKA726C1 - Exmark 72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX (SN: 404314159 - 406294344) (2019) Suspension Seat Assembly Parts Diagram

72" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX

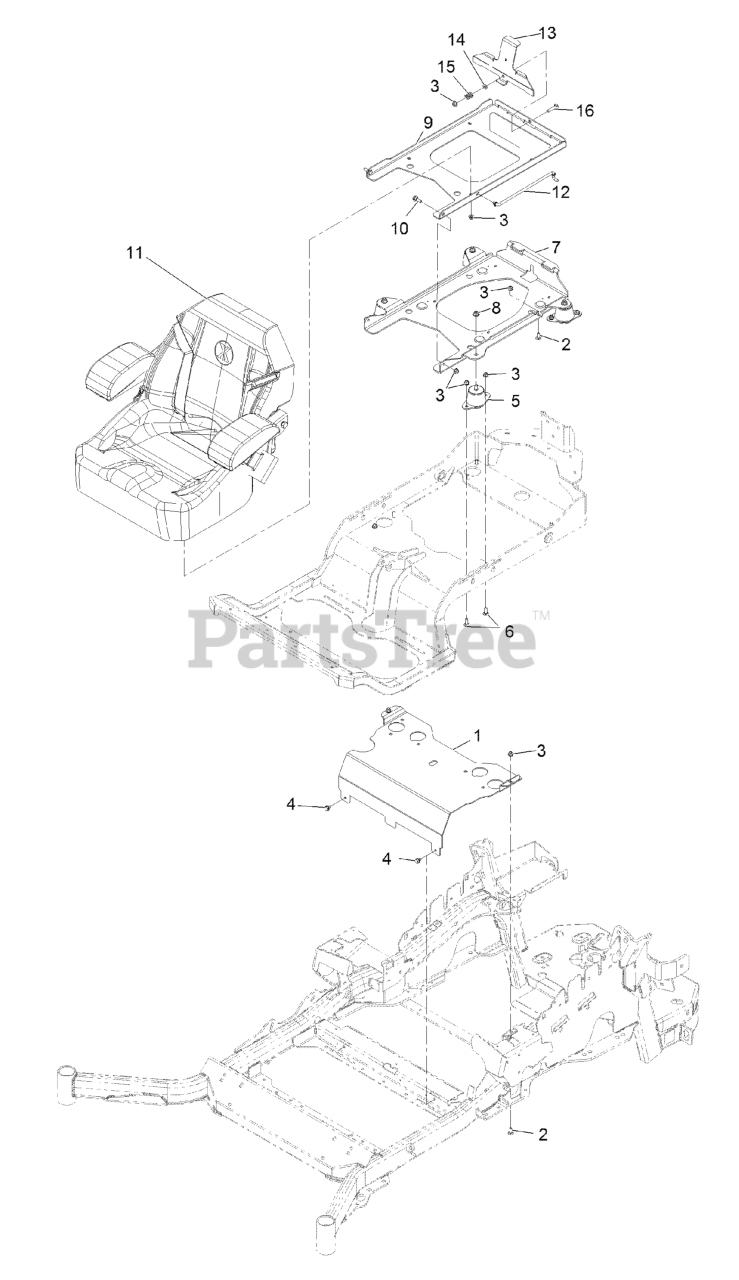

Suspension Seat Assembly Parts Diagram

  • Title

1

Exmark 116-2130-03

Panel-Front, Seat Mount
(Superseded to 116-2323)

$241.99

$

Usually ships in 3-6 days

0

2

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

4

Exmark 9266934

SCREW

$8.99

$

In Stock, only 2 left!

0

5

Exmark 109-9034

ISOLATOR-SEAT

$68.99

$

In Stock, Qty 6

0

6

Exmark 3230-10

BOLT-CARR

$3.99

$

Usually ships in 3-6 days

0

7

Exmark 131-6324-03

PLATE-SUPPORT, ISO SEAT

$212.99

$

Usually ships in 3-6 days

0

8

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 116-3859-03

PLATE-FRAME, SEAT

$126.99

$

Usually ships in 3-6 days

0

10

Exmark 116-1297

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

11

Exmark 126-5801

SEAT-EXMARK STANDARD

$1339.99

$

Usually ships in 3-6 days

0

12

Exmark 116-0070

ROD-PROP

$21.99

$

Usually ships in 3-6 days

0

13

Exmark 132-5088-03

PLATE-LATCH,SEAT

$37.99

$

Usually ships in 3-6 days

0

14

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Exmark 107-3017

SPRING-COMPRESSION

$2.99

$

In Stock, only 1 left!

0

16

Exmark 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0
