LZX801CKA606C1 - Exmark 60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX (SN: 404314159 - 406294344) (Rev B) (2019) Fuel Assembly Parts Diagram

60" Lazer Z X-Series Zero-Turn Mower, Kawasaki FX

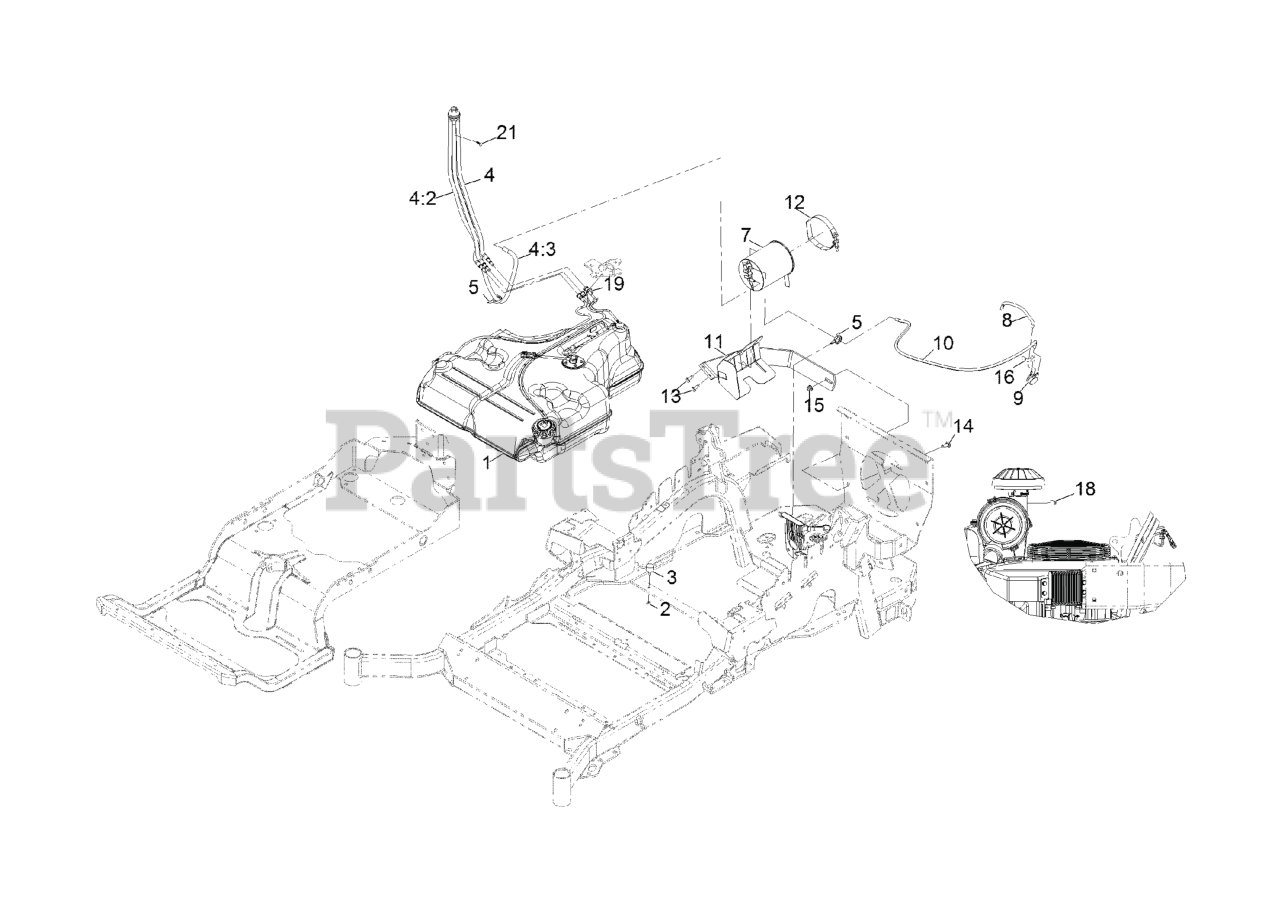

Fuel Assembly Parts Diagram

  • Title

1

Exmark 135-0643

FUEL TANK ASM

$775.99

$

Usually ships in 3-6 days

0

2

Exmark 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

3

Exmark 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

4

Exmark 127-0583

FUEL MANIFOLD VENT ASM

$70.99

$

Usually ships in 3-6 days

0

4:2

Exmark 109-0302

HOSE-FUEL

$12.99

$

In Stock, only 2 left!

0

4:3

Exmark 108-5376

HOSE-FUEL

$43.99

$

In Stock, only 1 left!

0

5

Exmark 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

7

Exmark 116-1442

CANISTER-CARBON, 1200CC

$160.99

$

Usually ships in 3-6 days

0

8

Exmark 135-3415

HOSE-VENT,FORMED

$9.49

$

Usually ships in 3-6 days

0

9

Exmark 116-2232

VALVE-CONTROL, VACUUM

$33.99

$

In Stock, only 3 left!

0

10

Exmark 135-3417

HOSE,VENT,FORMED

$15.99

$

Usually ships in 3-6 days

0

11

Exmark 116-1433-03

MOUNT-CANISTER

$213.99

$

Usually ships in 3-6 days

0

12

Exmark 116-2228

CLAMP, T-BOLT

$46.99

$

Usually ships in 3-6 days

0

13

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

14

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

15

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 119-8502

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

18

Exmark 116-4464

PLUG-PORT

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 116-6005

RETAINER-LINE, VAPOR

$5.49

$

Usually ships in 3-6 days

0

21

Exmark 125-8067

PLUG-PLASTIC

$0.99

$

Usually ships in 3-6 days

0
